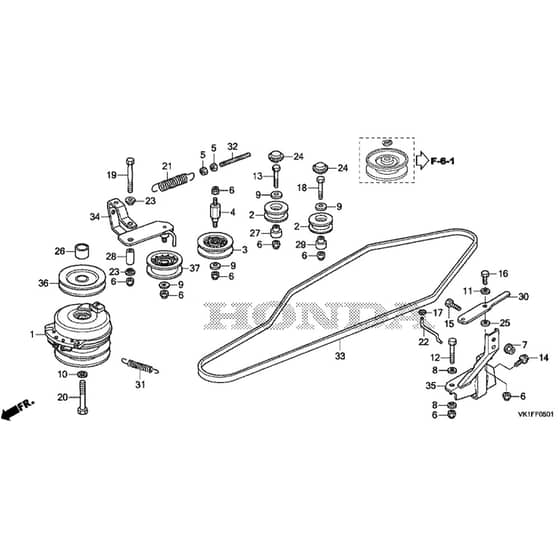

Honda HF2315K3-HME Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80691-VK1-003 Available to backorder	Clutch	£650.40 £542.00
2	HP22520-VK1-003 In stock	Tension Roller	£28.92 £24.10
3	HP76195-VK1-F01 Available to backorder	Idler Pulley	£64.54 £53.78
4	HP76196-VK1-F01 Available to backorder	Idler Pulley Pin	£19.08 £15.90
5	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
6	HP80104-VK1-003 Available to backorder	Nut	£0.92 £0.77
7	HP80016-Y09-003 Available to backorder	Nut	£8.22 £6.85
9	HP80035-Y09-003 Available to backorder	Washer	£1.58 £1.32
10	HP80042-Y09-003 Available to backorder	Washer	£3.40 £2.83
11	HP80057-Y10-003 Available to backorder	Elastic Washer	£2.17 £1.81
12	HP80059-Y09-003 Available to backorder	Screw R H	£5.95 £4.96
13	HP80060-Y09-003 Available to backorder	Screw	£5.12 £4.27
14	HP80132-VK1-003 Available to backorder	Self Tapping Screw 6 X 16	£2.81 £2.34
15	HP80099-Y09-003 Available to backorder	Screw	£3.40 £2.83
16	HP80101-Y09-003 Available to backorder	Screw	£5.28 £4.40
17	HP80119-VK1-003 Available to backorder	Special Washer	£0.30 £0.25
18	HP80123-VK1-003 Available to backorder	Bolt 8 X 40	£1.80 £1.50
19	HP80124-VK1-003 Available to backorder	Bolt 8 X 75	£1.25 £1.04
20	HP80140-VK1-003 Available to backorder	Bolt	£9.04 £7.53
21	HP80216-Y09-003 Available to backorder	Spring	£26.05 £21.71
22	HP80218-VK1-003 Available to backorder	Rod	£3.01 £2.51
23	HP80229-VK1-003 Available to backorder	Bush	£1.52 £1.27
24	HP80249-VK1-003 Available to backorder	Cover	£4.34 £3.62
25	HP80267-Y09-003 Available to backorder	Washer	£3.40 £2.83
26	HP80271-VK1-013 Available to backorder	Spacer	£11.39 £9.49
27	HP80273-VK1-003 Available to backorder	Spacer	£14.41 £12.01
28	HP80275-VK1-003 Available to backorder	Spacer	£4.78 £3.98
30	HP80293-VK1-003 Available to backorder	Shift Lever	£3.68 £3.07
31	HP80317-VK1-003 In stock	Spring	£5.17 £4.31
32	HP80453-VK1-003 Available to backorder	Tie Rod	£3.44 £2.87
33	HP80477-VK1-003 In stock	Belt	£74.30 £61.92
34	HP80551-VK1-003 Available to backorder	Shift Lever	£30.48 £25.40
35	HP80586-VK1-003 Available to backorder	Support	£29.22 £24.35
36	HP80699-VK1-003 Available to backorder	Pulley	£69.48 £57.90
37	HP22466-VK1-F01 Available to backorder	Tension Roller	£66.54 £55.45
