Honda HF2315K3-HME - Cutting Housing Diagram

Description

Honda HF2315K3-HME Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80003-Y09-003 In stock	Key	£10.48 £8.73
2	HP80025-Y09-003 Available to backorder	Rivet	£1.97 £1.64
3	HP80079-Y09-003 In stock	Screw	£0.62 £0.52
4	HP80103-Y09-003 Available to backorder	Screw	£1.32 £1.10
5	HP80107-VK1-003 Available to backorder	Special Nut 8Mm	£0.96 £0.80
7	HP80138-VK1-003 In stock	Flange Bolt 3/8 X 1-1/2 D	£1.68 £1.40
8	HP80139-VK1-003 In stock	Flange Bolt 3/8 X 1-1/2 S	£1.72 £1.43
9	HP80675-VK1-003 Available to backorder	Tube Connector	£0.65 £0.54
10	HP80225-Y09-003 In stock	Blade Hub	£14.98 £12.48
13	HP80262-VK1-003 In stock	Lock Pin 10Mm	£2.78 £2.32
14	HP80279-VK1-003 In stock	Dust Cover	£7.34 £6.12
15	HP80342-VK1-003 Available to backorder	Special Screw 8Mm	£8.14 £6.78
16	HP80689-VK1-003 Available to backorder	Pulley	£85.87 £71.56
17	HP76210-VK1-F01 Available to backorder	Blade Shaft Assy	£232.54 £193.78
18	HP76200-VK1-F01 Available to backorder	Blade Shaft Assy	£169.13 £140.94
19	HP80052-Y09-003 Available to backorder	External Circlip	£1.78 £1.48
20	HP80736-VK1-003 Available to backorder	Bearing	£30.04 £25.03
21	HP80156-Y09-003 Available to backorder	Shaft	£52.81 £44.01
22	HP80157-Y09-003 Available to backorder	Shaft	£52.82 £44.02
23	HP80197-Y09-003 Available to backorder	Dust Cover	£3.29 £2.74
24	HP80199-Y09-003 Available to backorder	Flange	£59.40 £49.50
25	HP80422-VK1-003 Available to backorder	Bracket	£7.73 £6.44
26	HP80503-VK1-003 Available to backorder	Rod	£34.43 £28.69

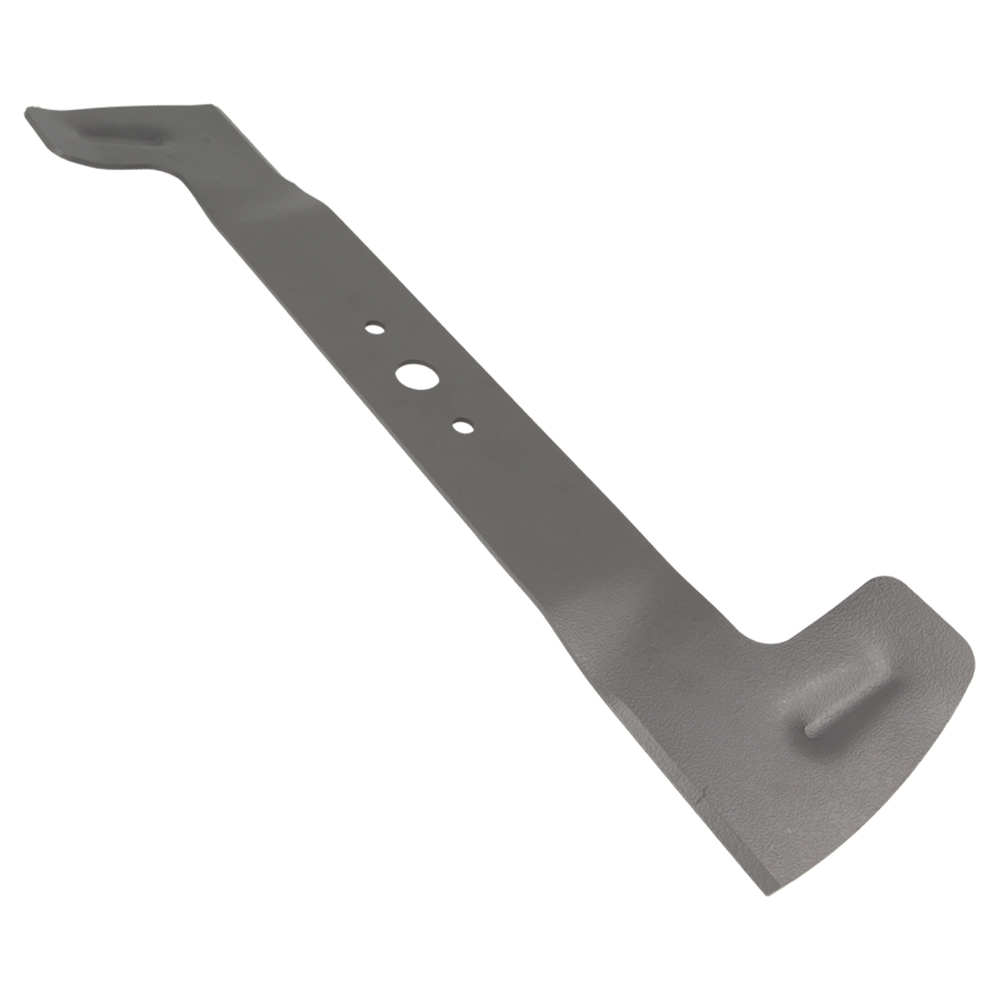

27	HP80394-Y09-003 In stock	Blade L H	£23.29 £19.41

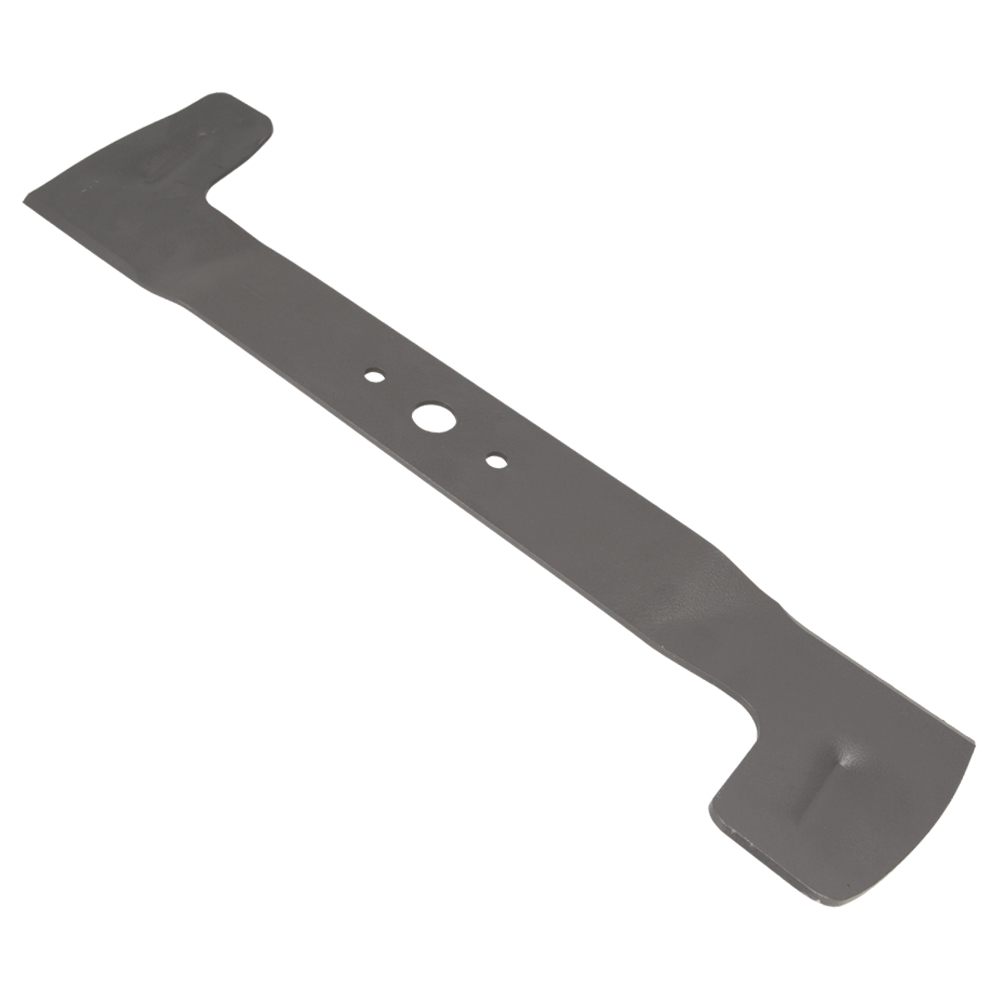

28	HP80395-Y09-003 In stock	Blade R H	£23.29 £19.41

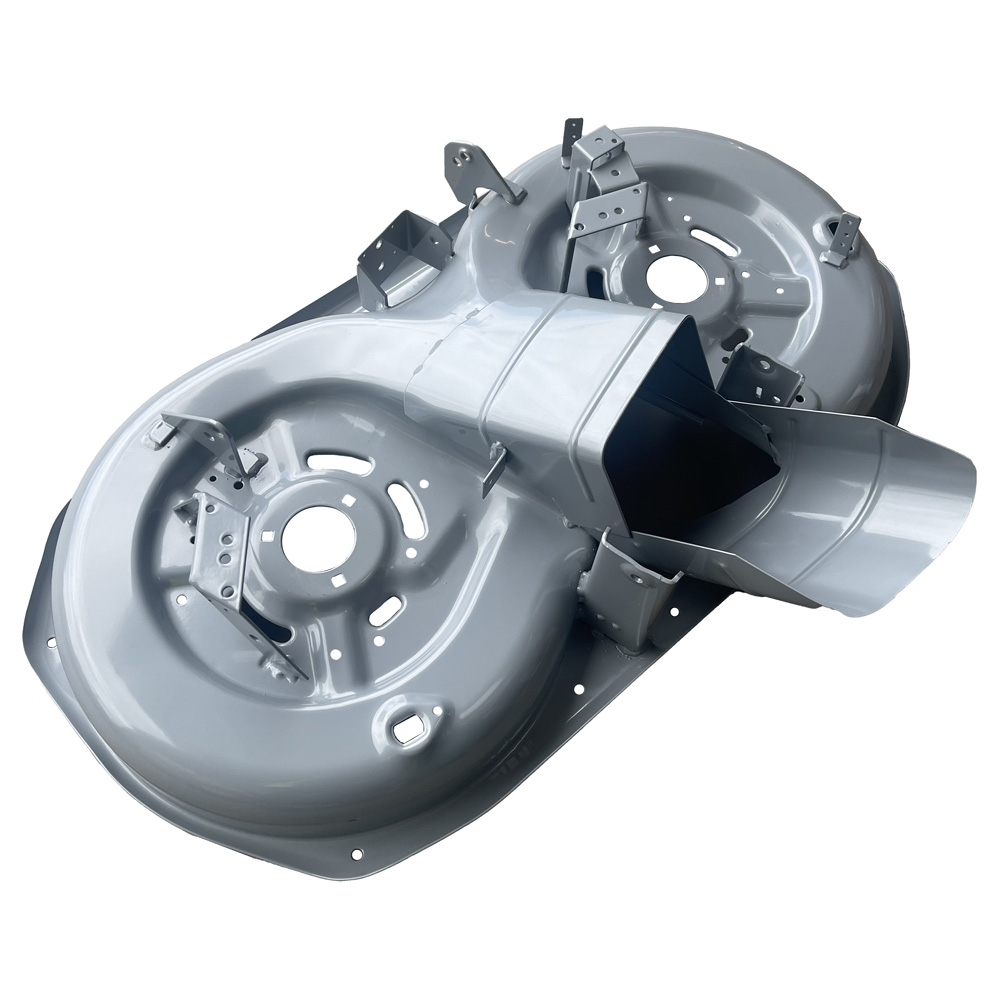

29	HP80697-VK1-013 Available to backorder	Mower Housing	£718.92 £599.10
30	HP80566-VK1-013 Available to backorder	Deck Assy	£798.00 £665.00
31	HP80005-Y09-003 In stock	Key	£1.76 £1.47
32	HP80101-Y09-003 Available to backorder	Screw	£5.28 £4.40
33	HP80045-Y09-003 Available to backorder	Washer	£1.55 £1.29
34	HP80265-Y09-003 Available to backorder	Washer	£3.66 £3.05
35	HP80104-VK1-003 Available to backorder	Flange Nut 8Mm	£0.92 £0.77
36	HP80402-VK1-003 Available to backorder	Plain Washer 10Mm	£1.66 £1.38
37	HP80035-Y09-003 Available to backorder	Washer	£1.58 £1.32
38	HP80011-Y09-003 Available to backorder	Nut M10	£1.08 £0.90
39	HP72518-VK1-A10 In stock	Discharge Fan Assy	£58.32 £48.60
40	HP72519-VK1-A10 In stock	Discharge Fan Assy	£58.32 £48.60
41	HP72621-VK1-A10 Available to backorder	Blade Holder	£11.56 £9.63
42	HP76165-VK1-003 Available to backorder	Fan Guide	£47.56 £39.63
44	HP80006-VF4-003 Available to backorder	Screw	£2.02 £1.68
45	HP80016-Y09-003 Available to backorder	Nut	£8.22 £6.85
46	HP80099-Y09-003 Available to backorder	Screw	£3.40 £2.83
47	HP80682-VK1-003 Available to backorder	Screw	£3.08 £2.57
48	HP80698-VK1-013 Available to backorder	Reinforcement	£13.52 £11.27
49	HP80029-Y09-003 Available to backorder	Washer	£3.96 £3.30
50	HP76310-VK1-305 Available to backorder	Chuter	£102.25 £85.21
