Honda HF2315K2-SBE - Harness Diagram

Name: Honda HF2315K2-SBE - Harness Diagram
SKU: hf2315k2_sbe_harness-group
Price: 1.09 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Honda HF2315K2-SBE Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HP31750-Z0A-821 Available to backorder	Regulator Rectifier	£174.36 £145.30
3	HP32100-VK1-F01 Available to backorder	Main Wire Harness Assy	£462.67 £385.56
6	HP80123-Y09-003 Available to backorder	Screwed Ring Nut	£14.00 £11.67
7	HP80126-Y09-003 Available to backorder	Ignition Switch	£82.44 £68.70
8	HP80130-Y09-003 Available to backorder	Screwed Ring Protection	£3.36 £2.80
9	HP80136-Y09-003 Available to backorder	Micro Switch	£56.32 £46.93
10	HP80184-VK1-003 Available to backorder	Key	£4.99 £4.16

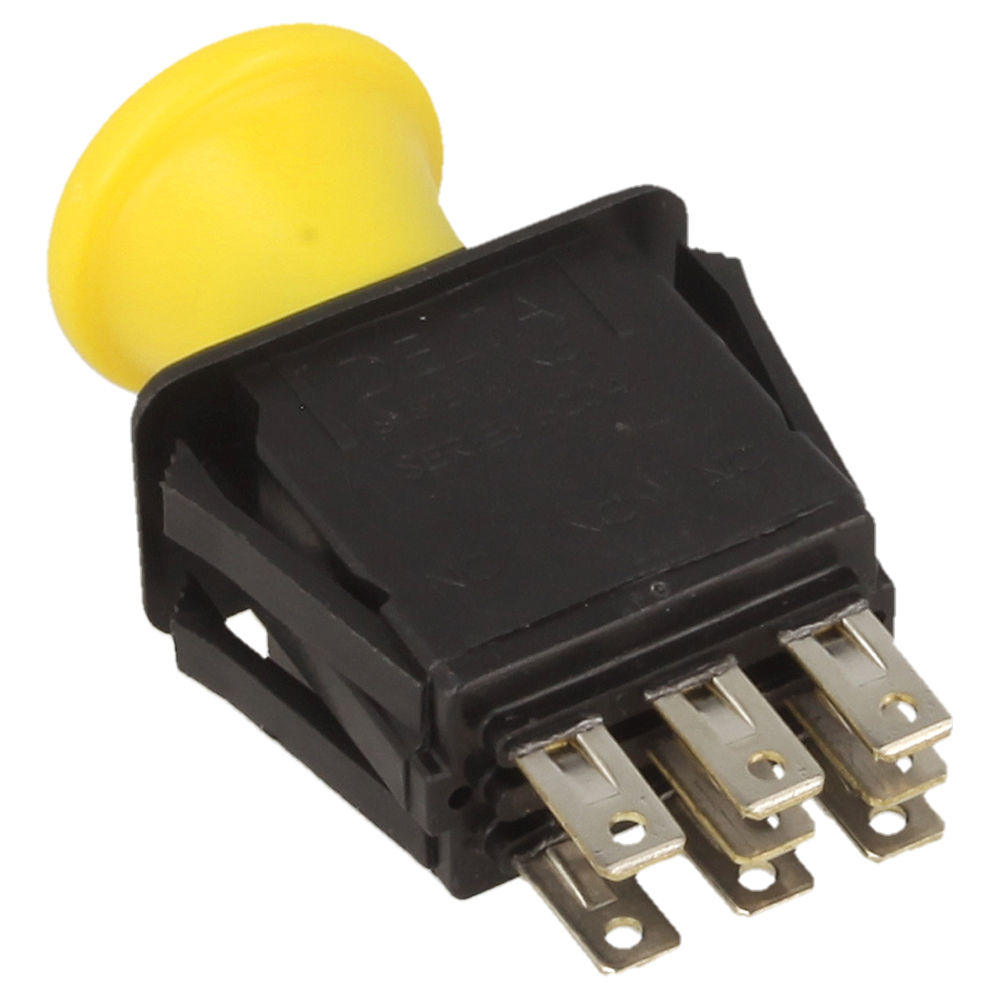

11	HP80196-VK1-003 Available to backorder	Clutch Switch Assy	£106.00 £88.33
12	HP80198-VK1-003 Available to backorder	Protector	£13.18 £10.98
16	HP80302-Y09-003 Available to backorder	Fuse 15 Amp	£1.43 £1.19
17	HP80457-VK1-013 Available to backorder	Band	£17.33 £14.44
18	HP80475-VK1-003 Available to backorder	Blade Fuse	£2.17 £1.81
19	HP80476-VK1-003 Available to backorder	Relay	£22.92 £19.10
20	HP80602-VK1-003 Available to backorder	Screw	£4.02 £3.35
20	HP80621-VK1-003 Available to backorder	Screw	£2.12 £1.77
21	HP80660-VK1-003 Available to backorder	Carrier Fuse	£13.34 £11.12
22	HP80661-VK1-003 Available to backorder	Cover	£9.53 £7.94

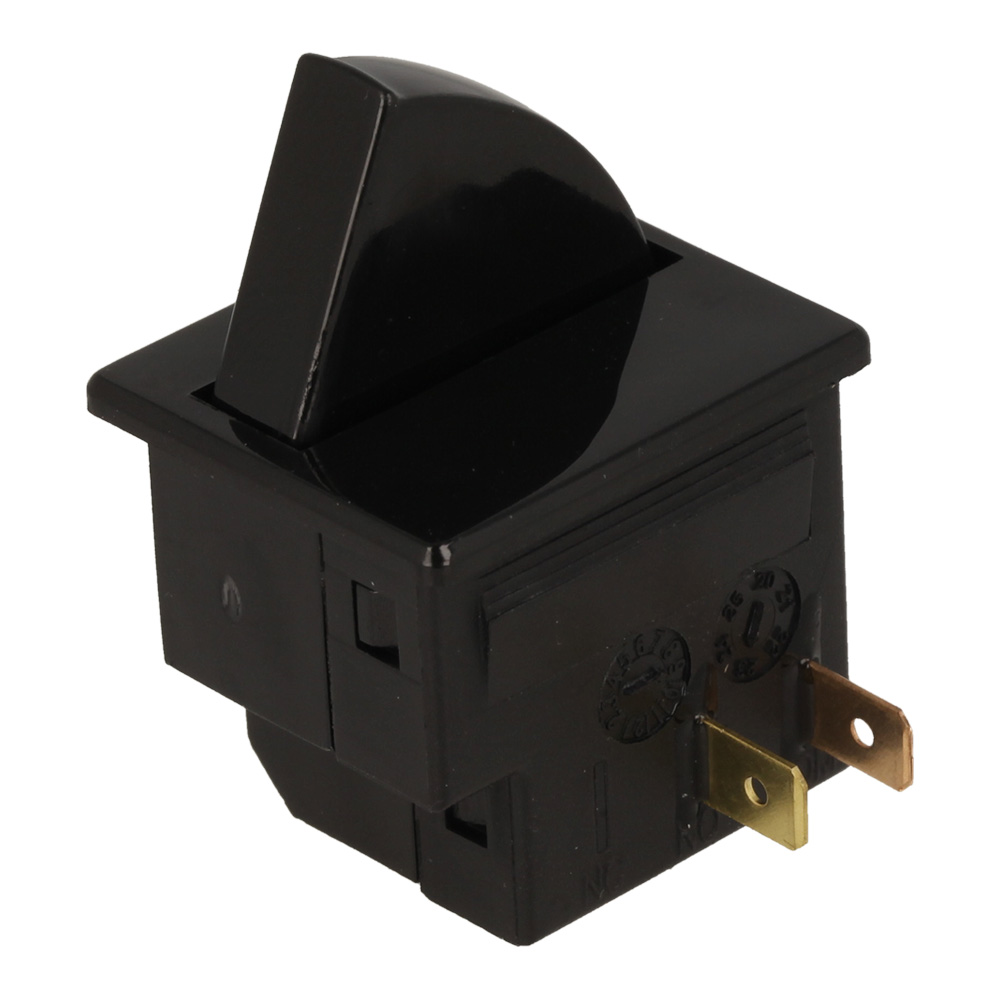

23	HP80725-VK1-003 Available to backorder	Micro	£13.24 £11.03
24	HP80541-VK1-003 Available to backorder	Battery Charger	£94.44 £78.70
25	HP80301-Y09-003 Available to backorder	Clamp	£2.17 £1.81
32	HP80136-VK1-003 Available to backorder	Self Tapping Screw 6 X 16	£1.31 £1.09
33	HP80729-VK1-003 Available to backorder	Band	£1.52 £1.27
34	HP06319-VK1-F00 Available to backorder	Battery Kit	£168.84 £140.70

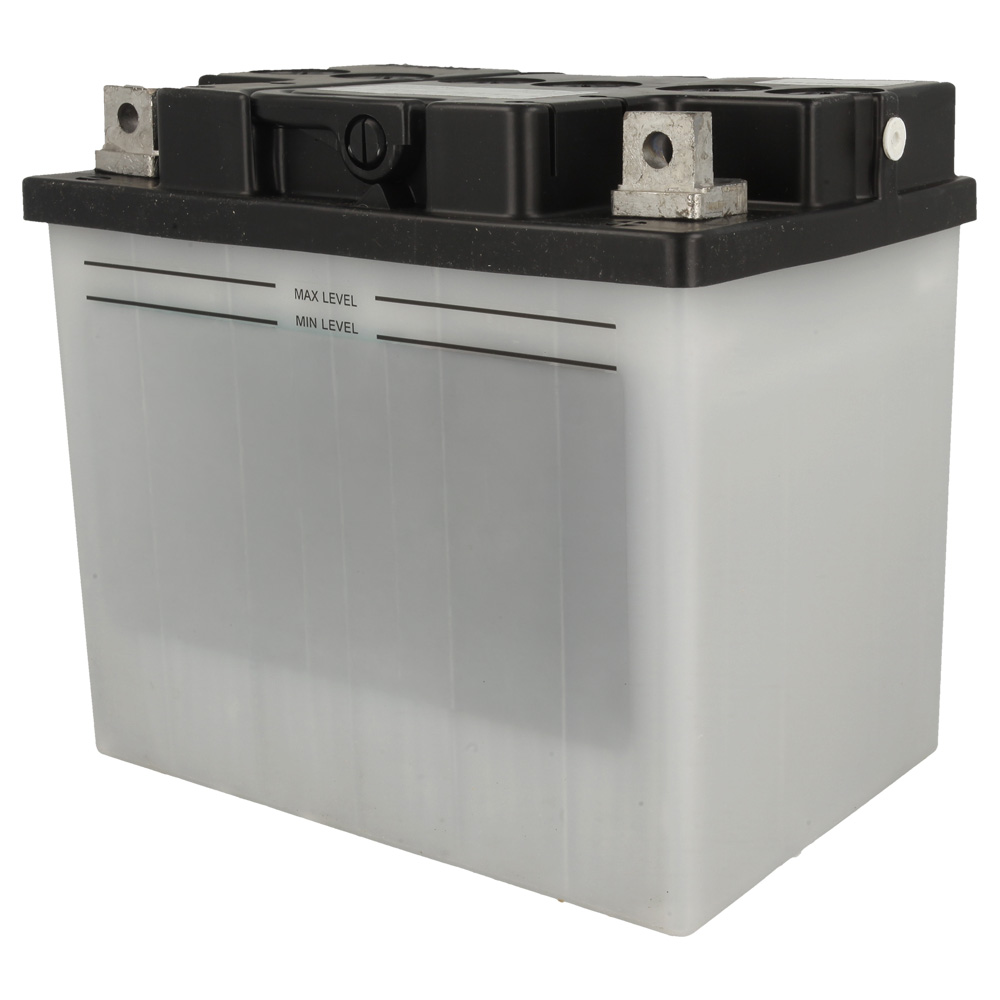

35	HP31500-VK1-F02 Available to backorder	Battery	£192.96 £160.80
36	HP32410-VK1-F01 Available to backorder	Battery Starter Cable	£36.56 £30.47
37	HP32600-VK1-F01 Available to backorder	Battery Cable	£14.17 £11.81
38	HP80300-Y09-003 Available to backorder	Clamp	£2.17 £1.81
