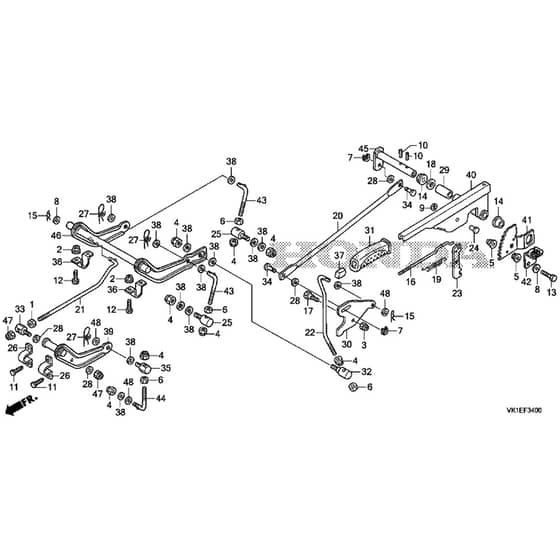

Honda HF2315K2-SBE Ride On Mower Parts Diagram

	Part No.	Details
1	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
2	HP80014-Y09-003 Available to backorder	Nut M6	£2.96 £2.47
3	HP80010-Y09-003 Available to backorder	Nut	£3.48 £2.90
4	HP80011-Y09-003 Available to backorder	Nut M10	£1.12 £0.93
5	HP80016-Y09-003 In stock	Nut	£9.25 £7.71
6	HP80017-Y09-003 Available to backorder	Nut	£2.81 £2.34
7	HP80023-Y09-003 In stock	Plate	£2.96 £2.47
9	HP80049-Y09-003 Available to backorder	Clip	£0.62 £0.52
10	HP80054-Y09-003 Available to backorder	Pin	£3.44 £2.87
11	HP80074-Y09-003 Available to backorder	Screw	£4.80 £4.00
12	HP80093-Y09-003 Available to backorder	Screw	£2.76 £2.30
13	HP80146-VK1-003 Available to backorder	Bolt 8 X 25	£1.67 £1.39
14	HP80140-Y09-003 Available to backorder	Bush	£6.10 £5.08
15	HP80211-VK1-003 In stock	Lock Pin 12Mm	£0.86 £0.72
16	HP80160-Y09-003 Available to backorder	Rod	£13.58 £11.32
17	HP80208-VK1-003 Available to backorder	Special Screw 8 X 20	£4.80 £4.00
18	HP80209-VK1-003 Available to backorder	Plain Washer 20Mm	£2.33 £1.94
19	HPCG254-302-08H1 Available to backorder	Spring	£4.28 £3.57
20	HP80223-VK1-003 Available to backorder	Rod	£13.80 £11.50
21	HP80225-VK1-003 Available to backorder	Rod	£20.77 £17.31
22	HP80226-VK1-003 Available to backorder	Rod	£35.81 £29.84
23	HP80226-Y09-003 Available to backorder	Dog	£13.12 £10.93
24	HP80227-Y09-003 Available to backorder	Pin	£9.55 £7.96
25	HP80229-Y09-003 Available to backorder	Pin	£16.63 £13.86
26	HP80243-Y09-003 Available to backorder	Plate L H	£12.89 £10.74
27	HP80262-VK1-003 In stock	Lock Pin 10Mm	£2.99 £2.49
28	HP80267-Y09-003 Available to backorder	Washer	£4.32 £3.60
29	HP80274-VK1-003 Available to backorder	Spacer	£8.28 £6.90
30	HP80297-VK1-003 Available to backorder	Steering Shaft	£4.62 £3.85
31	HP80302-VK1-003 Available to backorder	Knob	£5.89 £4.91
32	HP80335-VK1-003 Available to backorder	Pin	£7.61 £6.34
33	HP80340-VK1-003 Available to backorder	Pin	£5.66 £4.72
34	HP80343-VK1-003 Available to backorder	Pin	£4.91 £4.09
35	HP80353-VK1-003 In stock	Pin	£12.85 £10.71
36	HP80362-VK1-003 Available to backorder	Plate	£15.79 £13.16
37	HP80397-VK1-003 Available to backorder	Button	£4.98 £4.15
38	HP80402-VK1-003 Available to backorder	Plain Washer 10Mm	£1.61 £1.34
39	HP80413-Y09-003 Available to backorder	Lever	£111.00 £92.50
40	HP80414-Y09-003 Available to backorder	Lever	£53.98 £44.98
41	HP80417-VK1-003 Available to backorder	Steering Shaft	£15.26 £12.72
42	HP80446-VK1-003 Available to backorder	Support	£2.77 £2.31
43	HP80455-VK1-013 Available to backorder	Tie Rod	£36.54 £30.45
44	HP80458-VK1-003 Available to backorder	Tie Rod	£27.94 £23.28
45	HP80507-VK1-003 Available to backorder	Rod	£29.66 £24.72
46	HP80508-VK1-003 Available to backorder	Rod	£44.66 £37.22
47	HP80104-VK1-003 In stock	Nut	£0.98 £0.82
48	HP80029-Y09-003 Available to backorder	Washer	£4.03 £3.36
