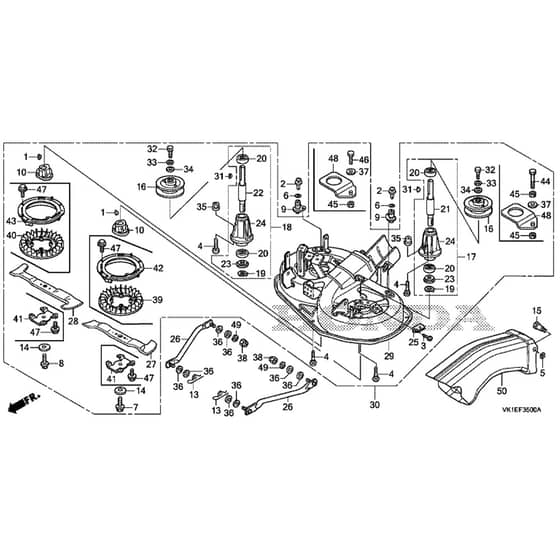

Honda HF2315K2-SBE - Cutting Housing Diagram

Name: Honda HF2315K2-SBE - Cutting Housing Diagram
SKU: hf2315k2_sbe_cutting_housing-group
Price: 0.52 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HF2315K2-SBE - Cutting Housing Diagram

Description

Honda HF2315K2-SBE Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80003-Y09-003 In stock	Key	£10.48 £8.73
2	HP80025-Y09-003 Available to backorder	Rivet	£1.97 £1.64
3	HP80079-Y09-003 In stock	Screw	£0.62 £0.52
4	HP80103-Y09-003 Available to backorder	Screw	£1.32 £1.10
5	HP80107-VK1-003 Available to backorder	Special Nut 8Mm	£0.96 £0.80
6	HP80133-Y09-003 Available to backorder	O Ring	£5.59 £4.66
7	HP80138-VK1-003 In stock	Flange Bolt 3/8 X 1-1/2 D	£1.68 £1.40
8	HP80139-VK1-003 In stock	Flange Bolt 3/8 X 1-1/2 S	£1.72 £1.43
9	HP80166-Y09-003 Available to backorder	Water Hose Connector	£1.38 £1.15
10	HP80225-Y09-003 In stock	Blade Hub	£14.98 £12.48
13	HP80262-VK1-003 In stock	Lock Pin 10Mm	£2.78 £2.32
14	HP80279-VK1-003 In stock	Dust Cover	£7.34 £6.12
15	HP80342-VK1-003 Available to backorder	Special Screw 8Mm	£8.14 £6.78
16	HP80689-VK1-003 Available to backorder	Pulley	£85.87 £71.56
17	HP76210-VK1-F01 Available to backorder	Blade Shaft Assy	£232.54 £193.78
18	HP76200-VK1-F01 Available to backorder	Blade Shaft Assy	£169.13 £140.94
19	HP80052-Y09-003 Available to backorder	External Circlip	£1.78 £1.48
20	HP80736-VK1-003 Available to backorder	Bearing	£30.04 £25.03

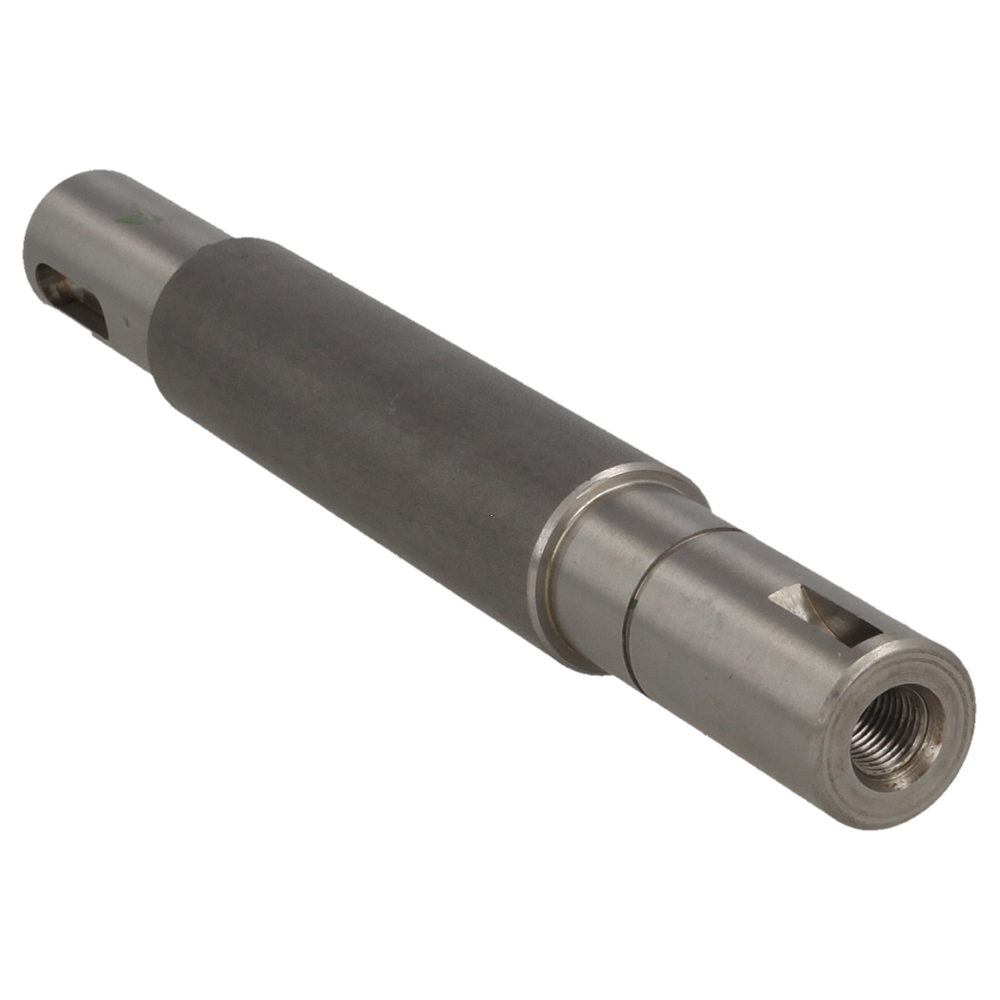

21	HP80156-Y09-003 Available to backorder	Shaft	£52.81 £44.01
22	HP80157-Y09-003 Available to backorder	Shaft	£52.82 £44.02
23	HP80197-Y09-003 Available to backorder	Dust Cover	£3.29 £2.74
24	HP80199-Y09-003 Available to backorder	Flange	£59.40 £49.50
25	HP80422-VK1-003 Available to backorder	Bracket	£7.73 £6.44
26	HP80503-VK1-003 Available to backorder	Rod	£34.43 £28.69
27	HP80519-VK1-003 Available to backorder	Blade L H	£37.55 £31.29
28	HP80520-VK1-003 Available to backorder	Blade R H	£37.55 £31.29
29	HP80710-VK1-003 Available to backorder	Cutter Housing	£559.58 £466.32
30	HP80709-VK1-003 Available to backorder	Cutter Housing	£2,086.39 £1,738.66

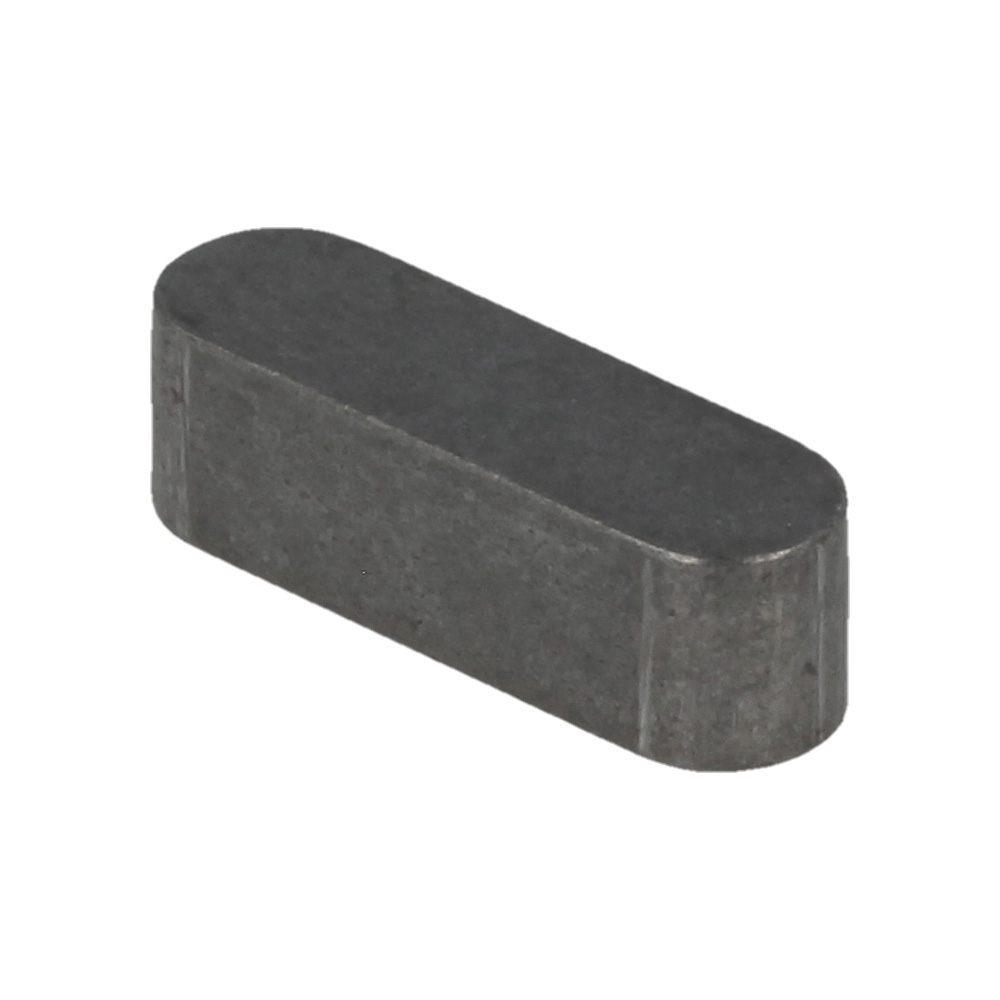

31	HP80005-Y09-003 In stock	Key	£1.76 £1.47
32	HP80101-Y09-003 Available to backorder	Screw	£5.28 £4.40
33	HP80045-Y09-003 Available to backorder	Washer	£1.55 £1.29

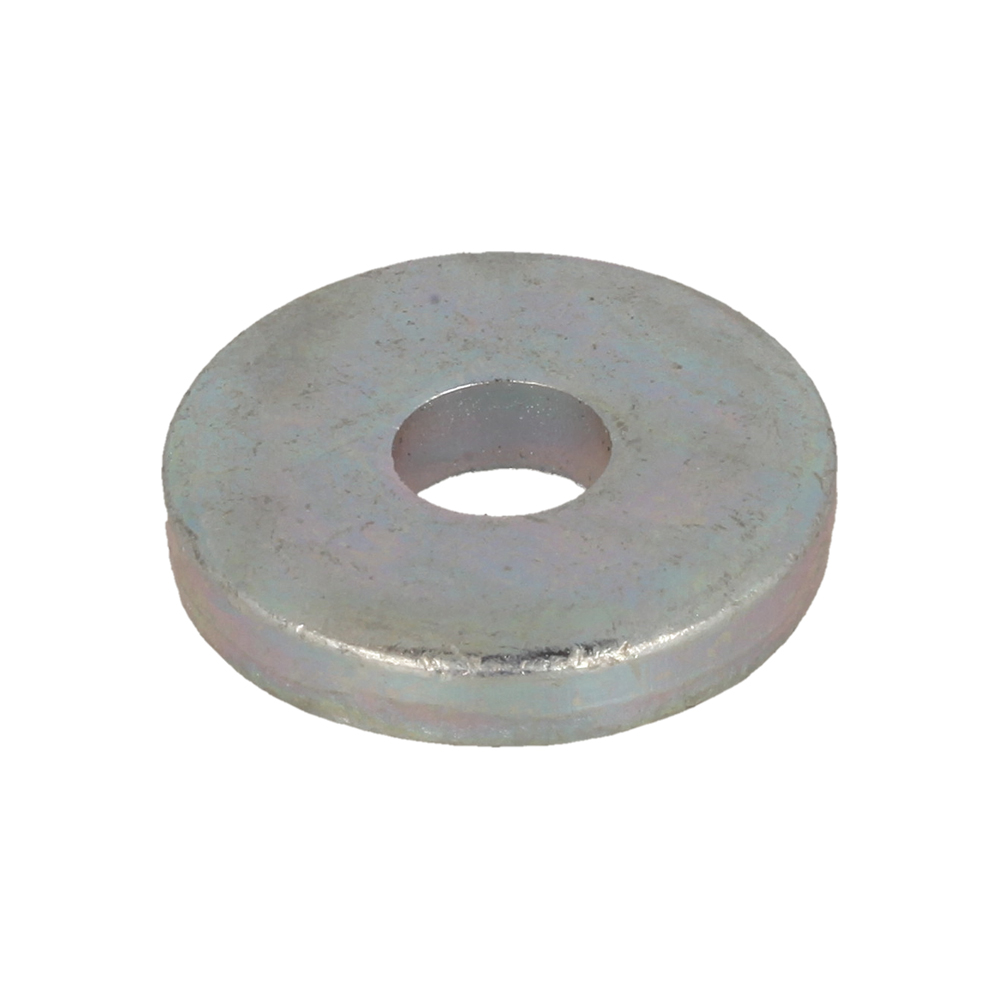

34	HP80265-Y09-003 Available to backorder	Washer	£3.66 £3.05
35	HP80104-VK1-003 Available to backorder	Flange Nut 8Mm	£0.92 £0.77
36	HP80402-VK1-003 Available to backorder	Plain Washer 10Mm	£1.66 £1.38
38	HP80011-Y09-003 Available to backorder	Nut M10	£1.08 £0.90
49	HP80029-Y09-003 Available to backorder	Washer	£3.96 £3.30

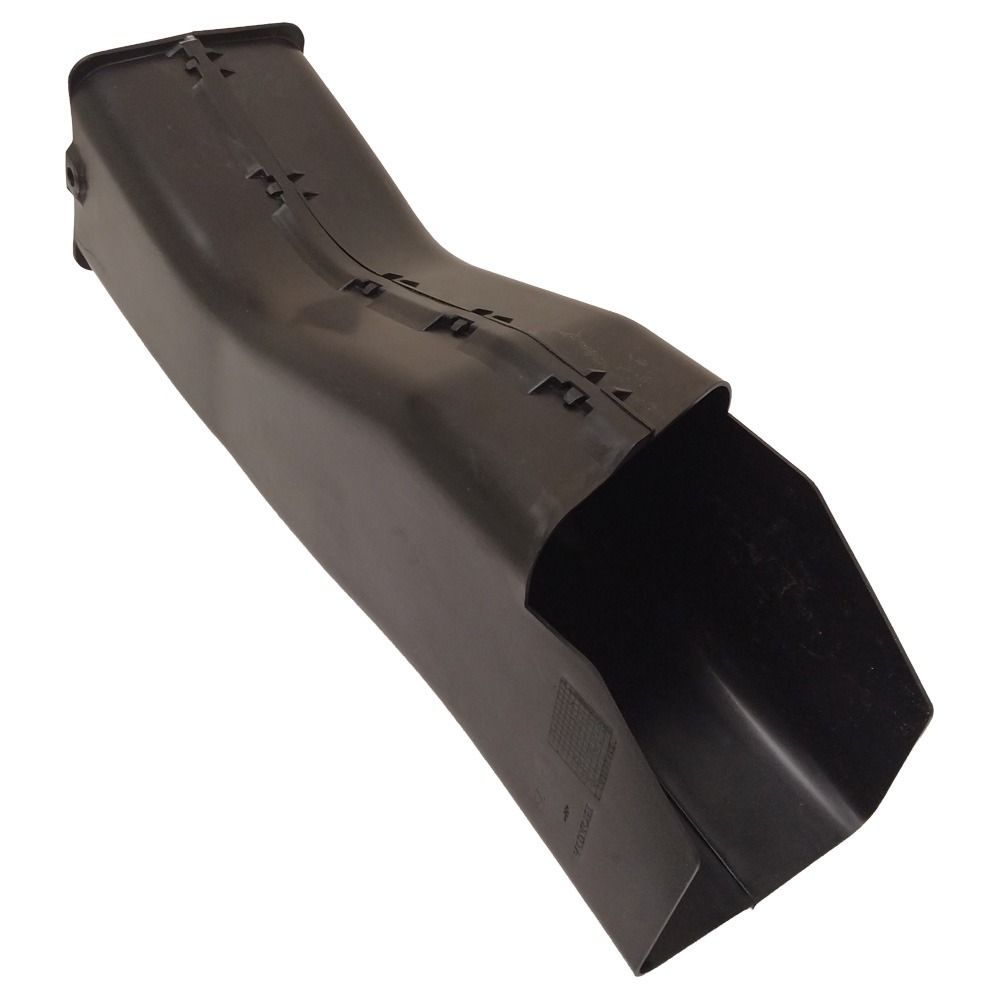

50	HP80245-VK1-305 Available to backorder	Chuter	£162.12 £135.10
