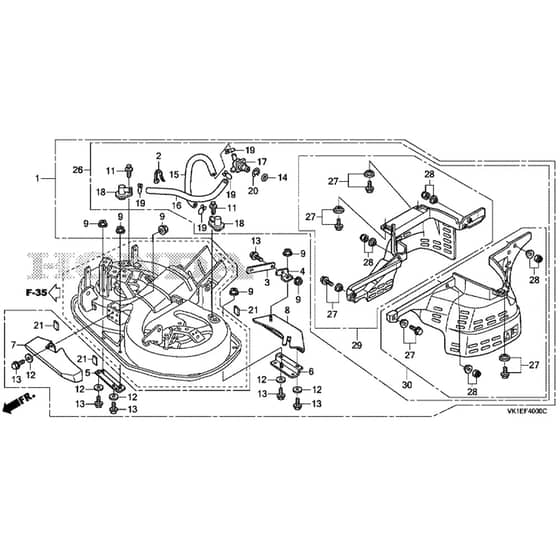

Honda HF2315K2-SBE - Belt Cover Diagram

Description

Honda HF2315K2-SBE Ride On Mower Parts Diagram

	Part No.	Details
2	HP32901-VK7-000 Available to backorder	Cable Tie	£6.30 £5.25
5	HP76520-VK1-003 Available to backorder	Cover Bracket	£8.02 £6.68
6	HP76530-VK1-003 Available to backorder	Cover Bracket	£86.10 £71.75
9	HP80104-VK1-003 Available to backorder	Nut	£0.92 £0.77
11	HP80025-Y09-003 Available to backorder	Rivet	£1.97 £1.64
13	HP80101-Y09-003 Available to backorder	Screw	£5.28 £4.40
14	HP80133-Y09-003 Available to backorder	O Ring	£5.59 £4.66
15	HP80672-VK1-003 Available to backorder	Tube	£16.76 £13.97
16	HP80673-VK1-003 Available to backorder	Tube	£38.96 £32.47
17	HP80674-VK1-003 Available to backorder	Tube Splitter	£7.28 £6.07
18	HP80675-VK1-003 Available to backorder	Tube Connector	£0.65 £0.54
19	HP80676-VK1-003 Available to backorder	Tube Clip	£6.94 £5.78
20	HP80677-VK1-003 Available to backorder	E-Ring	£5.76 £4.80
27	HP90101-VK1-F21 Available to backorder	Retaining Screw Set	£16.76 £13.97
28	HP90301-VK1-F21 Available to backorder	Retaining Nut Set	£20.18 £16.82
29	HP76150-VK1-F22 Available to backorder	Belt Cover	£112.60 £93.83
30	HP76160-VK1-F22 Available to backorder	Belt Cover	£112.60 £93.83
