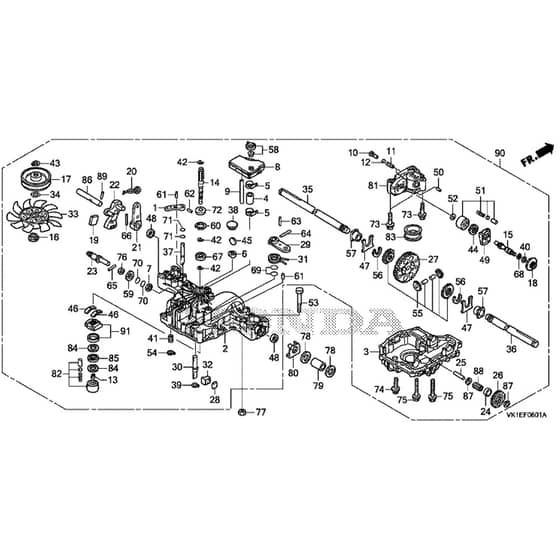

Honda HF2315K2-HME - Transmission Diagram

Name: Honda HF2315K2-HME - Transmission Diagram
SKU: hf2315k2_hme_transmission-group
Price: 0.45 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HF2315K2-HME - Transmission Diagram

Description

Honda HF2315K2-HME Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80001-VK1-003 Available to backorder	Lever	£4.03 £3.36
2	HP80002-VK1-003 Available to backorder	Upper Mounting Housing	£379.20 £316.00
3	HP80744-VK1-003 Available to backorder	Transmission Set	£514.80 £429.00
4	HP80004-VK1-003 Available to backorder	Tube	£5.88 £4.90
5	HP80005-VK1-003 Available to backorder	Miniature Clamp	£12.80 £10.67
6	HP80006-VK1-003 Available to backorder	Holder	£5.30 £4.42
7	HP80007-VK1-505 Available to backorder	Seal Repair Kit	£8.65 £7.21
8	HP80008-VK1-003 Available to backorder	Tank	£42.48 £35.40
9	HP80009-VK1-003 Available to backorder	Tank Support	£5.78 £4.82
10	HP80010-VK1-003 Available to backorder	Valve	£14.28 £11.90
11	HP80011-VK1-003 Available to backorder	Spring	£1.81 £1.51
12	HP80012-VK1-003 Available to backorder	Filter	£7.21 £6.01
13	HP80013-VK1-003 Available to backorder	Pump Spring	£3.61 £3.01
14	HP80014-VK1-003 Available to backorder	Pump Shaft	£85.32 £71.10
15	HP80015-VK1-003 Available to backorder	Motor Shaft	£72.12 £60.10
16	HP80016-VK1-003 Available to backorder	Special Collar	£5.50 £4.58
17	HP80017-VK1-003 Available to backorder	Pulley	£30.12 £25.10
18	HP80018-VK1-003 Available to backorder	Pinion	£17.81 £14.84
19	HP80019-VK1-003 Available to backorder	Plate	£13.24 £11.03
20	HP80020-VK1-003 Available to backorder	Torsion Spring	£24.91 £20.76
21	HP80021-VK1-003 Available to backorder	Control Lever	£25.21 £21.01
22	HP80022-VK1-003 Available to backorder	Control Arm	£79.68 £66.40
23	HP80024-VK1-003 Available to backorder	Cam	£48.06 £40.05
24	HP80025-VK1-003 Available to backorder	Collar	£5.50 £4.58
25	HP80026-VK1-003 Available to backorder	Gear Shaft	£23.82 £19.85
26	HP80028-VK1-003 Available to backorder	Reduction Gear	£39.70 £33.08
27	HP80029-VK1-003 Available to backorder	Final Gear	£137.28 £114.40
28	HP80031-VK1-003 Available to backorder	Brake Shoe	£7.01 £5.84
29	HP80032-VK1-003 Available to backorder	Brake Arm	£21.30 £17.75
30	HP80033-VK1-003 Available to backorder	Brake Arm Shaft	£72.72 £60.60
31	HP80034-VK1-003 Available to backorder	Brake Return Spring	£24.91 £20.76
32	HP80035-VK1-003 Available to backorder	Brake Pad Holder	£19.74 £16.45
33	HP80036-VK1-003 Available to backorder	Cooling Fan	£33.60 £28.00
34	HP80037-VK1-003 Available to backorder	Lock Washer	£9.24 £7.70
35	HP80038-VK1-003 Available to backorder	Axle Shaft	£86.28 £71.90
36	HP80039-VK1-003 Available to backorder	Axle Shaft	£103.92 £86.60
37	HP80040-VK1-003 Available to backorder	Shaft	£46.92 £39.10
38	HP80042-VK1-013 Available to backorder	Hole Plug	£8.60 £7.17
39	HP80043-VK1-003 Available to backorder	Ring 12.7Mm	£2.68 £2.23
40	HP80044-VK1-003 Available to backorder	Ring 15Mm	£2.11 £1.76
41	HP80045-VK1-003 Available to backorder	Spring	£1.81 £1.51
42	HP80046-VK1-013 Available to backorder	Ring 15Mm	£2.11 £1.76
43	HP80047-VK1-003 Available to backorder	Snap Ring	£2.68 £2.23
44	HP80048-VK1-013 Available to backorder	Bearing	£51.23 £42.69
45	HP80049-VK1-003 Available to backorder	Magnet	£9.50 £7.92
46	HP80051-VK1-013 Available to backorder	Thrust Metal	£10.12 £8.43
47	HP80056-VK1-003 Available to backorder	Thrust Washer	£11.42 £9.52
48	HP80057-VK1-003 Available to backorder	Oil Seal 19 X 32 X 8	£10.42 £8.68
49	HP80058-VK1-003 Available to backorder	Motor Housing	£21.30 £17.75
50	HP80059-VK1-003 Available to backorder	Pin 3 X 9.8Mm	£1.01 £0.84
51	HP80636-VK1-515 Available to backorder	Repair Kit K46	£478.80 £399.00
52	HP80062-VK1-003 Available to backorder	Plain Washer 12 X 24Mm	£0.89 £0.74
53	HP80062-Y09-003 Available to backorder	Screw	£5.12 £4.27
54	HP80063-VK1-013 Available to backorder	Ring 10Mm	£2.11 £1.76
55	HP80064-VK1-003 Available to backorder	Differential Gear	£96.96 £80.80
56	HP80065-VK1-003 Available to backorder	Ring 17Mm	£4.78 £3.98
57	HP80066-VK1-003 Available to backorder	Bush	£2.74 £2.28
58	HP80067-VK1-003 Available to backorder	Valve	£18.80 £15.67
59	HP80068-VK1-003 Available to backorder	Washer	£0.89 £0.74
60	HP80069-VK1-003 Available to backorder	Ring 35Mm	£3.19 £2.66
61	HP80070-VK1-003 Available to backorder	Dowel Pin 3 X 16	£1.08 £0.90
62	HP80071-VK1-003 Available to backorder	Dowel Pin 3 X 20	£1.08 £0.90
63	HP80073-VK1-003 Available to backorder	Dowel Pin 4 X 16	£1.08 £0.90
64	HP80074-VK1-003 Available to backorder	Dowel Pin 5 X 32	£1.84 £1.53
65	HP80075-VK1-003 Available to backorder	Dowel Pin 6 X 36	£1.81 £1.51
66	HP80076-VK1-003 Available to backorder	Dowel Pin 6 X 40	£2.52 £2.10
67	HP80077-VK1-003 Available to backorder	Bearing	£9.58 £7.98
68	HP80078-VK1-013 Available to backorder	Bearing	£25.48 £21.23
69	HP80079-VK1-003 Available to backorder	Packing	£2.27 £1.89
70	HP80080-VK1-003 Available to backorder	O Ring	£0.54 £0.45
71	HP80081-VK1-003 Available to backorder	Packing	£0.67 £0.56
72	HP80082-VK1-003 Available to backorder	Seal	£6.82 £5.68
73	HP80083-VK1-003 Available to backorder	Flange Bolt 10 X 75	£4.37 £3.64
74	HP80084-VK1-003 Available to backorder	Self Tapping Screw 8 X 30	£2.62 £2.18
75	HP80085-VK1-003 Available to backorder	Self Tapping Screw 8 X 55	£2.62 £2.18
76	HP80086-VK1-003 Available to backorder	Lock Nut	£2.46 £2.05
77	HP80104-VK1-003 Available to backorder	Flange Nut 8Mm	£0.92 £0.77
78	HP80032-Y09-003 Available to backorder	Washer	£4.42 £3.68
79	HP80272-VK1-003 Available to backorder	Spacer	£11.39 £9.49
80	HP80403-VK1-013 Available to backorder	Special Washer 20Mm	£4.16 £3.47
83	HP80637-VK1-003 Available to backorder	Filter	£45.88 £38.23
84	HP80638-VK1-003 Available to backorder	Plate	£27.16 £22.63
85	HP80639-VK1-003 Available to backorder	Bearing	£72.64 £60.53
86	HP80640-VK1-003 Available to backorder	Control Shaft	£45.88 £38.23
87	HP80641-VK1-003 Available to backorder	Washer	£3.02 £2.52
88	HP80642-VK1-003 Available to backorder	Final Pinion	£42.06 £35.05
89	HP80643-VK1-003 Available to backorder	Spring Pin	£4.70 £3.92
90	HP80193-VK1-003 Available to backorder	Transmission Assy	£1,153.20 £961.00
91	HP80733-VK1-003 Available to backorder	Plate	£34.54 £28.78
