Honda HF2315K1-SBEA - Muffler Diagram

Part No. hf2315k1_sbea_muffler-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

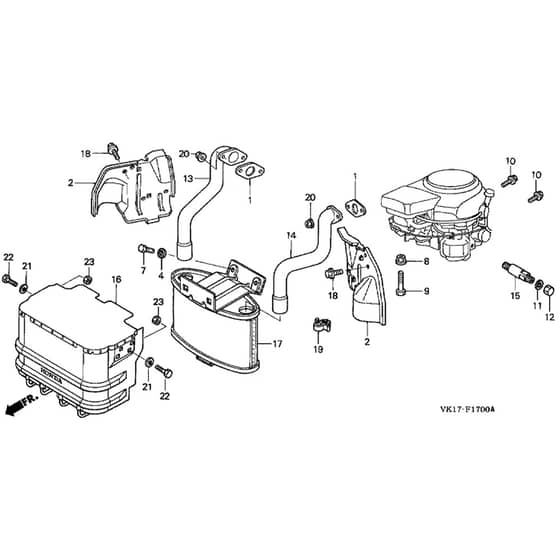

Honda HF2315K1-SBEA - Muffler Diagram

Honda HF2315K1-SBEA - Muffler Diagram

Description

Honda HF2315K1-SBEA Ride On Mower Parts Diagram

Ref.		Img.	Part No.	Details
	1		HP18333-Z0A-000 Available to backorder	Exhaust Pipe Gasket		£7.07 £5.89
	2		HP19631-Z0A-000 Available to backorder	Shroud		£18.98 £15.82
	4		HP80041-Y09-003 Available to backorder	Washer		£3.35 £2.79
	7		HP80101-Y09-003 In stock	Screw		£5.56 £4.63
	8		HP80104-VK1-003 In stock	Flange Nut 8Mm		£0.98 £0.82
	9		HP80123-VK1-003 Available to backorder	Bolt 8 X 40		£1.78 £1.48
	10		HP80136-VK1-003 Available to backorder	Self Tapping Screw 6 X 16		£1.30 £1.08
	11		HP80195-VK1-003 Available to backorder	Oil Seal		£1.37 £1.14
	12		HP80200-VK1-003 Available to backorder	Oil Drain Plug		£2.84 £2.37
	13		HP80205-VK1-003 Available to backorder	Pipe R H		£169.68 £141.40
	14		HP80206-VK1-003 Available to backorder	Pipe L H		£159.00 £132.50
	15		HP80374-VK1-003 Available to backorder	Hose Oil		£29.56 £24.63
	17		HP80578-VK1-003 Available to backorder	Muffler		£179.40 £149.50
	18		HP90013-883-000 Available to backorder	Flange Bolt 6 X 12		£4.34 £3.62
	19		HP90659-680-013 Available to backorder	Clip		£6.74 £5.62
	20		HP94050-06000 In stock	Flange Nut 6Mm		£3.37 £2.81
	21		HP80043-Y09-003 Available to backorder	Grower.		£3.32 £2.77
	22		HP80094-Y09-003 Available to backorder	Screw		£1.67 £1.39

Description

Honda HF2315K1-SBEA Ride On Mower Parts Diagram
