Honda HF2315K1-HME - Deflector Diagram

Name: Honda HF2315K1-HME - Deflector Diagram
SKU: hf2315k1_hme_deflector-group
Price: 0.67 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

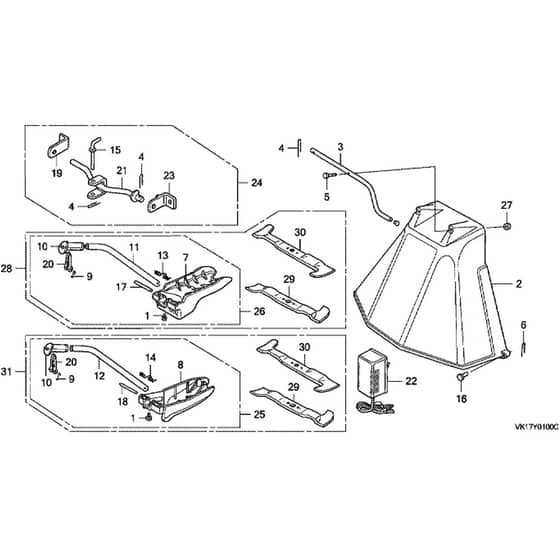

Honda HF2315K1-HME Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80003-VE7-003 Available to backorder	Screw	£2.32 £1.93
2	HP80609-VK1-003 Available to backorder	Ejection Guard Assy	£115.20 £96.00
3	HP80093-VK1-003 Available to backorder	Support	£45.62 £38.02
4	HP80154-Y09-003 Available to backorder	Split Pin	£3.66 £3.05
5	HP80122-VK1-003 Available to backorder	Bolt 6 X 45	£1.80 £1.50
6	HP80211-VK1-003 Available to backorder	Lock Pin 12Mm	£0.80 £0.67
8	HP80267-VK1-003 Available to backorder	Deflector	£42.02 £35.02
9	HP80281-VK1-003 Available to backorder	Hook	£1.39 £1.16
10	HP80287-VK1-003 Available to backorder	Handle Grip	£4.04 £3.37
12	HP80299-VK1-003 Available to backorder	Handle	£49.85 £41.54
14	HP80326-VK1-003 Available to backorder	Spring	£4.33 £3.61
15	HP80336-VK1-003 Available to backorder	Pin	£12.11 £10.09
16	HP80337-VK1-003 Available to backorder	Pin	£2.78 £2.32
18	HP80357-VK1-003 Available to backorder	Pin	£2.99 £2.49
19	HP80423-VK1-003 Available to backorder	Hitch Assy L H	£8.86 £7.38
20	HP80454-VK1-003 Available to backorder	Band	£13.55 £11.29
21	HP80525-VK1-003 Available to backorder	Rod	£59.28 £49.40
22	HP80541-VK1-003 Available to backorder	Battery Charger	£94.44 £78.70
23	HP80577-VK1-003 Available to backorder	Hitch Assy R H	£16.76 £13.97
24	HP80596-VK1-003 Available to backorder	Hitch Assy	£76.64 £63.87
25	HP80597-VK1-003 Available to backorder	Plug	£84.36 £70.30
27	HP80008-Y09-003 Available to backorder	Nut	£4.08 £3.40
29	HP80519-VK1-003 Available to backorder	Blade L H	£37.55 £31.29
30	HP80520-VK1-003 Available to backorder	Blade R H	£37.55 £31.29
31	HP06805-VK1-C10 Available to backorder	Mulching Kit	£144.72 £120.60
