Honda HF2315K1-HME - Cutting Housing Diagram

Description

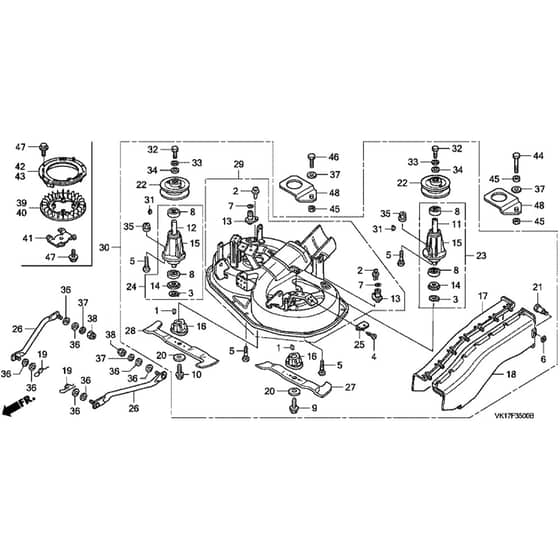

Honda HF2315K1-HME Ride On Mower Parts Diagram

	Part No.	Details
1	HP80003-Y09-003 In stock	Key	£11.45 £9.54
2	HP80025-Y09-003 Available to backorder	Rivet	£2.42 £2.02
3	HP80052-Y09-003 Available to backorder	External Circlip	£2.17 £1.81
4	HP80079-Y09-003 In stock	Screw	£0.66 £0.55
5	HP80103-Y09-003 Available to backorder	Screw	£1.37 £1.14
6	HP80107-VK1-003 Available to backorder	Special Nut 8Mm	£0.95 £0.79
7	HP80133-Y09-003 Available to backorder	O Ring	£5.59 £4.66
8	HP80736-VK1-003 Available to backorder	Bearing	£36.17 £30.14
9	HP80138-VK1-003 In stock	Flange Bolt 3/8 X 1-1/2 D	£1.81 £1.51
10	HP80139-VK1-003 In stock	Flange Bolt 3/8 X 1-1/2 S	£1.94 £1.62
11	HP80156-Y09-003 Available to backorder	Shaft	£52.03 £43.36
12	HP80157-Y09-003 Available to backorder	Shaft	£62.64 £52.20
13	HP80166-Y09-003 Available to backorder	Water Hose Connector	£1.43 £1.19
14	HP80197-Y09-003 Available to backorder	Dust Cover	£4.22 £3.52
15	HP80199-Y09-003 Available to backorder	Flange	£69.48 £57.90
16	HP80225-Y09-003 In stock	Blade Hub	£9.07 £7.56
17	HP76313-VK1-003 Available to backorder	Chute R H	£90.60 £75.50
18	HP76312-VK1-003 Available to backorder	Chute L H	£90.60 £75.50
19	HP80262-VK1-003 In stock	Lock Pin 10Mm	£2.99 £2.49
20	HP80279-VK1-003 In stock	Dust Cover	£8.03 £6.69
21	HP80342-VK1-003 Available to backorder	Special Screw 8Mm	£9.85 £8.21
22	HP80689-VK1-003 Available to backorder	Pulley	£83.04 £69.20
23	HP80404-Y09-003 Available to backorder	Bearing Housing L H	£135.72 £113.10
24	HP80405-Y09-003 Available to backorder	Bearing Housing R H	£135.72 £113.10
25	HP80422-VK1-003 Available to backorder	Bracket	£7.72 £6.43
26	HP80503-VK1-003 Available to backorder	Rod	£33.91 £28.26
27	HP80394-Y09-003 In stock	Blade L H	£23.30 £19.42
28	HP80395-Y09-003 In stock	Blade R H	£23.30 £19.42
29	HP80697-VK1-013 Available to backorder	Deck Shell	£517.62 £431.35
31	HP80005-Y09-003 In stock	Key	£1.90 £1.58
32	HP80101-Y09-003 In stock	Screw	£5.56 £4.63
33	HP80045-Y09-003 In stock	Washer	£1.55 £1.29
34	HP80265-Y09-003 In stock	Washer	£4.09 £3.41
35	HP80104-VK1-003 In stock	Flange Nut 8Mm	£0.98 £0.82
36	HP80402-VK1-003 Available to backorder	Plain Washer 10Mm	£1.61 £1.34
37	HP80035-Y09-003 In stock	Washer	£1.79 £1.49
38	HP80011-Y09-003 Available to backorder	Nut M10	£1.12 £0.93
39	HP72518-VK1-A10 In stock	Discharge Fan Assy	£63.74 £53.12
40	HP72519-VK1-A10 In stock	Discharge Fan Assy	£63.74 £53.12
41	HP72621-VK1-A10 Available to backorder	Blade Holder	£12.20 £10.17
42	HP76165-VK1-003 Available to backorder	Fan Guide	£48.49 £40.41
43	HP76166-VK1-003 Available to backorder	Fan Guide	£47.54 £39.62
44	HP80006-VF4-003 Available to backorder	Screw	£1.99 £1.66
45	HP80016-Y09-003 In stock	Nut	£9.25 £7.71
46	HP80099-Y09-003 Available to backorder	Screw	£3.35 £2.79
47	HP80682-VK1-003 Available to backorder	Screw	£3.06 £2.55
48	HP80698-VK1-013 Available to backorder	Reinforcement	£13.32 £11.10
