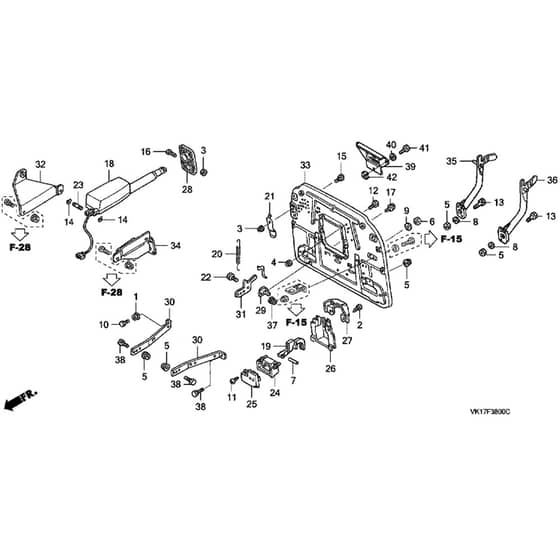

Honda HF2315-SBEA - Grass Catcher Frame Diagram

Name: Honda HF2315-SBEA - Grass Catcher Frame Diagram
SKU: hf2315_sbea_grass_catcher_frame-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HF2315-SBEA - Grass Catcher Frame Diagram

Description

Honda HF2315-SBEA Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
2	HP90102-VP5-003 Available to backorder	Self Tapping Screw 4.8 X 19	£2.82 £2.35
3	HP80001-VJ5-003 Available to backorder	Lock Nut 5Mm	£0.74 £0.62
4	HP80014-Y09-003 Available to backorder	Nut M6	£2.86 £2.38
5	HP80016-Y09-003 Available to backorder	Nut	£8.22 £6.85
6	HP80017-Y09-003 Available to backorder	Nut	£2.71 £2.26
7	HP80021-Y09-003 Available to backorder	Pin	£3.49 £2.91
8	HP80035-Y09-003 Available to backorder	Washer	£1.58 £1.32
9	HP80046-Y09-003 Available to backorder	Washer	£3.41 £2.84
10	HP80058-Y09-003 Available to backorder	Screw	£2.81 £2.34
11	HP80079-Y09-003 In stock	Screw	£0.62 £0.52
12	HP80094-Y09-003 Available to backorder	Screw	£1.69 £1.41
13	HP80101-Y09-003 Available to backorder	Screw	£5.28 £4.40
15	HP80090-Y09-003 Available to backorder	Screw	£2.82 £2.35
17	HP80132-VK1-003 Available to backorder	Self Tapping Screw 6 X 16	£2.81 £2.34
19	HP80206-Y09-003 Available to backorder	Lever	£10.92 £9.10
20	HP80317-VK1-003 In stock	Spring	£5.17 £4.31
21	HP80329-VK1-013 Available to backorder	Spring	£3.65 £3.04
22	HP80358-VK1-003 Available to backorder	Bolt	£2.44 £2.03
24	HP80375-VK1-003 Available to backorder	Switch Protector	£5.34 £4.45
25	HP80376-VK1-003 Available to backorder	Cover	£3.77 £3.14
26	HP80377-VK1-003 Available to backorder	Switch Protector	£1.90 £1.58
27	HP80378-VK1-003 Available to backorder	Cover	£1.90 £1.58
29	HP80421-VK1-003 Available to backorder	Bracket	£8.28 £6.90
30	HP80432-VK1-003 Available to backorder	Frame Stiffener	£9.46 £7.88
31	HP80430-VK1-003 Available to backorder	Clamp	£6.36 £5.30
33	HP80562-VK1-013 Available to backorder	Plate	£158.04 £131.70
35	HP80582-VK1-003 Available to backorder	Support	£129.59 £107.99
36	HP80583-VK1-003 Available to backorder	Support	£122.64 £102.20
37	HP80008-Y09-003 Available to backorder	Nut	£4.08 £3.40
38	HP80099-Y09-003 Available to backorder	Screw	£3.40 £2.83
