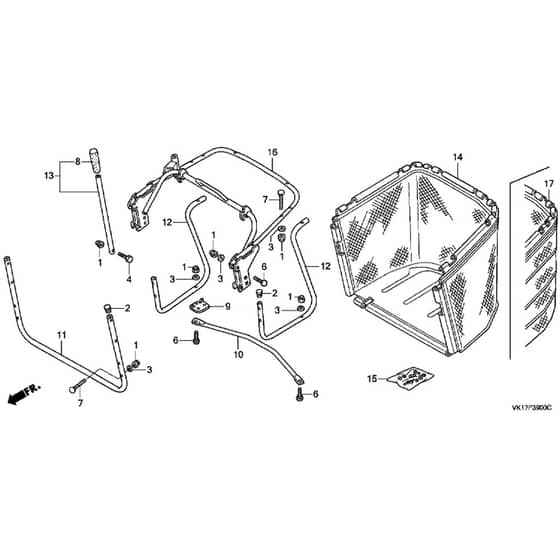

Honda HF2315-SBEA - Grass Bag Diagram

Description

Honda HF2315-SBEA Ride On Mower Parts Diagram

	Part No.	Details
1	HP80008-Y09-003 Available to backorder	Nut	£4.08 £3.40
2	HP80023-VF4-003 Available to backorder	Cap	£2.06 £1.72
3	HP80027-Y09-003 Available to backorder	Washer	£4.42 £3.68
4	HP80097-Y09-003 Available to backorder	Screw	£3.46 £2.88
6	HP80152-VK1-003 Available to backorder	Screw	£0.91 £0.76
7	HP80153-VK1-003 Available to backorder	Special Screw 6 X 40	£2.81 £2.34
8	HP80306-VK1-003 Available to backorder	Knob	£10.21 £8.51
9	HP80365-VK1-003 Available to backorder	Plate	£3.04 £2.53
10	HP80401-VK1-003 Available to backorder	Frame Stiffener	£23.74 £19.78
11	HP80450-VK1-003 Available to backorder	Front Frame	£63.12 £52.60
12	HP80451-VK1-003 Available to backorder	Side Frame	£63.12 £52.60
13	HP80634-VK1-003 Available to backorder	Rod	£53.30 £44.42
14	HP81320-VK1-F01 Available to backorder	Grass Bag	£140.88 £117.40
15	HP80539-VK1-003 Available to backorder	Grass Bag Screw Set	£4.87 £4.06
16	HP80593-VK1-003 Available to backorder		£227.54 £189.62
