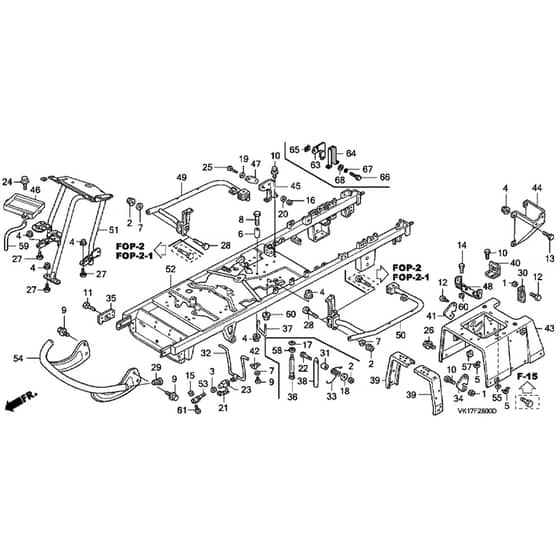

Honda HF2315-SBEA Ride On Mower Parts Diagram

	Part No.	Details
1	HP80001-VJ5-003 Available to backorder	Lock Nut 5Mm	£0.73 £0.61
2	HP80008-Y09-003 Available to backorder	Nut	£4.26 £3.55
3	HP80013-Y09-003 Available to backorder	Nut	£0.60 £0.50
4	HP80014-Y09-003 Available to backorder	Nut M6	£2.96 £2.47
5	HP80024-Y09-003 Available to backorder	Plate	£3.67 £3.06
6	HP80030-VF4-003 Available to backorder	Spacer	£3.40 £2.83
7	HP80034-Y09-003 Available to backorder	Washer	£1.03 £0.86
8	HP80059-Y09-003 Available to backorder	Screw R H	£6.17 £5.14
9	HP80075-Y09-003 Available to backorder	Screw	£3.40 £2.83
10	HP80079-Y09-003 In stock	Screw	£0.66 £0.55
11	HP80132-VK1-003 Available to backorder	Self Tapping Screw 6 X 16	£2.76 £2.30
12	HP80090-Y09-003 Available to backorder	Screw	£2.77 £2.31
13	HP80093-Y09-003 Available to backorder	Screw	£2.76 £2.30
14	HP80099-Y09-003 Available to backorder	Screw	£3.35 £2.79
15	HP80104-VK1-003 In stock	Flange Nut 8Mm	£0.98 £0.82
21	HP80118-Y09-003 Available to backorder	Clip	£12.80 £10.67
23	HP80122-Y09-003 Available to backorder	Fork	£8.38 £6.98
26	HP80142-VK1-003 Available to backorder	Bolt 6 X 18	£1.16 £0.97
27	HP80151-VK1-003 Available to backorder	Special Screw 6 X 16	£3.40 £2.83
28	HP80153-VK1-003 Available to backorder	Special Screw 6 X 40	£2.76 £2.30
29	HP80202-VK1-003 Available to backorder	Cap	£1.60 £1.33
30	HP80277-Y09-003 Available to backorder	Bracket	£15.74 £13.12
32	HP80285-VK1-013 Available to backorder	Belt Guide	£32.60 £27.17
34	HP80333-VK1-003 Available to backorder	Plate	£3.02 £2.52
35	HP80364-VK1-003 Available to backorder	Plate	£6.41 £5.34
37	HP80370-VK1-003 Available to backorder	Belt Guide	£5.99 £4.99
39	HP80399-VK1-003 Available to backorder	Stiffener Frame	£9.14 £7.62
40	HP80419-VK1-003 Available to backorder	Bracket	£9.20 £7.67
41	HP80420-VK1-003 Available to backorder	Switch Stay	£6.41 £5.34
43	HP52115-VK1-G11 Available to backorder	Support Seal	£127.80 £106.50
43	HP80435-VK1-003 Available to backorder	Support Seal	£127.80 £106.50
44	HP80436-VK1-003 Available to backorder	Support	£22.73 £18.94
45	HP80437-VK1-003 Available to backorder	Support	£4.55 £3.79
46	HP31551-VK1-F01 Available to backorder	Battery Tray	£10.44 £8.70
48	HP80579-VK1-003 In stock	Seat Support	£9.78 £8.15
49	HP80587-VK1-023 Available to backorder	Support	£59.47 £49.56
51	HP80589-VK1-023 Available to backorder	Support	£139.56 £116.30
52	HP80591-VK1-013 Available to backorder	Frame	£596.40 £497.00
53	HP80594-VK1-003 Available to backorder	Tie Rod	£21.89 £18.24
55	HP80019-Y09-003 Available to backorder	Nut	£6.92 £5.77
59	HP80606-VK1-003 Available to backorder	Drain Tube	£17.60 £14.67
60	HP80016-Y09-003 In stock	Nut	£9.25 £7.71
61	HP80101-Y09-003 In stock	Screw	£5.56 £4.63
