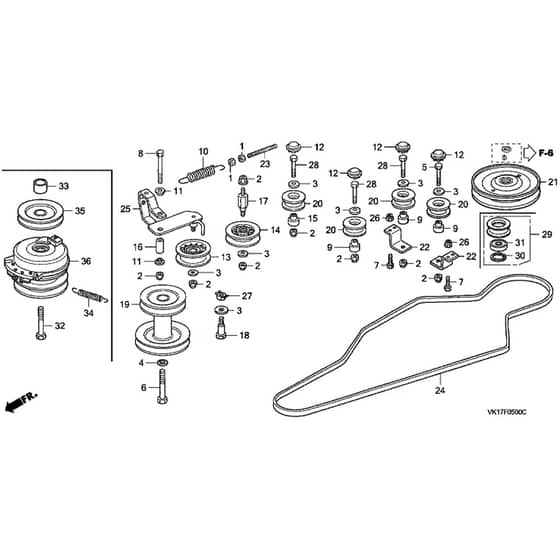

Honda HF2315-SBE Ride On Mower Parts Diagram

	Part No.	Details
1	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
2	HP80104-VK1-003 In stock	Nut	£0.98 £0.82
3	HP80035-Y09-003 In stock	Washer	£1.79 £1.49
4	HP80042-Y09-003 Available to backorder	Washer	£3.35 £2.79
5	HP80060-Y09-003 Available to backorder	Screw	£5.05 £4.21
6	HP80088-Y09-003 Available to backorder	Screw	£5.05 £4.21
7	HP80142-VK1-003 Available to backorder	Bolt 6 X 18	£1.16 £0.97
8	HP80124-VK1-003 Available to backorder	Bolt 8 X 75	£1.22 £1.02
9	HP80196-Y09-003 Available to backorder	Spacer L H	£11.29 £9.41
10	HP80216-Y09-003 Available to backorder	Spring	£25.67 £21.39
11	HP80229-VK1-003 Available to backorder	Bush	£1.51 £1.26
12	HP80249-VK1-003 Available to backorder	Cover	£4.34 £3.62
13	HP80255-Y09-003 Available to backorder	Pulley	£59.59 £49.66
14	HP80256-Y09-003 Available to backorder	Pulley	£69.24 £57.70
15	HP80273-VK1-003 Available to backorder	Spacer	£17.46 £14.55
16	HP80275-VK1-003 Available to backorder	Spacer	£4.70 £3.92
17	HP80339-VK1-505 Available to backorder	Pin	£80.16 £66.80
18	HP80373-VK1-003 Available to backorder	Belt Guide	£4.50 £3.75
19	HP80395-VK1-003 Available to backorder	Pulley	£202.56 £168.80
21	HP80426-Y09-003 Available to backorder	Pulley	£142.20 £118.50
22	HP80434-VK1-003 Available to backorder	Clamp	£5.74 £4.78
23	HP80453-VK1-003 Available to backorder	Tie Rod	£3.40 £2.83
24	HP80478-VK1-003 Available to backorder	Belt	£81.60 £68.00
25	HP80551-VK1-003 Available to backorder	Shift Lever	£30.02 £25.02
26	HP80008-Y09-003 Available to backorder	Nut	£4.26 £3.55
27	HP80107-VK1-003 Available to backorder	Special Nut 8Mm	£0.95 £0.79
28	HP80058-Y09-003 Available to backorder	Screw	£2.76 £2.30
29	HP22520-VK1-003 Available to backorder	Tension Roller	£31.61 £26.34
30	HP94520-32000 Available to backorder	Internal Circlip 32Mm	£2.23 £1.86
31	HP96150-6002010 Available to backorder	Bearing	£24.17 £20.14
