Honda HF2315-SBE - Lever Diagram

Name: Honda HF2315-SBE - Lever Diagram
SKU: hf2315_sbe_lever-group
Price: 0.4 GBP
Availability: InStock

Part No. hf2315_sbe_lever-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

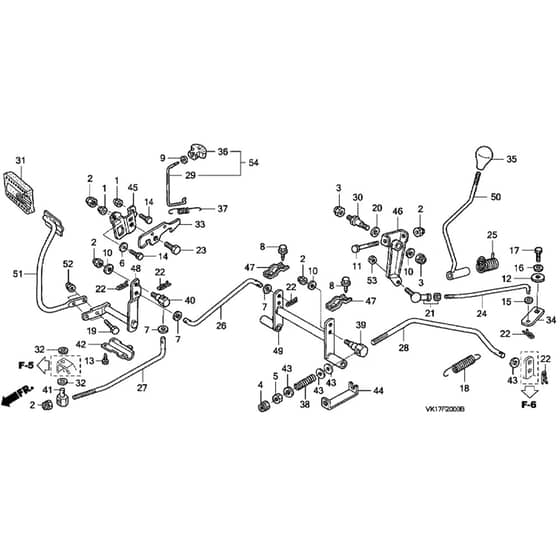

Honda HF2315-SBE Ride On Mower Parts Diagram

	Part No.	Details
1	HP80008-Y09-003 Available to backorder	Nut	£4.26 £3.55
2	HP80104-VK1-003 In stock	Nut	£0.98 £0.82
3	HP80010-Y09-003 Available to backorder	Nut	£3.48 £2.90
4	HP80011-Y09-003 Available to backorder	Nut M10	£1.12 £0.93
5	HP80017-Y09-003 Available to backorder	Nut	£2.81 £2.34
6	HP80034-Y09-003 Available to backorder	Washer	£1.03 £0.86
8	HP80029-Y10-003 Available to backorder	Screw	£1.22 £1.02
9	HP80033-Y09-003 Available to backorder	Washer	£4.03 £3.36
10	HP80035-Y09-003 In stock	Washer	£1.79 £1.49
11	HP80063-Y09-003 Available to backorder	Screw	£2.89 £2.41
12	HP80066-Y10-003 Available to backorder	Washer	£1.21 £1.01
13	HP80074-Y09-003 Available to backorder	Screw	£4.80 £4.00
14	HP80093-Y09-003 Available to backorder	Screw	£2.76 £2.30
15	HP80110-VK1-003 Available to backorder	Plain Washer 7Mm	£2.09 £1.74
17	HP80135-VK1-003 Available to backorder	Bolt 6 X 16	£0.74 £0.62
18	HP80145-Y09-003 In stock	Spring	£8.32 £6.93
19	HP80146-VK1-003 Available to backorder	Bolt 8 X 25	£1.67 £1.39
20	HP80149-Y09-003 Available to backorder	Washer	£5.03 £4.19
21	HP80152-Y09-003 Available to backorder	Joint	£26.20 £21.83
22	HP80211-VK1-003 In stock	Lock Pin 12Mm	£0.86 £0.72
23	HP80208-VK1-003 Available to backorder	Special Screw 8 X 20	£4.80 £4.00
24	HP80219-VK1-003 Available to backorder	Rod	£10.87 £9.06
25	HP80219-Y09-003 Available to backorder	Spring	£9.48 £7.90
26	HP80220-VK1-003 Available to backorder	Rod	£15.64 £13.03
27	HP80221-VK1-003 Available to backorder	Rod	£17.53 £14.61
28	HP80222-VK1-003 Available to backorder	Rod	£22.56 £18.80
30	HP80232-Y09-003 Available to backorder	Pin	£8.56 £7.13
31	HP80257-VK1-003 Available to backorder	Pedal Rubber	£13.24 £11.03
33	HP80282-VK1-003 Available to backorder	Hook	£4.66 £3.88
34	HP80295-VK1-003 Available to backorder	Shift Lever	£5.38 £4.48
35	HP80304-VK1-003 Available to backorder	Knob	£4.18 £3.48
37	HP80318-VK1-003 Available to backorder	Spring	£2.84 £2.37
38	HP80322-VK1-003 Available to backorder	Spring	£2.68 £2.23
39	HP80348-VK1-003 Available to backorder	Pin	£6.64 £5.53
40	HP80349-VK1-003 Available to backorder	Pin	£6.64 £5.53
41	HP80350-VK1-003 Available to backorder	Pin	£13.26 £11.05
42	HP80363-VK1-003 Available to backorder	Plate	£10.57 £8.81
43	HP80029-Y09-003 Available to backorder	Washer	£4.03 £3.36
44	HP80425-VK1-003 Available to backorder	Clamp	£3.72 £3.10
45	HP80428-VK1-003 Available to backorder	Support	£5.71 £4.76
47	HP80469-VK1-003 Available to backorder	Plate	£2.09 £1.74
48	HP80510-VK1-003 Available to backorder	Rod	£44.77 £37.31
49	HP80512-VK1-003 Available to backorder	Rod	£33.46 £27.88
50	HP80554-VK1-003 Available to backorder	Shift Lever	£57.48 £47.90
52	HP80016-Y09-003 In stock	Nut	£9.25 £7.71
53	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
54	HP04403-VK1-305 Available to backorder	Parking Brake Knob	£23.28 £19.40
