Honda HF2315-HMEA - Steering Wheel Diagram

Description

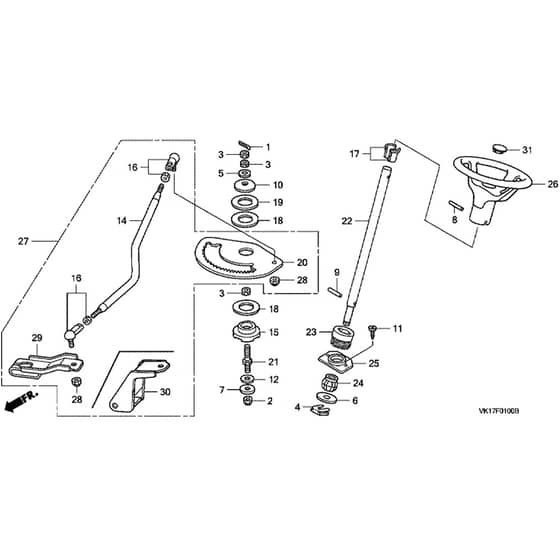

Honda HF2315-HMEA Ride On Mower Parts Diagram

	Part No.	Details
1	HP80006-Y09-003 Available to backorder	Split Pin	£3.44 £2.87
2	HP80011-Y09-003 Available to backorder	Nut M10	£1.12 £0.93
3	HP80017-Y09-003 Available to backorder	Nut	£2.81 £2.34
4	HP80022-Y09-003 Available to backorder	Plate	£5.08 £4.23
5	HP80029-Y09-003 Available to backorder	Washer	£4.03 £3.36
6	HP80030-Y09-003 Available to backorder	Washer	£3.32 £2.77
7	HP80037-Y09-003 Available to backorder	Washer	£4.57 £3.81
8	HP80055-Y09-003 Available to backorder	Pin	£3.32 £2.77
9	HP80056-Y09-003 Available to backorder	Pin	£4.06 £3.38
10	HP80144-Y09-003 Available to backorder	Elastic Washer	£4.01 £3.34
11	HP80145-VK1-003 Available to backorder	Self Tapping Screw 5.4 X 14	£2.76 £2.30
12	HP80148-Y09-003 Available to backorder	Washer	£6.04 £5.03
14	HP80165-Y09-003 Available to backorder	Steering Rod	£106.68 £88.90
15	HP80171-Y09-003 Available to backorder	Bush	£39.62 £33.02
16	HP80210-VK1-013 Available to backorder	Joint	£30.12 £25.10
17	HP80230-VK1-003 Available to backorder	Bush	£4.43 £3.69
18	HP80268-Y09-003 Available to backorder	Washer	£4.03 £3.36
19	HP80269-Y09-003 Available to backorder	Washer	£4.03 £3.36
20	HP80275-Y09-003 Available to backorder	Steering Driven Gear	£50.95 £42.46
21	HP80351-VK1-013 Available to backorder	Pin	£9.14 £7.62
22	HP80361-VK1-003 Available to backorder	Steering Shaft	£99.84 £83.20
23	HP80367-VK1-013 Available to backorder	Pinion	£18.00 £15.00
24	HP80418-VK1-003 Available to backorder		£4.39 £3.66
25	HP80447-VK1-003 Available to backorder		£6.91 £5.76
26	HP80466-VK1-003 Available to backorder	Steering Wheel Assy	£85.92 £71.60
28	HP90302-VK1-E11 Available to backorder	Lock Nut 12Mm	£7.86 £6.55
29	HP80208-Y09-003 Available to backorder	Lever	£36.04 £30.03
31	HP80662-VK1-003 Available to backorder	Steering Wheel Cover	£38.44 £32.03
