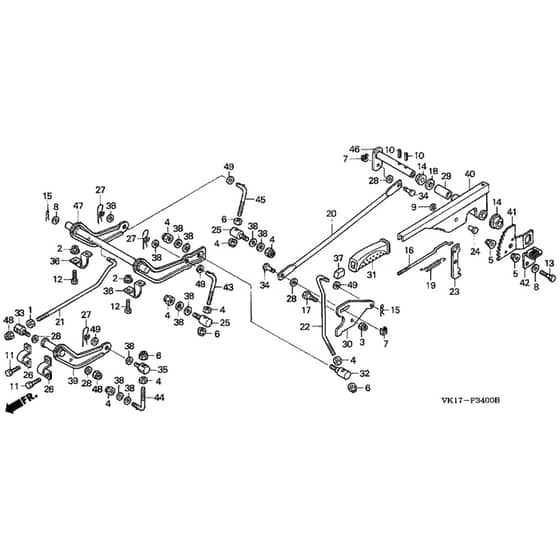

Honda HF2315-HME - Cutting Plate Lifting Diagram

Name: Honda HF2315-HME - Cutting Plate Lifting Diagram
SKU: hf2315_hme_cutting_plate_lifting-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HF2315-HME - Cutting Plate Lifting Diagram

Description

Honda HF2315-HME Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
2	HP80014-Y09-003 Available to backorder	Nut M6	£2.86 £2.38
3	HP80010-Y09-003 Available to backorder	Nut	£3.53 £2.94
4	HP80011-Y09-003 Available to backorder	Nut M10	£1.08 £0.90
5	HP80016-Y09-003 Available to backorder	Nut	£8.22 £6.85
6	HP80017-Y09-003 Available to backorder	Nut	£2.71 £2.26
7	HP80023-Y09-003 In stock	Plate	£2.76 £2.30
9	HP80049-Y09-003 Available to backorder	Clip	£0.64 £0.53
10	HP80054-Y09-003 Available to backorder	Pin	£3.49 £2.91
11	HP80074-Y09-003 Available to backorder	Screw	£4.87 £4.06
12	HP80093-Y09-003 Available to backorder	Screw	£2.81 £2.34
13	HP80146-VK1-003 Available to backorder	Bolt 8 X 25	£1.69 £1.41
14	HP80140-Y09-003 Available to backorder	Bush	£6.18 £5.15
15	HP80211-VK1-003 Available to backorder	Lock Pin 12Mm	£0.80 £0.67
16	HP80160-Y09-003 Available to backorder	Rod	£13.79 £11.49
17	HP80208-VK1-003 Available to backorder	Special Screw 8 X 20	£4.87 £4.06
18	HP80209-VK1-003 Available to backorder	Plain Washer 20Mm	£2.36 £1.97
19	HPCG254-302-08H1 Available to backorder	Spring	£4.14 £3.45
20	HP80223-VK1-003 Available to backorder	Rod	£13.80 £11.50
21	HP80225-VK1-003 Available to backorder	Rod	£20.36 £16.97
22	HP80226-VK1-003 Available to backorder	Rod	£35.82 £29.85
23	HP80226-Y09-003 Available to backorder	Dog	£12.68 £10.57
24	HP80227-Y09-003 Available to backorder	Pin	£9.70 £8.08
25	HP80229-Y09-003 Available to backorder	Pin	£13.54 £11.28
26	HP80243-Y09-003 Available to backorder	Plate L H	£13.09 £10.91
27	HP80262-VK1-003 In stock	Lock Pin 10Mm	£2.78 £2.32
28	HP80267-Y09-003 Available to backorder	Washer	£3.40 £2.83
29	HP80274-VK1-003 Available to backorder	Spacer	£8.28 £6.90
30	HP80297-VK1-003 Available to backorder	Steering Shaft	£4.69 £3.91
31	HP80302-VK1-003 Available to backorder	Knob	£5.70 £4.75
32	HP80335-VK1-003 Available to backorder	Pin	£7.73 £6.44
33	HP80340-VK1-003 Available to backorder	Pin	£5.75 £4.79
34	HP80343-VK1-003 Available to backorder	Pin	£3.79 £3.16
35	HP80353-VK1-003 Available to backorder	Pin	£12.34 £10.28
36	HP80362-VK1-003 Available to backorder	Plate	£16.03 £13.36
37	HP80397-VK1-003 Available to backorder	Button	£5.05 £4.21
38	HP80402-VK1-003 Available to backorder	Plain Washer 10Mm	£1.66 £1.38
39	HP80413-Y09-003 Available to backorder	Lever	£111.96 £93.30
40	HP80414-Y09-003 Available to backorder	Lever	£54.78 £45.65
41	HP80417-VK1-003 Available to backorder	Steering Shaft	£15.49 £12.91
42	HP80446-VK1-003 Available to backorder	Support	£2.78 £2.32
43	HP80455-VK1-013 Available to backorder	Tie Rod	£35.76 £29.80
44	HP80458-VK1-003 Available to backorder	Tie Rod	£28.36 £23.63
46	HP80507-VK1-003 Available to backorder	Rod	£29.68 £24.73
47	HP80508-VK1-003 Available to backorder	Rod	£44.68 £37.23
48	HP80104-VK1-003 Available to backorder	Nut	£0.92 £0.77
49	HP80029-Y09-003 Available to backorder	Washer	£3.96 £3.30
