Honda HF2220K1-SLE - Gearbox Diagram

Name: Honda HF2220K1-SLE - Gearbox Diagram
SKU: hf2220k1_sle_gearbox-group
Price: 0.4 GBP
Availability: InStock

Part No. hf2220k1_sle_gearbox-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

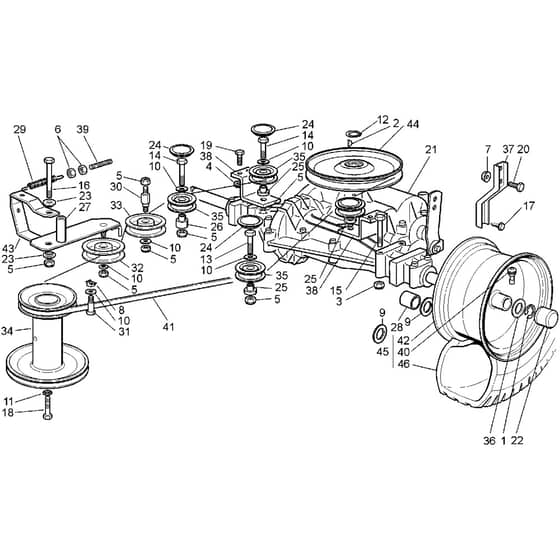

Honda HF2220K1-SLE Ride On Mower Parts Diagram

	Part No.	Details
1	MO112001010/0 In stock	Circlip	£1.84 £1.53
2	MO112139430/0 In stock	Key	£1.97 £1.64
3	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
4	HP80008-Y09-003 Available to backorder	Nut	£4.26 £3.55
5	HP80104-VK1-003 In stock	Flange Nut 8Mm	£0.98 £0.82
6	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
7	MO112293201/0 In stock	Nut	£1.70 £1.42
8	MO112360425/0 Available to backorder	Nut	£1.92 £1.60
9	MO112521410/0 Available to backorder	Washer	£1.92 £1.60
10	HP80035-Y09-003 In stock	Washer	£1.79 £1.49
11	MO112543000/0 Available to backorder	Washer	£1.63 £1.36
12	MO112608950/0 Available to backorder	Circlip	£1.63 £1.36
13	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
14	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
15	MO112691800/0 Available to backorder	Screw	£1.63 £1.36
16	MO112692000/0 Available to backorder	Screw	£1.97 £1.64
17	MO112735150/0 Available to backorder	Screw	£1.70 £1.42
18	MO112737310/0 Available to backorder	Screw	£2.94 £2.45
19	MO112791213/1 In stock	Screw	£1.55 £1.29
20	MO112792611/0 In stock	Screw	£1.55 £1.29
22	HP80143-Y09-003 In stock	Hub Cover	£1.85 £1.54
23	MO125038002/1 Available to backorder	Bush	£1.55 £1.29
24	MO125109521/1 Available to backorder	Cover	£1.63 £1.36
25	MO125160018/1 Available to backorder	Spacer	£6.76 £5.63
26	MO125160024/2 In stock	Spacer	Was £8.29 £6.91 Special Price £5.27 £4.39
27	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
28	MO125160028/0 Available to backorder	Spacer	£5.06 £4.22
29	MO125430219/1 Available to backorder	Spring	£3.66 £3.05
31	MO125580018/0 Available to backorder	Pin	£7.25 £6.04
32	MO125601554/0 In stock	Pulley	£25.66 £21.38
33	MO125601555/0 In stock	Pulley	£29.28 £24.40
34	MO125601569/0 Available to backorder	Pulley	£116.83 £97.36
35	MO325601570/1 In stock	Belt Pulley	£24.37 £20.31
36	MO125670005/2 In stock	Washer	£4.08 £3.40
37	MO325774285/1 Available to backorder	Clamp	£5.92 £4.93
38	MO325785125/1 Available to backorder	Support Pulley	£5.92 £4.93
39	MO125840010/1 Available to backorder	Tie Rod	£1.97 £1.64
40	MO125950000/0 In stock	Valve	£5.34 £4.45
41	MO135062011/0 Available to backorder	Transmission Belt	£65.58 £54.65
42	MO182000592/0 Available to backorder	Rear Wheel Rim	£109.79 £91.49
43	MO382318165/2 Available to backorder	Lever	£27.76 £23.13
44	MO182601503/0 Available to backorder	Pulley	£101.34 £84.45
45	MO382680067/0 Available to backorder	Wheel Assembly	£188.53 £157.11
