Honda HF2220-HLE - Cutting Plate (1) Diagram

Name: Honda HF2220-HLE - Cutting Plate (1) Diagram
SKU: hf2220_hle_cutting_plate_1_-group
Price: 1.29 GBP
Availability: InStock

Part No. hf2220_hle_cutting_plate_1_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HF2220-HLE - Cutting Plate (1) Diagram

Description

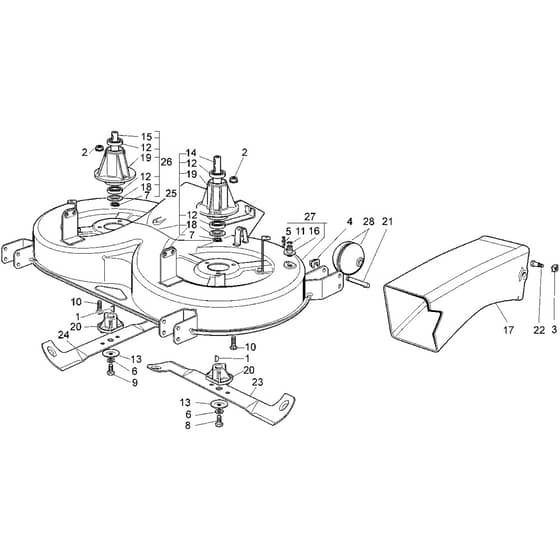

Honda HF2220-HLE Ride On Mower Parts Diagram

	Part No.	Details
1	HP80003-Y09-003 In stock	Key	£11.45 £9.54
2	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
3	MO112360425/0 Available to backorder	Nut	£1.92 £1.60
4	MO112436030/0 In stock	Pin Plate	£1.84 £1.53
5	MO112500030/0 In stock	Rivet	£1.55 £1.29
6	HP80037-Y09-003 Available to backorder	Washer	£4.57 £3.81
7	MO112609260/0 In stock	Circlip	£1.84 £1.53
8	MO112735694/0 In stock	Screw	£1.97 £1.64
9	MO112735695/1 In stock	Screw	£3.79 £3.16
10	MO112818700/0 In stock	Screw	£1.55 £1.29
11	MO119035000/0 Available to backorder	O Ring	£5.06 £4.22
12	MO119216047/0 In stock	Bearing	£15.78 £13.15
13	HP80144-Y09-003 Available to backorder	Elastic Washer	£4.01 £3.34
14	MO125020800/1 Available to backorder	Main Blade Shaft	£46.48 £38.73
15	MO125020801/2 Available to backorder	Secondary Blade Shaft	£43.07 £35.89
16	MO125033060/0 In stock	Washing Cutting Deck Connection	£1.55 £1.29
17	MO325108009/1 Available to backorder	Discharge Chute	£71.80 £59.83
18	MO325160501/1 Available to backorder	Washer	£1.55 £1.29
19	MO125207200/0 In stock	Blade Shaft Support	Was £50.68 £42.23 Special Price £33.46 £27.88
20	MO125463200/0 In stock	Blade Boss	£9.07 £7.56

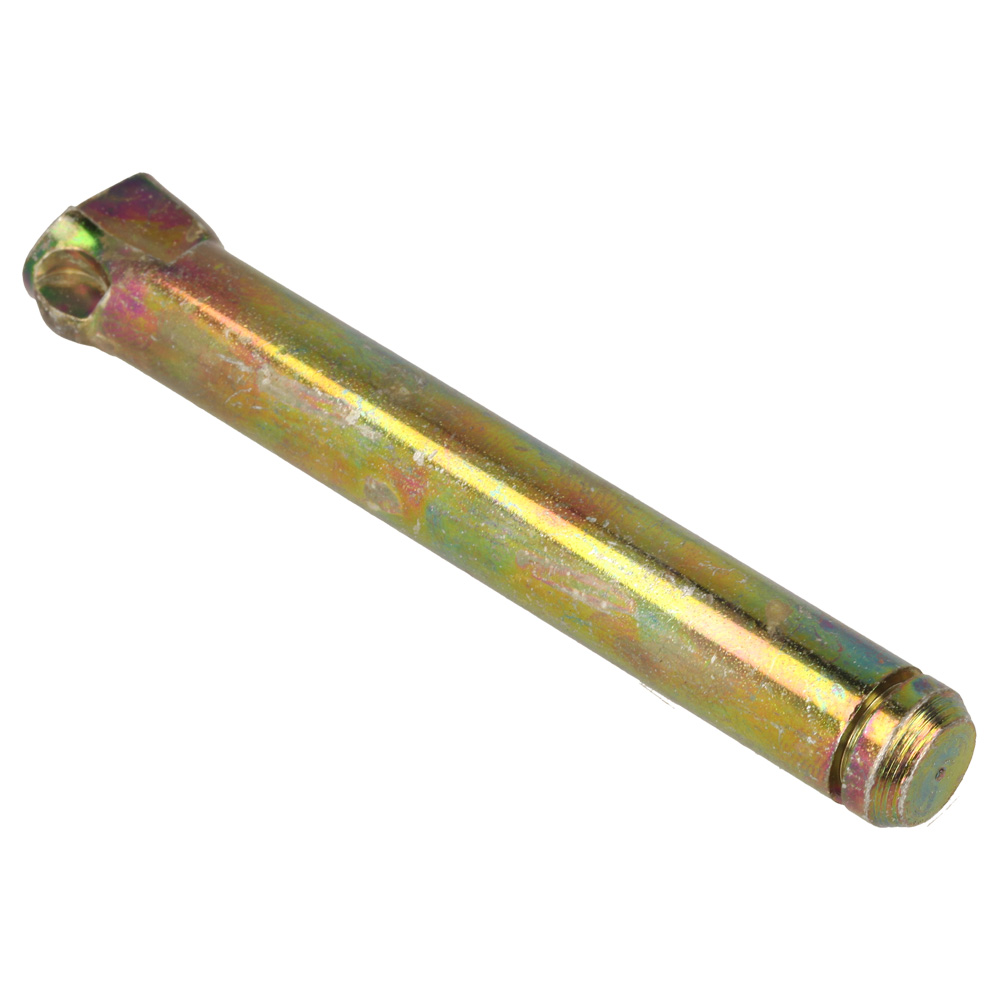

21	MO125510006/0 In stock	Pin	Was £10.70 £8.92 Special Price £6.79 £5.66
22	MO125510051/1 Available to backorder	Pin	£4.19 £3.49
23	MO182004342/0 Available to backorder	Left Blade	£45.79 £38.16
24	MO182004343/0 Available to backorder	Right Blade	£45.79 £38.16
25	MO382207200/2LC Available to backorder	Main Blade Shaft Assy	£101.34 £84.45
26	MO382207201/3LC In stock	Secondary Blade Shaft Assy	£91.50 £76.25

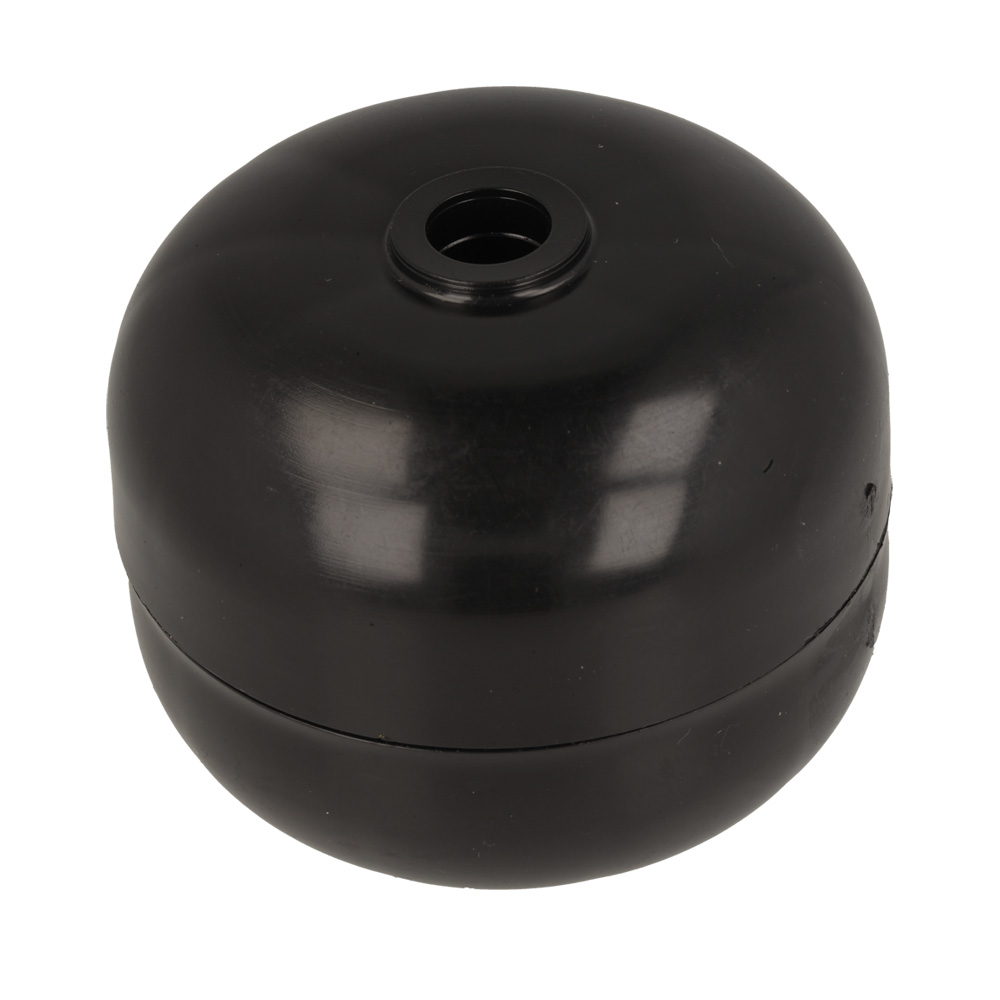

28	MO482700000/0 Available to backorder	Anti-Scalp Wheel	£15.78 £13.15
