Honda HF2216K1-SE - Drive and Brake Control Unit Diagram

Description

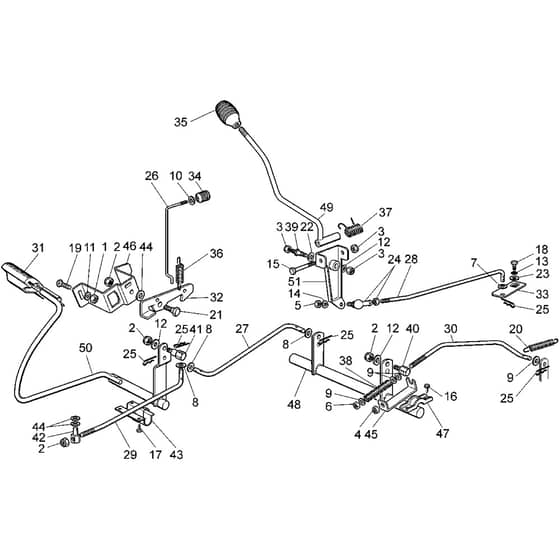

Honda HF2216K1-SE Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80008-Y09-003 Available to backorder	Nut	£4.08 £3.40
2	HP80104-VK1-003 Available to backorder	Flange Nut 8Mm	£0.92 £0.77
3	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
4	MO112156602/0 In stock	Nut	£1.40 £1.17
5	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
6	MO112295200/0 In stock	Nut	£1.40 £1.17
7	MO112521340/0 Available to backorder	Washer	£1.40 £1.17
9	MO112521360/0 In stock	Washer	£1.55 £1.29
10	MO112523020/0 In stock	Washer	£1.55 £1.29
11	HP80034-Y09-003 Available to backorder	Washer	£1.00 £0.83
12	HP80035-Y09-003 Available to backorder	Washer	£1.58 £1.32
13	MO112540040/0 Available to backorder	Washer	£1.40 £1.17
14	HP80045-Y09-003 Available to backorder	Washer	£1.55 £1.29
15	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
16	HP80029-Y10-003 Available to backorder	Screw	£1.25 £1.04
17	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
18	MO112735520/0 Available to backorder	Screw	£1.55 £1.29
19	MO112815210/0 Available to backorder	Screw	£1.55 £1.29
20	MO122450500/0 Available to backorder	Spring	£3.10 £2.58
21	MO122524970/2 Available to backorder	Seat Fulcrum Pin	£1.90 £1.58
22	MO322672151/0 Available to backorder	Washer	£1.82 £1.52
23	HP80066-Y10-003 Available to backorder	Washer	£1.22 £1.02
24	MO122746601/0 Available to backorder	Articulation Joint	£19.14 £15.95
25	MO124487997/0 Available to backorder	Spring Clip	£1.55 £1.29
26	MO125033034/0 Available to backorder	Brake Rod	£5.21 £4.34
28	MO125033037/0 Available to backorder	Brake Rod	£17.04 £14.20
30	MO125033040/0 Available to backorder	Brake Rod	£25.06 £20.88
31	MO125110269/0 Available to backorder	Brake Pedal Cover	£3.67 £3.06
32	MO25253001/0 Available to backorder	Hook	£6.77 £5.64
33	MO325318169/0 Available to backorder	Lever Plate	£2.81 £2.34
34	MO125394509/1 In stock	Brake Knob	£2.44 £2.03
35	MO182394509/0 Available to backorder	Knob	£30.83 £25.69
36	MO125430213/0 Available to backorder	Spring	£1.69 £1.41
37	MO125430226/0 Available to backorder	Spring	£2.26 £1.88
38	MO25430236/0 Available to backorder	Brake Rod Spring	£2.17 £1.81
39	MO125510035/0 In stock	Pin	£3.67 £3.06
40	MO125510062/0 Available to backorder	Pin	£4.93 £4.11
41	MO125510063/0 Available to backorder	Pin	£4.78 £3.98
43	MO25547081/0 Available to backorder	Right Plate	£8.40 £7.00
44	MO325670011/0 Available to backorder	Washer	£1.55 £1.29
45	MO325774275/1 Available to backorder	Clamp	£3.52 £2.93
46	MO325785143/1 Available to backorder	Support Bracket	£4.33 £3.61
47	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
