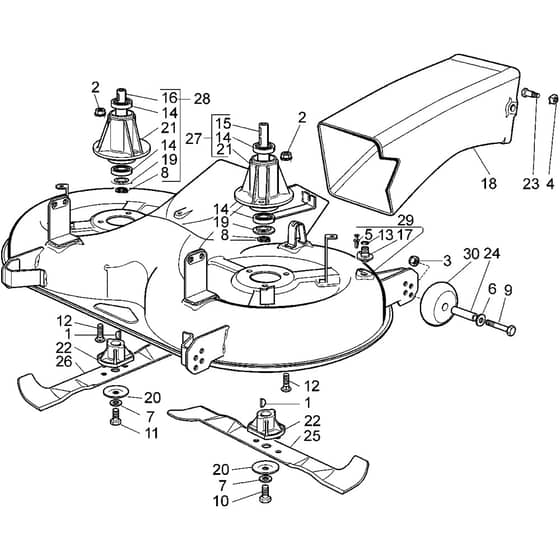

Honda HF2216K1-HE - Cutting Plate (1) Diagram

Name: Honda HF2216K1-HE - Cutting Plate (1) Diagram
SKU: hf2216k1_he_cutting_plate_1_-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HF2216K1-HE - Cutting Plate (1) Diagram

Description

Honda HF2216K1-HE Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80003-Y09-003 In stock	Key	£10.48 £8.73
2	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
3	MO112293201/0 In stock	Nut	£1.69 £1.41
4	MO112360425/0 Available to backorder	Nut	£1.82 £1.52
5	MO112500030/0 In stock	Rivet	£1.49 £1.24
6	HP80035-Y09-003 Available to backorder	Washer	£1.58 £1.32
7	MO112523080/0 In stock	Washer	£1.55 £1.29
8	MO112609260/0 Available to backorder	Circlip	£1.82 £1.52
9	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
10	MO112735696/0 In stock	Screw	£2.65 £2.21
11	MO112735697/1 In stock	Screw	£2.12 £1.77
12	MO112818700/0 Available to backorder	Screw	£1.55 £1.29
13	MO119035000/0 Available to backorder	O Ring	£5.06 £4.22
14	MO119216047/0 In stock	Bearing	£15.78 £13.15
15	MO125020800/1 Available to backorder	Main Blade Shaft	£46.46 £38.72
16	MO125020801/2 Available to backorder	Secondary Blade Shaft	£42.23 £35.19
17	MO125033060/0 In stock	Washing Cutting Deck Connection	£1.49 £1.24
18	MO325108009/1 Available to backorder	Discharge Chute	£71.80 £59.83
19	MO325160501/1 Available to backorder	Washer	£1.49 £1.24
20	MO125160503/0 In stock	Washer	£3.50 £2.92
21	MO125207200/0 In stock	Blade Shaft Support	£50.68 £42.23
22	MO125463200/0 In stock	Blade Boss	£9.08 £7.57
23	MO125510051/1 Available to backorder	Pin	£4.19 £3.49
24	MO125510072/1 In stock	Spacer	£1.82 £1.52
25	MO182004347/0 In stock	Left Mulching Blade	£30.97 £25.81
26	MO182004348/0 In stock	Right Mulching Blade	£30.97 £25.81
27	MO382207200/2LC Available to backorder	Main Blade Shaft Assy	£101.35 £84.46
28	MO382207201/3LC Available to backorder	Secondary Blade Shaft Assy	£91.51 £76.26
30	MO182700001/0 In stock	Anti-Scalp Wheel	£5.48 £4.57
