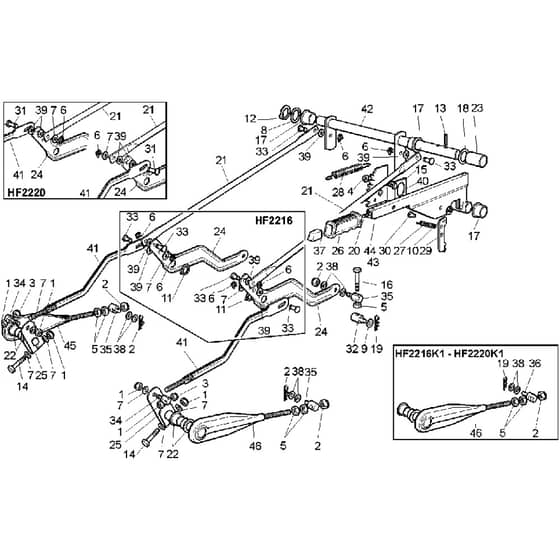

Honda HF2216-HE - Cutting Plate Lifting Diagram

Name: Honda HF2216-HE - Cutting Plate Lifting Diagram
SKU: hf2216_he_cutting_plate_lifting-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HF2216-HE - Cutting Plate Lifting Diagram

Description

Honda HF2216-HE Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80104-VK1-003 Available to backorder	Flange Nut 8Mm	£0.92 £0.77
2	MO112156602/0 In stock	Nut	£1.40 £1.17
3	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
4	MO112293201/0 In stock	Nut	£1.69 £1.41
5	MO112295200/0 In stock	Nut	£1.40 £1.17
6	MO112436050/0 In stock	Plate	£1.82 £1.52
8	MO112521410/0 Available to backorder	Washer	£1.82 £1.52
9	MO112523100/0 Available to backorder	Washer	£1.97 £1.64
10	MO112604899/0 In stock	Washer	£1.55 £1.29
11	MO112609255/0 Available to backorder	Circlip	£1.55 £1.29
12	MO112609260/0 Available to backorder	Circlip	£1.82 £1.52
13	MO112620206/0 Available to backorder	Pin	£1.40 £1.17
14	MO112691700/0 In stock	Screw	£1.82 £1.52
15	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
16	MO112794980/0 Available to backorder	Screw	£2.12 £1.77
17	MO122034523/0 Available to backorder	Bush	£1.55 £1.29
18	MO322672153/0 Available to backorder	Washer	£1.55 £1.29
19	MO124487998/0 In stock	R Clip	£0.65 £0.54
20	MO125033002/1 Available to backorder	Push Rod	£4.22 £3.52
21	MO325033029/1 Available to backorder	Rod	£19.70 £16.42
22	MO125040605/0 Available to backorder	Bush	£1.55 £1.29
23	MO125160025/1 Available to backorder	Spacer	£6.20 £5.17
24	MO25318153/0 Available to backorder	Rear Deck Lever	£24.05 £20.04
25	MO325318161/1 Available to backorder	Lever	£9.00 £7.50
26	MO125394504/1 Available to backorder	Knob	£2.53 £2.11
27	MO125430208/1 Available to backorder	Spring	£3.52 £2.93
28	MO125430218/1 Available to backorder	Deck Lift Spring	£5.76 £4.80
29	MO325470901/0 Available to backorder	Dog Plate	£19.14 £15.95
30	MO125510011/1 Available to backorder	Pin	£1.55 £1.29
32	MO125510070/1 Available to backorder	Pin	£6.20 £5.17
33	MO125510053/2 Available to backorder	Pin	£1.97 £1.64
34	MO125510055/1 Available to backorder	Pin	£4.08 £3.40
35	MO125510056/1 Available to backorder	Pin	£5.35 £4.46
37	MO125605000/1 Available to backorder	Button	£2.26 £1.88
38	MO325670008/1 In stock	Washer	£1.55 £1.29
39	MO325670011/0 Available to backorder	Washer	£1.55 £1.29
40	MO325735506/1 Available to backorder	Left Sector	£36.67 £30.56
41	MO382000477/3 Available to backorder	Connecting Rod	£18.31 £15.26
42	MO382000479/2 Available to backorder	Deck Lift Control Axle	£40.42 £33.68
43	MO382300002/1 Available to backorder	Lever	£60.54 £50.45
44	MO382318139/1 Available to backorder	Deck Lifting Lever	£40.82 £34.02
45	MO382318155/0 Available to backorder	Fulcrum Lever	£26.88 £22.40
46	MO382318157/0 Available to backorder	Fulcrum Lever	£24.49 £20.41
