Honda HF2213K2-H (8700001-8999999) - Lifting Device and Full Grass Catcher Micro Diagram

Name: Honda HF2213K2-H (8700001-8999999) - Lifting Device and Full Grass Catcher Micro Diagram
SKU: hf2213k2_h_8700001_8999999_lifting_device_and_full_grass_catcher
Price: 0.82 GBP
Availability: InStock

Part No. hf2213k2_h_8700001_8999999_lifting_device_and_full_grass_catcher

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HF2213K2-H (8700001-8999999) - Lifting Device and Full Grass Catcher Micro Diagram

Description

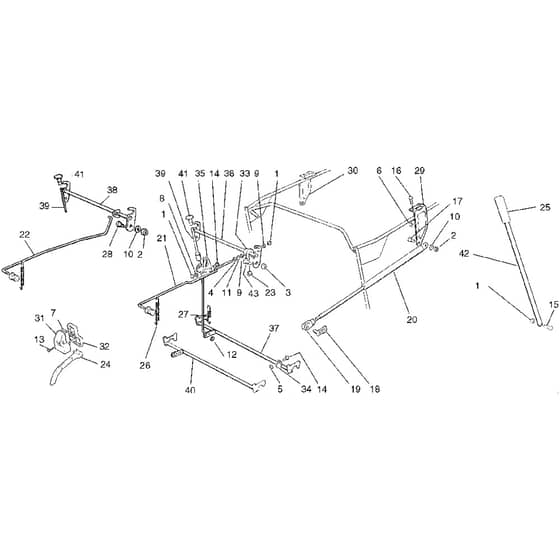

Honda HF2213K2-H (8700001-8999999) Ride On Mower Parts Diagram

	Part No.	Details
1	HP80008-Y09-003 Available to backorder	Nut	£4.26 £3.55
2	HP80104-VK1-003 In stock	Flange Nut 8Mm	£0.98 £0.82
5	MO112292102/0 In stock	Nut	£1.70 £1.42
6	MO112293201/0 In stock	Nut	£1.70 £1.42
7	MO112400030/0 Available to backorder	Pin	£1.84 £1.53
8	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
12	MO112604898/0 Available to backorder	Washer	£1.63 £1.36
13	MO112728440/0 Available to backorder	Screw	£1.39 £1.16
14	MO112791200/1 In stock	Screw	£1.55 £1.29
16	MO112792611/0 In stock	Screw	£1.55 £1.29
17	MO112793102/0 In stock	Screw	£1.55 £1.29
18	MO118210200/0 Available to backorder	Clip	£6.46 £5.38
19	MO118399000/0 Available to backorder	Fork	£17.23 £14.36
20	MO118564600/0 Available to backorder	Lifting Pistons	£67.57 £56.31
27	MO125430213/0 Available to backorder	Spring	£1.70 £1.42
28	MO125510038/0 Available to backorder	Lifting Pin	£7.74 £6.45
34	MO325774220/0 Available to backorder	Bracket	£1.63 £1.36
39	MO182000462/0 Available to backorder	Control Rod	£24.37 £20.31
41	MO382394507/0 Available to backorder	Knob	£25.14 £20.95
42	MO125869029/1 Available to backorder	Tipping	£29.57 £24.64
