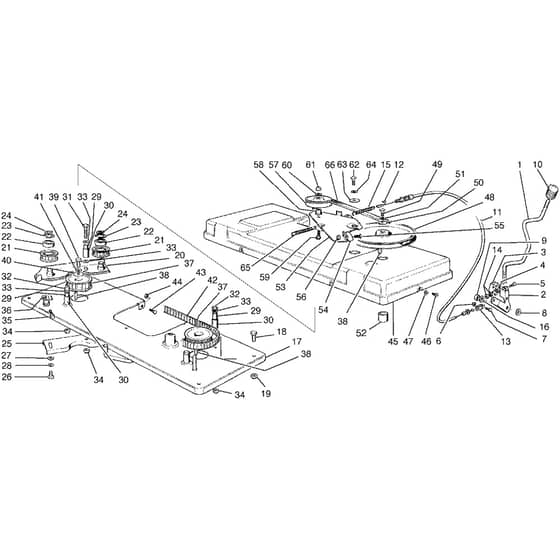

Honda HF2213K2-H (8700001-8999999) - Blade Drive Diagram

Description

Honda HF2213K2-H (8700001-8999999) Ride On Mower Parts Diagram

	Part No.	Details
1	MO125318120/0 Available to backorder	Engaging Lever	£79.46 £66.22
2	MO382774209/0 Available to backorder	Clamp Lever	£44.59 £37.16
3	MO325774211/1 Available to backorder	Bracket	£13.25 £11.04
4	MO125430206/1 Available to backorder	Spring	£12.53 £10.44
5	MO112674550/0 Available to backorder	Screw	£1.63 £1.36
6	HP80008-Y09-003 Available to backorder	Nut	£4.26 £3.55
7	MO112791213/1 In stock	Screw	£1.55 £1.29
8	MO322672151/0 Available to backorder	Washer	£1.84 £1.53
9	MO112155010/0 In stock	Nut	£2.11 £1.76
12	MO115407030/0 Available to backorder	Clip	£1.52 £1.27
13	MO322061337/0 Available to backorder	Connecting Plate	£1.55 £1.29
14	MO112292100/0 Available to backorder	Nut	£1.39 £1.16
15	MO125430211/0 Available to backorder	Spring	£22.10 £18.42
16	HP80035-Y09-003 In stock	Washer	£1.79 £1.49
18	MO112792611/0 In stock	Screw	£1.55 £1.29
19	MO112293201/0 In stock	Nut	£1.70 £1.42
20	MO382785084/3 Available to backorder	Support	£32.38 £26.98
21	MO125601559/1 In stock	Toothed Pulley	£40.82 £34.02
22	MO119216048/0 In stock	Bearing	£18.31 £15.26
23	MO112610800/0 In stock	Circlip	£1.70 £1.42
24	MO112609200/0 Available to backorder	Circlip	£1.63 £1.36
25	MO325650037/1 Available to backorder	Pulley Stiffening	£8.45 £7.04
26	MO112793102/0 In stock	Screw	£1.55 £1.29
28	HP80045-Y09-003 In stock	Washer	£1.55 £1.29
29	MO125160003/2 Available to backorder	Spacer	£1.84 £1.53
30	MO125038000/0 In stock	Bush	£1.55 £1.29
31	MO112691700/0 Available to backorder	Screw	£1.84 £1.53
32	MO112691200/0 Available to backorder	Screw	£1.70 £1.42
34	HP80104-VK1-003 In stock	Flange Nut 8Mm	£0.98 £0.82
35	MO112793900/0 Available to backorder	Screw	£1.55 £1.29
36	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
37	MO125601560/0 Available to backorder	Pulley	£54.90 £45.75
38	MO112139480/0 In stock	Key	£1.70 £1.42
40	MO125670007/0 In stock	Washer	£1.97 £1.64
42	MO135065605/0LC In stock	Belt	£91.60 £76.33
43	MO112815200/0 In stock	Screw	£1.55 £1.29
44	MO112292102/0 In stock	Nut	£1.70 £1.42
46	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
48	MO125601550/0 Available to backorder	Pulley	£43.49 £36.24
52	MO125160002/1 Available to backorder	Spacer	£4.37 £3.64
54	MO125207000/1 In stock	Brake Pad	£33.79 £28.16
56	HP80001-VJ5-003 Available to backorder	Lock Nut 5Mm	£0.73 £0.61
57	MO125601555/0 In stock	Pulley	£29.28 £24.40
58	MO125160007/1 Available to backorder	Spacer	£3.25 £2.71
59	MO112818900/0 In stock	Screw	£1.55 £1.29
63	HP80036-Y09-003 In stock	Washer	£6.01 £5.01
65	MO125430210/1 Available to backorder	Brake Spring	£2.82 £2.35
66	MO135062813/1 In stock	Belt	£39.06 £32.55
