Honda HF2213K2-H (8000001-8999999) - Lifting Device and Full Grass Catcher Micro Diagram

Description

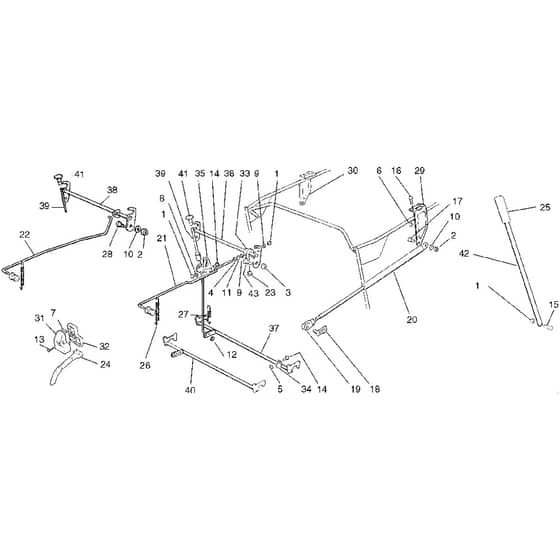

Honda HF2213K2-H (8000001-8999999) Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80008-Y09-003 Available to backorder	Nut	£4.08 £3.40
2	HP80104-VK1-003 Available to backorder	Flange Nut 8Mm	£0.92 £0.77
5	MO112292102/0 In stock	Nut	£1.69 £1.41
6	MO112293201/0 In stock	Nut	£1.69 £1.41
7	MO112400030/0 Available to backorder	Pin	£1.82 £1.52
8	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
12	MO112604898/0 Available to backorder	Washer	£1.55 £1.29
13	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
14	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
16	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
17	MO112793102/0 In stock	Screw	£1.55 £1.29
18	MO118210200/0 Available to backorder	Clip	£6.47 £5.39
19	MO118399000/0 Available to backorder	Fork	£17.24 £14.37
20	MO118564600/0 Available to backorder	Lifting Pistons	£67.57 £56.31
27	MO125430213/0 Available to backorder	Spring	£1.69 £1.41
28	MO125510038/0 Available to backorder	Lifting Pin	£7.74 £6.45
34	MO325774220/0 In stock	Bracket	£1.55 £1.29
39	MO182000462/0 Available to backorder	Control Rod	£24.36 £20.30
41	MO382394507/0 Available to backorder	Knob	£25.13 £20.94
42	MO125869029/1 Available to backorder	Tipping	£29.56 £24.63
