Honda HF2114K2-SE - Cutting Plate Lifting Diagram

Name: Honda HF2114K2-SE - Cutting Plate Lifting Diagram
SKU: hf2114k2_se_cutting_plate_lifting-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

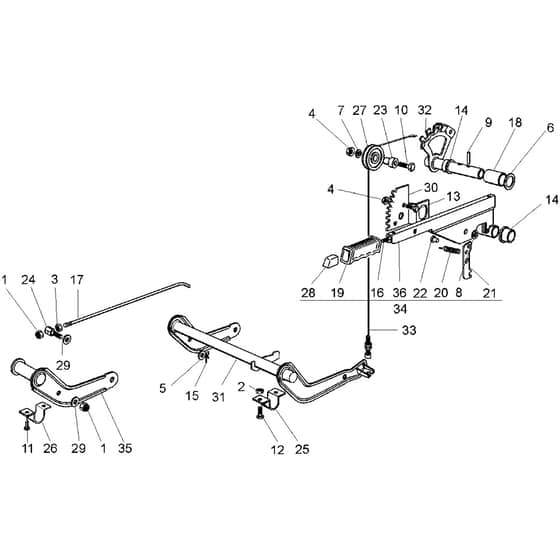

Honda HF2114K2-SE - Cutting Plate Lifting Diagram

Description

Honda HF2114K2-SE Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80104-VK1-003 Available to backorder	Flange Nut 8Mm	£0.92 £0.77
2	MO112292102/0 In stock	Nut	£1.69 £1.41
3	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
4	MO112293201/0 In stock	Nut	£1.69 £1.41
6	MO112521410/0 Available to backorder	Washer	£1.82 £1.52
7	HP80035-Y09-003 Available to backorder	Washer	£1.58 £1.32
8	MO112604899/0 In stock	Washer	£1.55 £1.29
9	MO112620206/0 Available to backorder	Pin	£1.40 £1.17
10	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
11	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
13	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
14	MO122034523/0 Available to backorder	Bush	£1.55 £1.29
15	MO124487997/0 Available to backorder	Spring Clip	£1.55 £1.29
16	MO125033002/1 Available to backorder	Push Rod	£4.22 £3.52
17	MO125033013/0 Available to backorder	Connecting Rod	£36.59 £30.49
19	MO125394504/1 Available to backorder	Knob	£2.53 £2.11
20	MO125430208/1 Available to backorder	Spring	£3.52 £2.93
21	MO325470901/0 Available to backorder	Dog Plate	£19.14 £15.95
22	MO125510011/1 Available to backorder	Pin	£1.55 £1.29
23	MO125510032/0 Available to backorder	Pin	£7.81 £6.51
24	MO125510040/2 Available to backorder	Pin Bolt	£5.76 £4.80
25	MO325547037/2 Available to backorder	Fixing Plate	£3.38 £2.82
26	MO325547041/1 Available to backorder	Plate	£5.35 £4.46
27	MO125601557/0 Available to backorder	Pulley	£13.58 £11.32
28	MO125605000/1 Available to backorder	Button	£2.26 £1.88
29	MO325670011/0 Available to backorder	Washer	£1.55 £1.29
30	MO325735506/1 Available to backorder	Left Sector	£36.67 £30.56
31	MO382000381/2 Available to backorder	Lift Axle	£74.62 £62.18
33	MO182004603/0 Available to backorder	Deck Lift Cable	£23.15 £19.29
34	MO382300002/1 Available to backorder	Lever	£60.54 £50.45
35	MO382318137/0 Available to backorder	Fulcrum Lever	£35.20 £29.33
36	MO382318139/1 Available to backorder	Deck Lifting Lever	£40.82 £34.02
