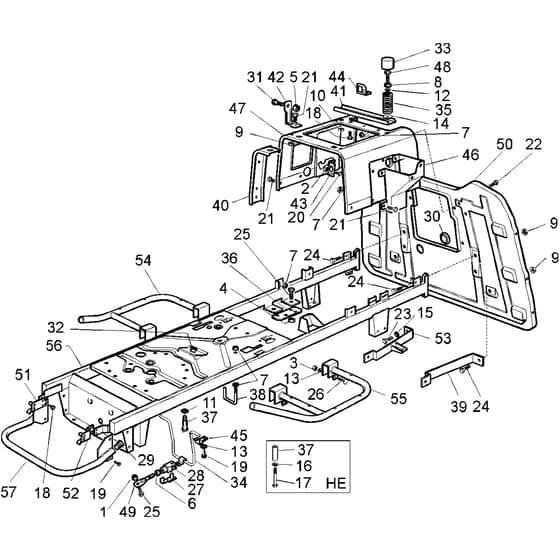

Honda HF2114K1-SE Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HP80001-VJ5-003 Available to backorder	Lock Nut 5Mm	£0.74 £0.62
3	HP80008-Y09-003 Available to backorder	Nut	£4.08 £3.40
4	HP80104-VK1-003 Available to backorder	Flange Nut 8Mm	£0.92 £0.77
5	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
7	MO112292102/0 In stock	Nut	£1.69 £1.41
8	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
9	MO112293201/0 In stock	Nut	£1.69 £1.41
10	MO112360420/0 Available to backorder	Nut	£1.55 £1.29
11	MO112360425/0 Available to backorder	Nut	£1.82 £1.52
12	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
13	HP80034-Y09-003 Available to backorder	Washer	£1.00 £0.83
14	HP80035-Y09-003 Available to backorder	Washer	£1.58 £1.32
15	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
18	MO112731580/0 Available to backorder	Screw	£1.55 £1.29
19	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
20	HP80090-Y09-003 Available to backorder	Screw	£2.82 £2.35
22	MO112790781/0 In stock	Screw	£1.55 £1.29
24	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
25	MO112793102/0 In stock	Screw	£1.55 £1.29
26	MO112815245/0 Available to backorder	Screw	£1.55 £1.29
29	MO118566110/0 Available to backorder	Handle Cap	£1.55 £1.29
31	MO122524970/2 Available to backorder	Seat Fulcrum Pin	£1.90 £1.58
33	MO325122000/2 Available to backorder	Protection Cap	£1.55 £1.29
35	MO125430205/1 Available to backorder	Spring	£5.92 £4.93
37	MO125580023/0 Available to backorder	Belt Guide	£7.81 £6.51
38	MO125580019/1 Available to backorder	Belt Guide	£3.94 £3.28
43	MO325755016/0 Available to backorder	Plate	£1.97 £1.64
48	MO125943001/0 Available to backorder	Screw	£1.55 £1.29
