Honda HF2114K1-SE - Brake and Gearbox Contro Diagram

Description

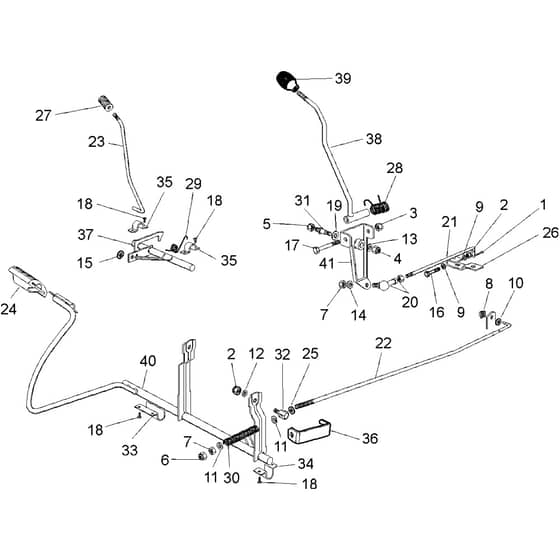

Honda HF2114K1-SE Ride On Mower Parts Diagram

	Part No.	Details
1	MO112141418/0 In stock	Cotter Pin	£1.55 £1.29
2	HP80008-Y09-003 Available to backorder	Nut	£4.26 £3.55
3	HP80104-VK1-003 In stock	Flange Nut 8Mm	£0.98 £0.82
4	MO112155010/0 In stock	Nut	£2.11 £1.76
6	MO112156602/0 In stock	Nut	£1.39 £1.16
7	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
8	MO112436050/0 In stock	Plate	£1.84 £1.53
9	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
11	MO112521360/0 In stock	Washer	£1.55 £1.29
12	HP80034-Y09-003 Available to backorder	Washer	£1.03 £0.86
13	HP80035-Y09-003 In stock	Washer	£1.79 £1.49
14	HP80045-Y09-003 In stock	Washer	£1.55 £1.29
15	MO112604898/0 Available to backorder	Washer	£1.63 £1.36
16	MO112689500/0 Available to backorder	Screw	£1.63 £1.36
17	MO112692050/0 In stock	Screw	£1.84 £1.53
18	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
19	MO322672151/0 Available to backorder	Washer	£1.84 £1.53
20	MO122746601/0 Available to backorder	Articulation Joint	£19.14 £15.95
21	MO125033012/0 Available to backorder	Rod	£10.00 £8.33
22	MO125033036/0 Available to backorder	Rod	£36.59 £30.49
24	MO125110269/0 Available to backorder	Brake Pedal Cover	£3.66 £3.05
25	MO125160026/0 Available to backorder	Spacer	£6.77 £5.64
26	MO325318128/1 Available to backorder	Gearshift	£4.64 £3.87
28	MO125430226/0 Available to backorder	Spring	£2.24 £1.87
30	MO25430236/0 Available to backorder	Brake Rod Spring	£1.55 £1.29
31	MO125510035/0 In stock	Pin	£3.66 £3.05
33	MO325547039/0 Available to backorder	Plate	£4.50 £3.75
34	MO325547041/1 Available to backorder	Plate	£5.34 £4.45
35	MO325547049/0 Available to backorder	Axle Fixing Plate	£3.10 £2.58
36	MO325774275/1 Available to backorder	Clamp	£3.52 £2.93
37	MO382000361/0 Available to backorder	Axle	£26.48 £22.07
38	MO382318134/0 Available to backorder	Gear Control Lever	£45.04 £37.53
39	MO182394509/0 Available to backorder	Knob	£30.83 £25.69
40	MO382500002/1 Available to backorder	Brake Pedal	£64.75 £53.96
