Honda HF2114K1-HE - Transmission Group Diagram

Name: Honda HF2114K1-HE - Transmission Group Diagram
SKU: hf2114k1_he_transmission_group-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

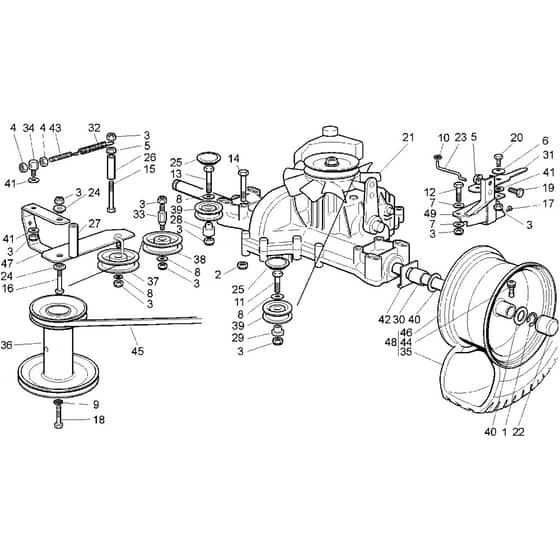

Honda HF2114K1-HE - Transmission Group Diagram

Description

Honda HF2114K1-HE Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112001010/0 Available to backorder	Circlip	£1.82 £1.52
2	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
3	HP80104-VK1-003 Available to backorder	Flange Nut 8Mm	£0.92 £0.77
4	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
5	MO112293201/0 In stock	Nut	£1.69 £1.41
6	HP80057-Y10-003 Available to backorder	Elastic Washer	£2.17 £1.81
8	HP80035-Y09-003 Available to backorder	Washer	£1.58 £1.32
9	MO112543000/0 Available to backorder	Washer	£1.55 £1.29
10	MO112604896/0 Available to backorder	Washer	£1.55 £1.29
11	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
12	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
13	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
14	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
15	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
16	MO112692080/0 Available to backorder	Screw	£1.55 £1.29
17	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
18	MO112737310/0 Available to backorder	Screw	£2.95 £2.46
19	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
20	MO112793102/0 In stock	Screw	£1.55 £1.29
21	MO118400960/0 Available to backorder	Hydrostatic Transaxle	£1,394.03 £1,161.69
22	HP80143-Y09-003 Available to backorder	Hub Cover	£1.68 £1.40
23	MO125033033/1 Available to backorder	Rod	£2.12 £1.77
24	MO125038002/1 In stock	Bush	£1.55 £1.29
25	MO125109521/1 Available to backorder	Cover	£1.55 £1.29
28	MO125160024/2 In stock	Spacer	Was £8.29 £6.91 Special Price £5.27 £4.39
29	MO125160030/2 Available to backorder	Spacer	£6.47 £5.39
30	MO125160031/0 Available to backorder	Spacer	£3.38 £2.82
31	MO325318157/0 Available to backorder	Lever	£5.35 £4.46
32	MO125430219/1 Available to backorder	Spring	£3.67 £3.06
34	MO125510040/2 Available to backorder	Pin Bolt	£5.76 £4.80
35	MO382680067/0 Available to backorder	Tyre	£188.53 £157.11
37	MO125601554/0 In stock	Pulley	£25.68 £21.40
38	MO125601555/0 In stock	Pulley	£29.28 £24.40
39	MO325601570/1 Available to backorder	Belt Pulley	£24.36 £20.30
40	MO125670005/2 In stock	Washer	£4.08 £3.40
41	MO325670011/0 Available to backorder	Washer	£1.55 £1.29
43	MO125840005/0 Available to backorder	Tie Rod	£2.95 £2.46
44	MO125950000/0 Available to backorder	Valve	£5.35 £4.46
45	HPCG35061980H0 Available to backorder		£73.82 £61.52
46	MO182000592/0 Available to backorder	Rear Wheel Rim	£109.79 £91.49
49	MO382785117/0 Available to backorder	Support Bracket	£37.79 £31.49
