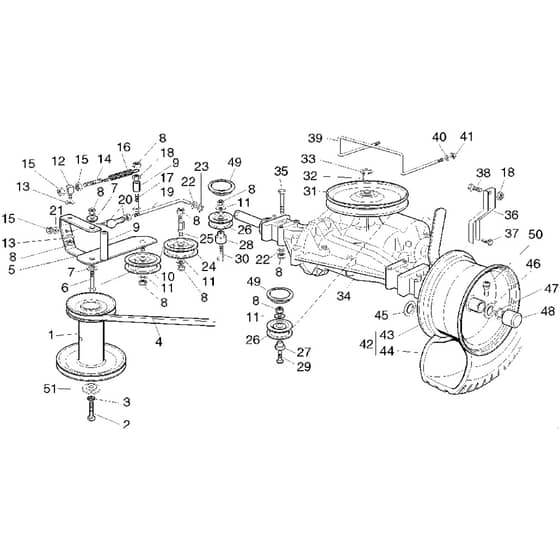

Honda HF2113-SE - Transmission Group Diagram

Description

Honda HF2113-SE Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125601547/1 Available to backorder	Pulley	£220.26 £183.55
2	MO112737310/0 Available to backorder	Screw	£2.95 £2.46
3	MO112543000/0 Available to backorder	Washer	£1.55 £1.29
4	MO135062000/1 In stock	Transmission Belt	£32.32 £26.93
6	MO112692080/0 Available to backorder	Screw	£1.55 £1.29
7	MO125038002/1 In stock	Bush	£1.55 £1.29
8	HP80104-VK1-003 Available to backorder	Flange Nut 8Mm	£0.92 £0.77
10	MO125601554/0 In stock	Pulley	£25.68 £21.40
11	HP80035-Y09-003 Available to backorder	Washer	£1.58 £1.32
12	MO125510040/2 Available to backorder	Pin Bolt	£5.76 £4.80
13	MO325670011/0 Available to backorder	Washer	£1.55 £1.29
14	MO125840005/0 Available to backorder	Tie Rod	£2.95 £2.46
15	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
16	MO125430219/1 Available to backorder	Spring	£3.67 £3.06
17	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
17	MO125943001/0 Available to backorder	Screw	£1.55 £1.29
18	MO112293201/0 In stock	Nut	£1.69 £1.41
19	MO125840002/0 Available to backorder	Tie Rod	£18.59 £15.49
20	MO122746601/0 Available to backorder	Articulation Joint	£19.14 £15.95
21	HP80045-Y09-003 Available to backorder	Washer	£1.55 £1.29
23	MO112604899/0 In stock	Washer	£1.55 £1.29
24	MO125601555/0 In stock	Pulley	£29.28 £24.40
27	MO125160018/1 Available to backorder	Spacer	£6.76 £5.63
28	MO125160014/1 Available to backorder	Spacer	£7.61 £6.34
29	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
30	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
31	MO182601503/0 Available to backorder	Pulley	£101.35 £84.46
32	MO112139430/0 In stock	Key	£1.97 £1.64
33	MO112608950/0 Available to backorder	Circlip	£1.55 £1.29
34	MO382840101/0 Available to backorder	Gear Box	£759.42 £632.85
35	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
36	MO325774247/0 Available to backorder	Bracket	£11.40 £9.50
37	MO112735150/0 Available to backorder	Screw	£1.69 £1.41
38	HP80098-Y09-003 In stock	Screw	£1.24 £1.03
40	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
41	MO112292102/0 In stock	Nut	£1.69 £1.41
42	MO382680067/0 Available to backorder	Wheel Assembly	£188.53 £157.11
43	MO182000592/0 Available to backorder	Rear Wheel Rim	£109.79 £91.49
45	MO112521410/0 Available to backorder	Washer	£1.82 £1.52
46	MO125670005/2 In stock	Washer	£4.08 £3.40
47	MO112001010/0 Available to backorder	Circlip	£1.82 £1.52
48	HP80143-Y09-003 Available to backorder	Hub Cover	£1.68 £1.40
49	MO125109521/1 Available to backorder	Cover	£1.55 £1.29
50	MO125950000/0 Available to backorder	Valve	£5.35 £4.46
