Honda HF2113-SE - Cutting Plate (1) Diagram

Name: Honda HF2113-SE - Cutting Plate (1) Diagram
SKU: hf2113_se_cutting_plate_1_-group
Price: 0.61 GBP
Availability: InStock

Part No. hf2113_se_cutting_plate_1_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HF2113-SE - Cutting Plate (1) Diagram

Description

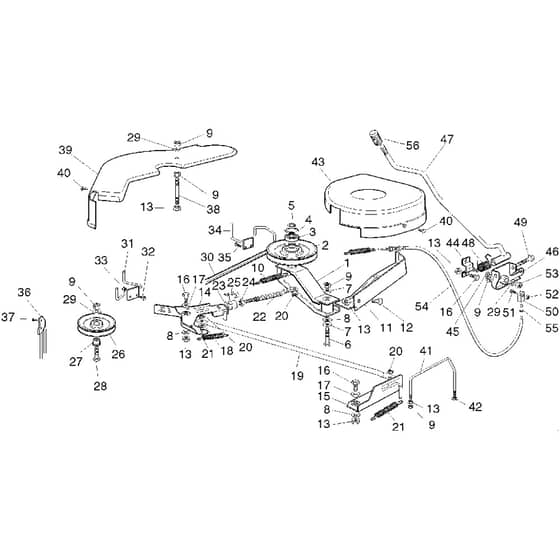

Honda HF2113-SE Ride On Mower Parts Diagram

	Part No.	Details
2	MO125601564/1 Available to backorder	Pulley	£45.04 £37.53
3	MO119216048/0 In stock	Bearing	£18.31 £15.26
4	MO112610800/0 In stock	Circlip	£1.70 £1.42
5	MO112609200/0 Available to backorder	Circlip	£1.63 £1.36
6	MO112691700/0 Available to backorder	Screw	£1.84 £1.53
7	HP80036-Y09-003 In stock	Washer	£6.01 £5.01
8	MO322672152/0 Available to backorder	Washer	£1.84 £1.53
9	HP80104-VK1-003 In stock	Flange Nut 8Mm	£0.98 £0.82
10	MO122450500/0 Available to backorder	Spring	£3.10 £2.58
11	MO382774215/3 Available to backorder	Clamp Bracket	£30.98 £25.82
12	HP80098-Y09-003 Available to backorder	Screw	£1.28 £1.07
13	MO112293201/0 In stock	Nut	£1.70 £1.42
14	MO382318143/2 Available to backorder	Brake Lever	£39.42 £32.85
15	MO382318148/0 Available to backorder	Brake Lever	£26.64 £22.20
16	MO112792611/0 In stock	Screw	£1.55 £1.29
17	MO122041980/0 Available to backorder	Bush	£1.55 £1.29
18	MO325670011/0 Available to backorder	Washer	£1.55 £1.29
19	MO325033024/0 Available to backorder	Connecting Rod	£13.15 £10.96
20	MO112436050/0 In stock	Plate	£1.84 £1.53
23	MO118399000/0 Available to backorder	Fork	£17.23 £14.36
24	MO112292100/0 Available to backorder	Nut	£1.39 £1.16
25	MO118210200/0 Available to backorder	Clip	£6.46 £5.38
26	MO125601555/0 In stock	Pulley	£29.28 £24.40
27	MO125160007/1 Available to backorder	Spacer	£3.25 £2.71
28	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
29	HP80035-Y09-003 In stock	Washer	£1.79 £1.49
30	MO135065700/0 In stock	Drive Belt	£109.09 £90.91
31	MO125270300/0 Available to backorder	Belt Guide	£25.49 £21.24
32	HP80090-Y09-003 Available to backorder	Screw	£2.77 £2.31
33	HP80001-VJ5-003 Available to backorder	Lock Nut 5Mm	£0.73 £0.61
34	MO125270301/0 Available to backorder	Belt Guide	£43.34 £36.12
35	MO112729600/0 Available to backorder	Screw	£1.55 £1.29
36	MO125270304/1 Available to backorder	Belt Guide	£20.40 £17.00
37	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
39	MO125060102/0 In stock	Right Belt Guard	£6.64 £5.53
40	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
42	MO112292102/0 In stock	Nut	£1.70 £1.42
43	MO125060103/0 Available to backorder	Left Belt Guard	£9.65 £8.04
44	MO382785073/0 Available to backorder	Support Bracket	£30.98 £25.82
45	MO322672151/0 Available to backorder	Washer	£1.84 £1.53
47	MO382318135/0 Available to backorder	Lever	£71.52 £59.60
49	MO112692050/0 In stock	Screw	£1.84 £1.53
50	MO322061337/0 Available to backorder	Connecting Plate	£1.55 £1.29
51	MO112791213/1 In stock	Screw	£1.55 £1.29
52	HP80008-Y09-003 Available to backorder	Nut	£4.26 £3.55
53	MO112155010/0 In stock	Nut	£2.11 £1.76
54	MO382004604/3 In stock	Blade Engage Cable	£39.42 £32.85
55	HP80034-Y09-003 Available to backorder	Washer	£1.03 £0.86
