Honda HF1211K3-HE - Electrical Parts Group Diagram

Description

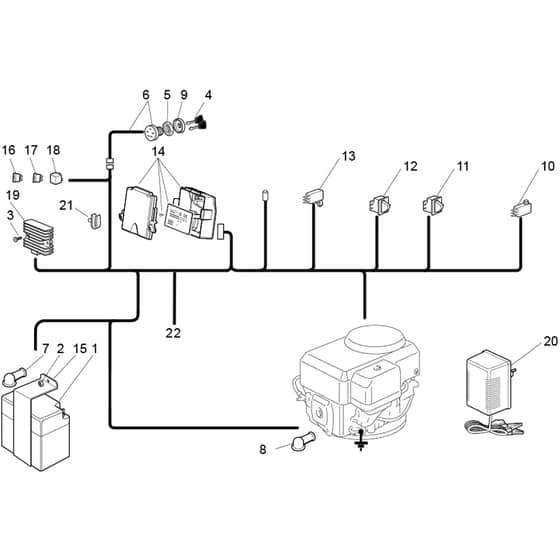

Honda HF1211K3-HE Ride On Mower Parts Diagram

	Part No.	Details
1	MO118120068/0 In stock	Battery	£113.47 £94.56
2	HP80104-VK1-003 In stock	Flange Nut 8Mm	£0.98 £0.82
3	MO112728450/0 In stock	Screw	£1.55 £1.29
4	MO118210016/1 Available to backorder	Ignition Key	£12.80 £10.67
5	MO118400861/0 Available to backorder	Locking Nut	£6.05 £5.04
7	MO118564864/1 Available to backorder	Rubber Terminal Cover	£5.92 £4.93
8	MO118564861/2 In stock	Rubber Terminal Cover	£6.77 £5.64
9	MO118565351/0 Available to backorder	Locking Ring Cover	£7.02 £5.85
10	MO119410605/1 In stock	Micro Switch	£39.42 £32.85
11	MO119410622/1 In stock	Micro Switch	£6.64 £5.53
12	MO119410623/0 In stock	Micro Switch	£7.62 £6.35
13	MO119410609/1LC In stock	Micro Switch Kedu	£27.17 £22.64
14	MO382722473/2 Available to backorder	Pc Board	£110.58 £92.15
15	MO327772099/1 Available to backorder	Clamp	£5.64 £4.70
16	MO133340036/0 Available to backorder	Fuse	£1.70 £1.42
17	MO133340040/0 Available to backorder	Fuse	£2.24 £1.87
18	MO133567000/0 Available to backorder	Relay	£13.60 £11.33
20	MO1134-9250-01 In stock	Battery Charger Kit	£60.08 £50.07
21	MO133320506/0 Available to backorder	Cable Clip	£1.39 £1.16
