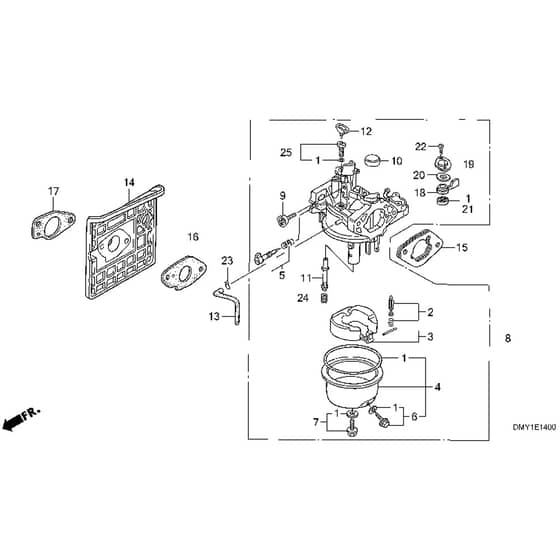

Honda HF1211K2-SE (2000001-2499999) - Carburettor Diagram

Description

Honda HF1211K2-SE (2000001-2499999) Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16010-ZE2-015 Available to backorder	Gasket Set	£22.32 £18.60
2	HP16011-ZA0-931 Available to backorder	Float Valve Set	£46.21 £38.51
3	HP16013-Z1C-003 In stock	Float Set	£34.12 £28.43
4	HP16015-ZE8-005 Available to backorder	Float Bowl Set	£60.24 £50.20
5	HP16016-ZH7-W01 Available to backorder	Pilot Screw Set	£20.83 £17.36
6	HP16024-ZE1-811 Available to backorder	Drain Screw Set	£13.56 £11.30
7	HP16028-ZK7-S91 Available to backorder	Screw Set	£14.59 £12.16
8	HP16100-Z1F-W02 Available to backorder	Carburetor Assy	£171.36 £142.80
9	HP16124-ZE0-005 Available to backorder	Throttle Stop Screw	£12.92 £10.77
10	HP16148-141-881 Available to backorder	Choke Dust Cap	£6.58 £5.48
11	HP16166-ZE9-W01 Available to backorder	Main Nozzle	£34.86 £29.05
12	HP16172-ZE3-W10 Available to backorder	Setting Collar	£8.11 £6.76
13	HP16199-ZE8-000 Available to backorder	Air Vent Tube	£7.16 £5.97
14	HP16211-ZE9-601 Available to backorder	Carburettor Insulator	£20.93 £17.44
15	HP16220-ZA0-702 Available to backorder	Carburettor Spacer	£18.08 £15.07
16	HP16221-ZE3-800 Available to backorder	Carburettor Gasket	£3.06 £2.55
17	HP16223-ZE9-800 Available to backorder	Insulator Gasket	£3.56 £2.97
18	HP16953-ZE1-712 Available to backorder	Cock Lever	£13.20 £11.00
19	HP16954-ZE1-812 Available to backorder	Lever Setting Plate	£7.36 £6.13
20	HP16956-ZE1-811 Available to backorder	Valve Lever Spring	£4.43 £3.69
21	HP16957-ZE1-812 Available to backorder	Fuel Tap Gasket	£4.46 £3.72
22	HP93500-030060H Available to backorder	Cross Screw 3 X 6	£1.48 £1.23
23	HP95002-02080 Available to backorder	Tube Clip	£1.08 £0.90
24	HP99101-ZH8-0900 Available to backorder	Main Jet	£11.58 £9.65
24	HP99101-ZH80880 Available to backorder	Main Jet	£11.58 £9.65
24	HP99101-ZH8-0920 Available to backorder	Main Jet	£11.58 £9.65
25	HP99204-ZE00380 Available to backorder	Jet Kit	£25.39 £21.16
