Honda HF1211K2-SE (1000001-1099999) - Chassis Diagram

Description

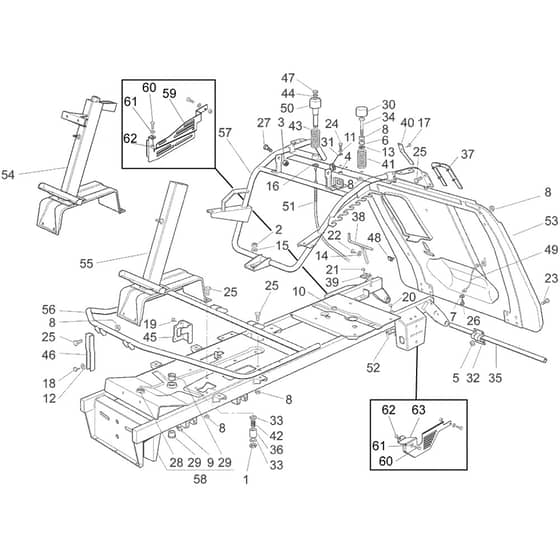

Honda HF1211K2-SE (1000001-1099999) Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112000955/0 Available to backorder	Circlip	£1.33 £1.11
2	HP80104-VK1-003 Available to backorder	Flange Nut 8Mm	£0.92 £0.77
5	MO112292102/0 In stock	Nut	£1.69 £1.41
6	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
8	MO112293201/0 In stock	Nut	£1.69 £1.41
9	MO112379511/0 Available to backorder	Straight Grease Nipple	£1.55 £1.29
10	MO112500091/1 Available to backorder	Nut	£5.48 £4.57
11	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
12	MO112521331/0 Available to backorder	Washer	£1.55 £1.29
14	HP80034-Y09-003 Available to backorder	Washer	£1.00 £0.83
15	HP80035-Y09-003 Available to backorder	Washer	£1.58 £1.32
16	MO112609200/0 Available to backorder	Circlip	£1.55 £1.29
17	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
18	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
20	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
23	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
24	MO112791213/1 In stock	Screw	£1.55 £1.29
25	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
28	MO125034001/0 Available to backorder	Bush	£3.79 £3.16
29	MO125034002/1 Available to backorder	Bush	£3.79 £3.16
30	MO325122000/2 Available to backorder	Protection Cap	£1.55 £1.29
31	MO125430239/1 Available to backorder	Spring	£1.97 £1.64
32	MO325547012/1 Available to backorder	Brake Pedal Plate	£4.22 £3.52
33	MO325670008/1 In stock	Washer	£1.55 £1.29
35	MO127037000/1 Available to backorder	Rear Plate Fulcrum Axle	£8.87 £7.39
36	MO127047012/0 Available to backorder	Bush	£13.09 £10.91
38	MO127294001/0 Available to backorder	Rear Conveyor Guide	£20.40 £17.00
39	MO127294002/0 Available to backorder	Belt Guide	£6.20 £5.17
40	MO127430600/0 Available to backorder	Spring	£2.81 £2.34
41	MO127430575/0 Available to backorder	Spring	£6.20 £5.17
42	MO127430577/0 Available to backorder	Spring	£5.92 £4.93
43	MO127430581/0 Available to backorder	Spring	£4.22 £3.52
46	MO327787025/0 Available to backorder	Frame Support	£3.10 £2.58
49	MO384040300/0 Available to backorder	Cord	£3.38 £2.82
51	MO184207106/0 Available to backorder	Cable	£29.56 £24.63
52	MO184250053/0 Available to backorder	Belt Guide	£8.38 £6.98
53	MO384545057/3 Available to backorder	Rear Plate	£161.89 £134.91
55	MO384783027/0 Available to backorder	Steering Column Support	£53.50 £44.58
56	MO384801107/3 Available to backorder	Footboard Support	£50.68 £42.23
58	MO384801135/2 Available to backorder	Frame Assy	£422.32 £351.93
