Honda HF1211K1-SE - Chassis Diagram

Name: Honda HF1211K1-SE - Chassis Diagram
SKU: hf1211k1_se_chassis-group
Price: 0.77 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

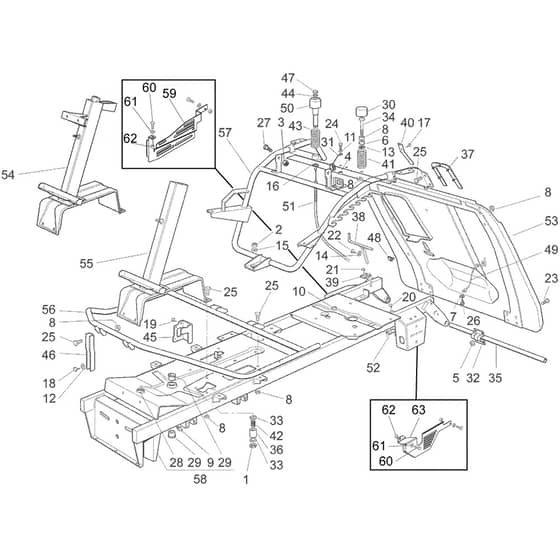

Honda HF1211K1-SE Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HP80104-VK1-003 Available to backorder	Flange Nut 8Mm	£0.92 £0.77
3	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
5	MO112292102/0 In stock	Nut	£1.69 £1.41
8	MO112293201/0 In stock	Nut	£1.69 £1.41
9	MO112379511/0 Available to backorder	Straight Grease Nipple	£1.55 £1.29
10	MO112500091/1 Available to backorder	Nut	£5.48 £4.57
12	MO112521331/0 Available to backorder	Washer	£1.55 £1.29
14	HP80034-Y09-003 Available to backorder	Washer	£1.00 £0.83
15	HP80035-Y09-003 Available to backorder	Washer	£1.58 £1.32
17	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
18	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
21	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
23	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
25	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
27	MO122524970/2 Available to backorder	Seat Fulcrum Pin	£1.90 £1.58
29	MO125034002/1 Available to backorder	Bush	£3.79 £3.16
30	MO325122000/2 Available to backorder	Protection Cap	£1.55 £1.29
32	MO325547012/1 Available to backorder	Brake Pedal Plate	£4.22 £3.52
34	MO125943001/0 Available to backorder	Screw	£1.55 £1.29
35	MO127037000/1 Available to backorder	Rear Plate Fulcrum Axle	£8.87 £7.39
39	MO127294002/0 Available to backorder	Belt Guide	£6.20 £5.17
40	MO127430600/0 Available to backorder	Spring	£2.81 £2.34
46	MO327787025/0 Available to backorder	Frame Support	£3.10 £2.58
48	HP80301-Y09-003 Available to backorder	Support	£2.17 £1.81
49	MO384040300/0 Available to backorder	Cord	£3.38 £2.82
53	MO384545057/3 Available to backorder	Rear Plate	£161.89 £134.91
56	MO384801107/3 Available to backorder	Footboard Support	£50.68 £42.23
