Honda HF1211-HE (88000001-899999) - Transmission Group Diagram

Description

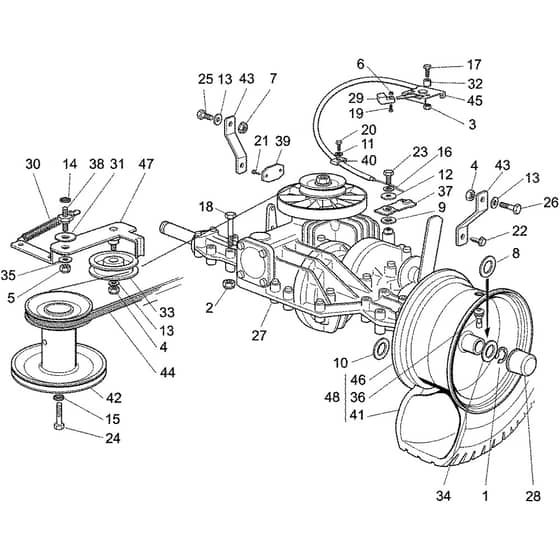

Honda HF1211-HE (88000001-899999) Ride On Mower Parts Diagram

	Part No.	Details
1	MO112001010/0 In stock	Circlip	£1.84 £1.53
2	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
3	HP80008-Y09-003 Available to backorder	Nut	£4.26 £3.55
4	HP80104-VK1-003 In stock	Flange Nut 8Mm	£0.98 £0.82
5	MO112155010/0 In stock	Nut	£2.11 £1.76
6	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
7	MO112293201/0 In stock	Nut	£1.70 £1.42
8	MO112520010/0 Available to backorder	Washer	£2.24 £1.87
9	MO112521370/0 Available to backorder	Washer	£1.63 £1.36
10	MO112521410/0 Available to backorder	Washer	£1.92 £1.60
11	MO112523020/0 In stock	Washer	£1.55 £1.29
12	MO112523050/0 In stock	Washer	£1.57 £1.31
13	HP80035-Y09-003 In stock	Washer	£1.79 £1.49
14	MO112540260/0 Available to backorder	Washer	£1.63 £1.36
15	MO112543000/0 Available to backorder	Washer	£1.63 £1.36
16	MO112582100/0 Available to backorder	Washer	£1.63 £1.36
17	MO112674550/0 Available to backorder	Screw	£1.63 £1.36
18	MO112691800/0 Available to backorder	Screw	£1.63 £1.36
20	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
22	MO112735150/0 Available to backorder	Screw	£1.70 £1.42
23	MO112735520/0 Available to backorder	Screw	£1.55 £1.29
24	MO112737310/0 Available to backorder	Screw	£2.94 £2.45
25	MO112793102/0 In stock	Screw	£1.55 £1.29
26	MO112793301/0 Available to backorder	Screw	£1.55 £1.29
28	HP80143-Y09-003 In stock	Hub Cover	£1.85 £1.54
29	MO122399801/0 Available to backorder	Knob	£1.52 £1.27
30	MO122446402/1 Available to backorder	Spring	£5.06 £4.22
31	MO322672151/0 Available to backorder	Washer	£1.84 £1.53
32	MO125160012/0 Available to backorder	Spacer	£15.76 £13.13
33	MO125601554/0 In stock	Pulley	£25.66 £21.38
34	MO125670005/2 In stock	Washer	£4.08 £3.40
35	MO325670011/0 Available to backorder	Washer	£1.55 £1.29
36	MO125950000/0 In stock	Valve	£5.34 £4.45
38	MO127510096/0 Available to backorder	Fulcrum Pin	£4.78 £3.98
39	MO327546019/0 Available to backorder	Fixing Plate	£1.39 £1.16
41	MO127590051/0 In stock	Tyre	£51.97 £43.31
42	MO127604005/0 Available to backorder	Pulley	£92.21 £76.84
43	MO327772067/0 Available to backorder	Clamp	£2.94 £2.45
44	MO135061405/0 Available to backorder	Transmission Belt	£36.37 £30.31
45	MO181007092/0 Available to backorder	Throttle Cable	£26.75 £22.29
46	MO184044001/0 Available to backorder	Rear Wheel Rim	£76.02 £63.35
47	MO384317067/1 Available to backorder	Lever	£17.87 £14.89
48	MO384680079/0 Available to backorder	Rear Wheel Assy	£101.34 £84.45
