Honda HF1211-HE (88000001-899999) - Drive and Brake Control Unit Diagram

Description

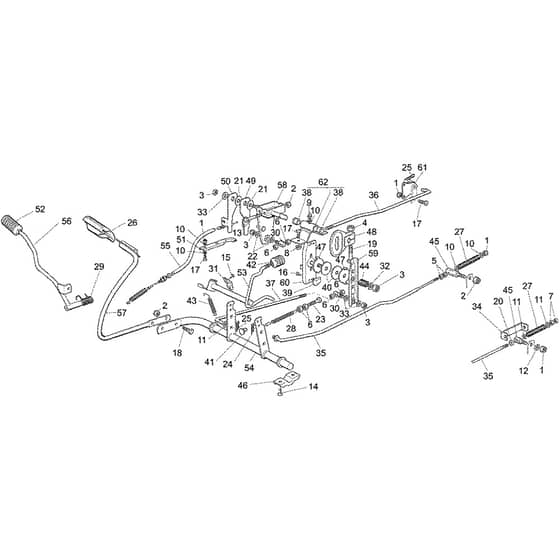

Honda HF1211-HE (88000001-899999) Ride On Mower Parts Diagram

	Part No.	Details
1	HP80008-Y09-003 Available to backorder	Nut	£4.26 £3.55
2	HP80104-VK1-003 In stock	Flange Nut 8Mm	£0.98 £0.82
3	MO112155010/0 In stock	Nut	£2.11 £1.76
4	MO112155020/0 In stock	Nut	£1.70 £1.42
5	MO112292100/0 Available to backorder	Nut	£1.39 £1.16
6	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
8	MO112293201/0 In stock	Nut	£1.70 £1.42
9	MO112379511/0 Available to backorder	Straight Grease Nipple	£1.55 £1.29
10	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
12	MO112523050/0 In stock	Washer	£1.57 £1.31
13	MO112692050/0 In stock	Screw	£1.84 £1.53
14	HP80029-Y10-003 Available to backorder	Screw	£1.22 £1.02
15	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
16	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
17	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
18	MO112793301/0 Available to backorder	Screw	£1.55 £1.29
19	MO112794900/0 Available to backorder	Screw	£1.79 £1.49
20	HP80050-Y10-003 Available to backorder	Spacer	£4.70 £3.92
21	MO322672151/0 Available to backorder	Washer	£1.84 £1.53
23	MO122943005/0 Available to backorder	Screw	£2.53 £2.11
24	MO124487997/0 In stock	Spring Clip	£1.55 £1.29
25	MO124487998/0 In stock	R Clip	£1.04 £0.87
26	MO125110267/0 Available to backorder	Brake Pedal Cover	£3.79 £3.16
27	MO25430236/0 Available to backorder	Brake Rod Spring	£1.55 £1.29
27	MO125430212/1 Available to backorder	Gear Brake Spring	£5.92 £4.93
28	MO125430220/0 In stock	Spring	£4.08 £3.40
29	MO125430226/0 Available to backorder	Spring	£2.24 £1.87
30	MO125510040/2 Available to backorder	Pin Bolt	£5.76 £4.80
31	MO325547049/0 Available to backorder	Axle Fixing Plate	£3.10 £2.58
32	MO325670008/1 In stock	Washer	£1.55 £1.29
33	MO325670011/0 Available to backorder	Washer	£1.55 £1.29
34	MO325774275/1 Available to backorder	Clamp	£3.52 £2.93
35	MO127034060/0 Available to backorder	Brake Control Rod	£32.32 £26.93
38	MO127045080/0 Available to backorder	Bush	£5.22 £4.35
39	MO127063020/0 Available to backorder	Cam	£1.55 £1.29
40	MO127158000/0 Available to backorder	Washer	£20.96 £17.47
41	MO127275000/0 Available to backorder	Rubber Grommet	£3.10 £2.58
42	MO127395050/1 Available to backorder	Knob	£2.94 £2.45
43	MO127430552/0 Available to backorder	Spring	£1.55 £1.29
44	MO127430560/0 Available to backorder	Clutch Spring	£15.28 £12.73
45	MO127510103/0 Available to backorder	Pin	£4.24 £3.53
46	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
47	MO327670053/0 Available to backorder	Washer	£1.55 £1.29
48	MO327734055/0 Available to backorder	Bracket	£2.94 £2.45
49	MO327772101/0 Available to backorder	Clamp Plate	£2.40 £2.00
50	MO327772103/0 Available to backorder	Clamp Plate	£2.11 £1.76
51	MO327772105/0 Available to backorder	Clamp Plate	£1.97 £1.64
52	MO182394508/0 Available to backorder	Knob	£8.38 £6.98
53	MO384001011/2 Available to backorder	Axle	£12.94 £10.78
54	MO384001015/1 Available to backorder	Axle	£46.48 £38.73
55	MO184207101/1 Available to backorder	Clutch Return Cable	£33.79 £28.16
56	MO384317101/0 Available to backorder	Speed Control Lever	£29.28 £24.40
57	MO384503001/0 Available to backorder	Brake Pedal Assembly	£23.65 £19.71
58	MO384773561/1 Available to backorder	Control Lever Bracket	£43.49 £36.24
59	MO384773563/0 Available to backorder	Lever	£6.32 £5.27
60	MO384773565/0 Available to backorder	Clutch Bracket Assembly	£16.82 £14.02
62	MO384773568/0 Available to backorder	Bracket	£37.79 £31.49
