HC 247 P - Oleo-Mac Hedge Trimmer Engine Diagram

HC 247 P - Oleo-Mac Hedge Trimmer Engine Diagram

Part No. hc_247_p_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

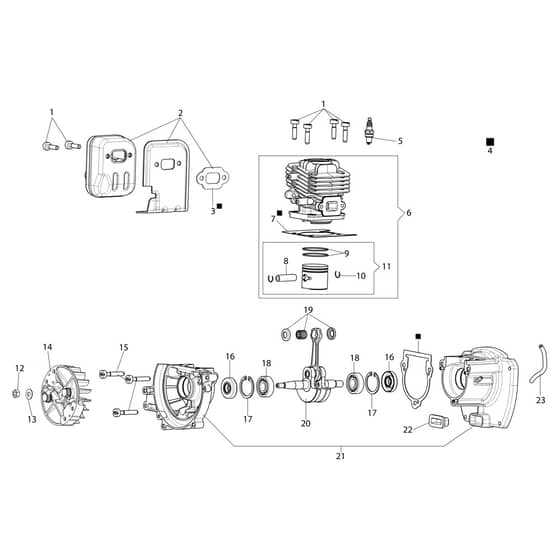

HC 247 P - Oleo-Mac Hedge Trimmer Engine Diagram

HC 247 P - Oleo-Mac Hedge Trimmer Engine Diagram

Description

Oleo-Mac HC 247 P Parts Diagram

Ref.		Img.	Part No.	Details
	1		EF3891048R Available to backorder	Screw		£2.27 £1.89
	2		EF58090096 Available to backorder	Muffler Assy		£47.04 £39.20
	3		EF61370634R Available to backorder	Gasket		£3.48 £2.90
	4		EF58090098 Available to backorder	Gasket Set		£5.04 £4.20
	5		5456 In stock	Spark Plug		£5.71 £4.76
	6		EF61370606A Available to backorder	Complete Cylinder Ø32		£188.04 £156.70
	7		EF58090036AR Available to backorder	Gasket		£2.08 £1.73
	9		EF61370575R Available to backorder	Piston Ring		£9.36 £7.80
	12		EF3912014R Available to backorder	Nut		£0.72 £0.60
	13		EF3819031R Available to backorder	Washer		£0.77 £0.64
	14		EF58090005AR Available to backorder	Flywheel		£48.12 £40.10
	16		EF3050042R Available to backorder	Seal Ring		£5.64 £4.70
	17		EF3025018R Available to backorder	Seeger		£2.00 £1.67
	18		EF3034029R Available to backorder	Bearing		£10.68 £8.90
	19		EF61370254 Available to backorder	Set Roller Cage And Washer		£9.12 £7.60
	20		EF58090033R Available to backorder	Crankshaft		£96.72 £80.60
	23		EF094600126 Available to backorder	Tube		£3.84 £3.20
