Hayter Spirit 41 Electric Push - 615D (615D260000001 - 615D260999999) - Upper Mainframe

Name: Hayter Spirit 41 Electric Push - 615D (615D260000001 - 615D260999999) - Upper Mainframe
SKU: spirit 41 electric push 615d upper mainframe-group
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Spirit 41 Electric Push - 615D (615D260000001 - 615D260999999) - Upper Mainframe

Description

Hayter Spirit 41 - Electric Push Mower - 615D

Serial No: 615D260000001 - 615D260999999

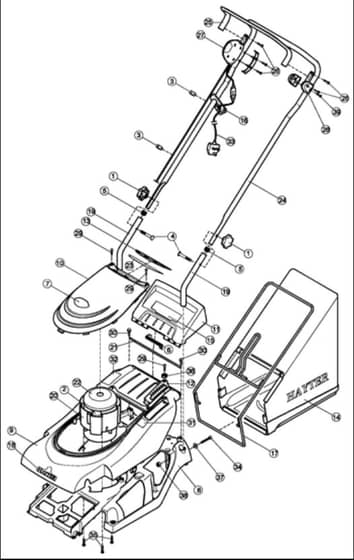

Upper Mainframe - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA480088 In stock	Knob-Handlebar	£5.48 £4.57
3	HA410037 In stock	Guide-Cable	£1.50 £1.25
4	HAHY226024 Available to backorder	Bolt-Handlebar	£1.64 £1.37
6	HA410030 Available to backorder	Spring-Deflector	£6.14 £5.12
9	HA111-1054 In stock	Upper Deck	£56.34 £46.95
10	HA111-0033 Available to backorder	Moulding Trim Electric	£53.54 £44.62
11	HA111-1043 Available to backorder	Moulding Rear Deflection	£29.40 £24.50
12	HA111-0040 Available to backorder	Plate-Hoc	£14.98 £12.48
14	HA111-0042 Available to backorder	Grass Bag	£42.96 £35.80
15	HA111-0084 Available to backorder	Decal Caution	£2.28 £1.90
16	HA100105 Available to backorder	Cleat-Cable	£4.04 £3.37
17	HA111-0045-03 Available to backorder	Frame-Grassbag	£53.38 £44.48
18	HA410087 In stock	Decal	£5.66 £4.72
19	HA111-0051-03 Available to backorder	Handlebars-Lower	£37.34 £31.12
20	HA111-0052 Available to backorder	Moulding-Mount. Electric Motor	£33.96 £28.30
21	HA111-0056 Available to backorder	Bar-Hinge	£2.94 £2.45

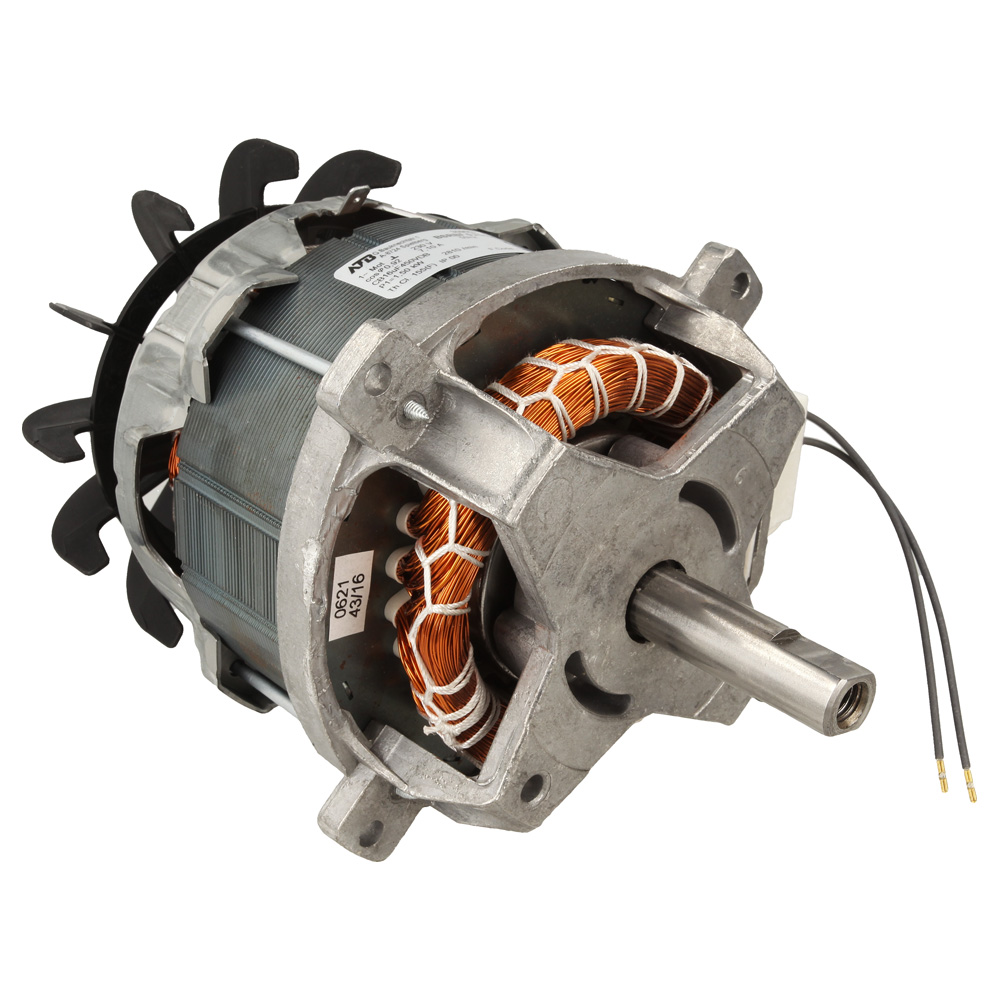

22	HA309052 Available to backorder	Motor-Induction. 1.5Kw	£195.96 £163.30
23	HA111-0075 Available to backorder	Vent Mesh Grille	£6.62 £5.52
24	HA111-0091 Available to backorder	Handlebars-Electric	£73.48 £61.23
25	HA134-2162 Available to backorder	Arm-Bail	£7.62 £6.35
26	HAHY100078 In stock	Screw	£1.68 £1.40

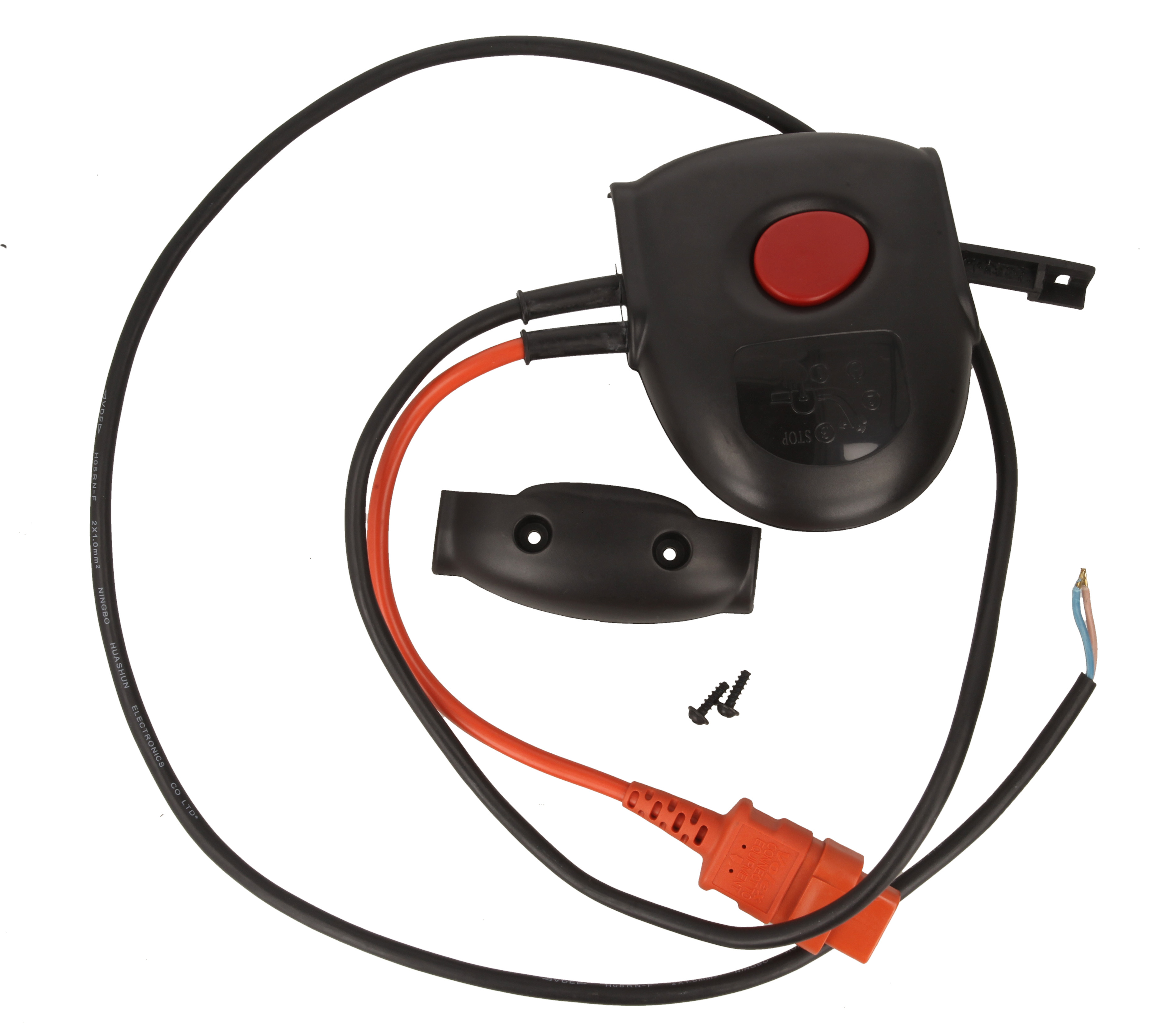

27	HA111-1841 In stock	Switch Assembly	£32.36 £26.97
28	HAHY100510 Available to backorder	Mount Bail Arm Asm	£7.04 £5.87
29	HA111-9903 In stock	Screw	£1.56 £1.30
30	HA09575 In stock	Screw-Taptite	£1.66 £1.38
31	HA320006 In stock	Decal-Hoc	£1.66 £1.38
33	HAHY100135 Available to backorder	Main Lead	£23.88 £19.90
34	HA111-0118 Available to backorder	Screw-Hsh	£0.47 £0.39
35	HA09787 Available to backorder	Screw-Taptite	£1.56 £1.30
36	HA111-0107 Available to backorder	Cup-Screw. Electric	£1.60 £1.33
38	HA09438 Available to backorder	Nut-Nyloc	£1.66 £1.38
