Hayter Scarifier SP36 - 110G (310000001 - 310999999) - Scarifier1

Description

Hayter Scarifier SP36 - 110G

Serial No: 310000001 - 310999999

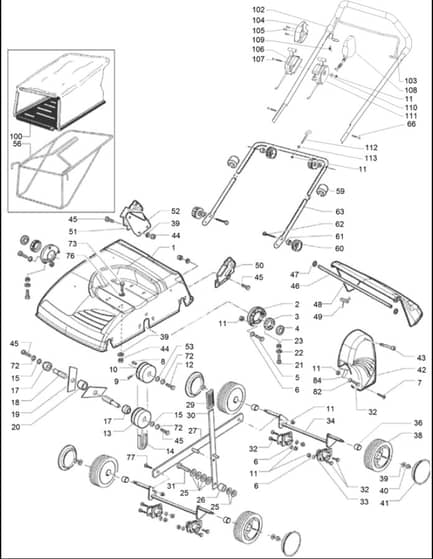

Scarifier1 - Parts Diagram

	Part No.	Details
1	HA111-4587 Available to backorder	Deck	£273.84 £228.20
3	HA111-7513 Available to backorder	Bearing Housing	£21.11 £17.59
4	HA111-4590 Available to backorder	Bearing	£27.40 £22.83
6	HA111-4592 Available to backorder	Plane Washer	£1.80 £1.50
7	HA111-4593 Available to backorder	Screw 3.9x19 Uni 6954	£1.66 £1.38
8	HA111-4594 Available to backorder	Key 3/16" x 3/16"x1 1/2"	£11.00 £9.17
9	HA111-4595 Available to backorder	Grano	£2.60 £2.17
10	HA111-8454 Available to backorder	Gear Pulley	£66.72 £55.60
11	HA111-4597 In stock	Pr. Torque Hex. Nutm6	£3.68 £3.07
12	HA111-4598 Available to backorder	Screw	£1.66 £1.38
13	HA111-4599 Available to backorder	Blade Shaft Pulley	£60.48 £50.40
14	HA111-4600 Available to backorder	Belt	£44.75 £37.29
15	HA111-4601 Available to backorder	Washer	£1.66 £1.38
17	HA111-4602 Available to backorder	Blade-Bearing Stand Off	£2.83 £2.36
18	HA111-4603 Available to backorder	Blade Holder Shaft	£70.32 £58.60
19	HA111-4604 Available to backorder	Blade	£7.26 £6.05
20	HA111-4605 Available to backorder	Blades Stand Off	£3.34 £2.78
21	HA111-4606 Available to backorder	Screw M6x45	£1.72 £1.43
22	HA111-4607 In stock	Washer M6 Uni 6592	£1.69 £1.41
23	HA111-4608 Available to backorder	Nut M6	£1.54 £1.28
25	HA111-4609 Available to backorder	Spring	£2.69 £2.24
26	HA111-4610 Available to backorder	Busshing	£6.97 £5.81
27	HA111-4611 Available to backorder	Axles Connecting Bar	£33.48 £27.90
30	HA111-4613 Available to backorder	Lever	£38.11 £31.76
32	HA111-4615 Available to backorder	Screw M6x16 Uni 5739	£6.56 £5.47
33	HA111-4616 Available to backorder	Axle Bushing	£6.35 £5.29
34	HA111-4617 Available to backorder	Axle	£54.60 £45.50
36	HA111-4618 Available to backorder	Stand Off	£5.98 £4.98
39	HA111-4620 Available to backorder	Bold Washer M8 Uni6592	£1.66 £1.38
40	HA111-4621 Available to backorder	Hex.Nut M8 Uni 5588	£1.66 £1.38
42	HA111-4623 Available to backorder	Belt Cover	£30.20 £25.17
43	HA111-4624 Available to backorder	Screw M6x25 Uni 5739	£1.66 £1.38
46	HA111-4627 Available to backorder	Flap Rod	£9.80 £8.17
47	HA111-4628 Available to backorder	Rod Cap	£1.66 £1.38
48	HA111-4629 Available to backorder	Grass Flap	£40.01 £33.34
49	HA111-4630 Available to backorder	Flap Spring	£9.19 £7.66
50	HA111-4631 Available to backorder	Left Handle Support	£14.81 £12.34
51	HA111-4632 Available to backorder	Right Handle Support	£14.81 £12.34
53	HA111-4634 Available to backorder	Plane Washer	£1.55 £1.29
56	HA111-4635 Available to backorder	Frame	£83.28 £69.40
60	HA111-4637 Available to backorder	Knob	£5.03 £4.19
61	HA111-4638 Available to backorder	Guard For Hand Hold	£1.69 £1.41
63	HA111-4641 Available to backorder	Lower Handle	£69.48 £57.90
66	HA111-4642 Available to backorder	Bolt M8x55	£1.55 £1.29
72	HA111-4643 Available to backorder	Star Washer	£1.66 £1.38
77	HA111-4646 Available to backorder	Screw M6x20 Uni5933	£1.66 £1.38
82	HA111-4647 Available to backorder	Washer	£200.04 £166.70
100	HA111-4649 Available to backorder	Grass Bag	£111.36 £92.80
103	HAH290239 Available to backorder	Arm-Bail	£42.14 £35.12
104	HA111-1816 Available to backorder	Box-Switch. Lh	£9.52 £7.93
106	HA111-4651 Available to backorder	Choke Control Box Assy	£67.08 £55.90
108	HA111-2054 Available to backorder	Opc Wire Loom Asm	£42.85 £35.71
109	HA111-1773 Available to backorder	Spring-Return	£1.32 £1.10
114	HAH295159 Available to backorder	Decal-Stop	£1.06 £0.88
115	HA410087 In stock	Decal	£6.24 £5.20
116	HA111-0308 Available to backorder	4mm Pre Ins. Socket	£2.38 £1.98
117	HA111-0258 Available to backorder	Cable-Black. 1.0mm Twhg	£200.04 £166.70
