Hayter Scarifier - 110J (316000101 - 317999999) - Upper Deck

Description

Hayter Scarifier - 110J

Serial No: 316000101 - 317999999

Upper Deck - Parts Diagram

	Part No.	Details
200	HA111-8370 Available to backorder	Green Deck	£200.04 £166.70

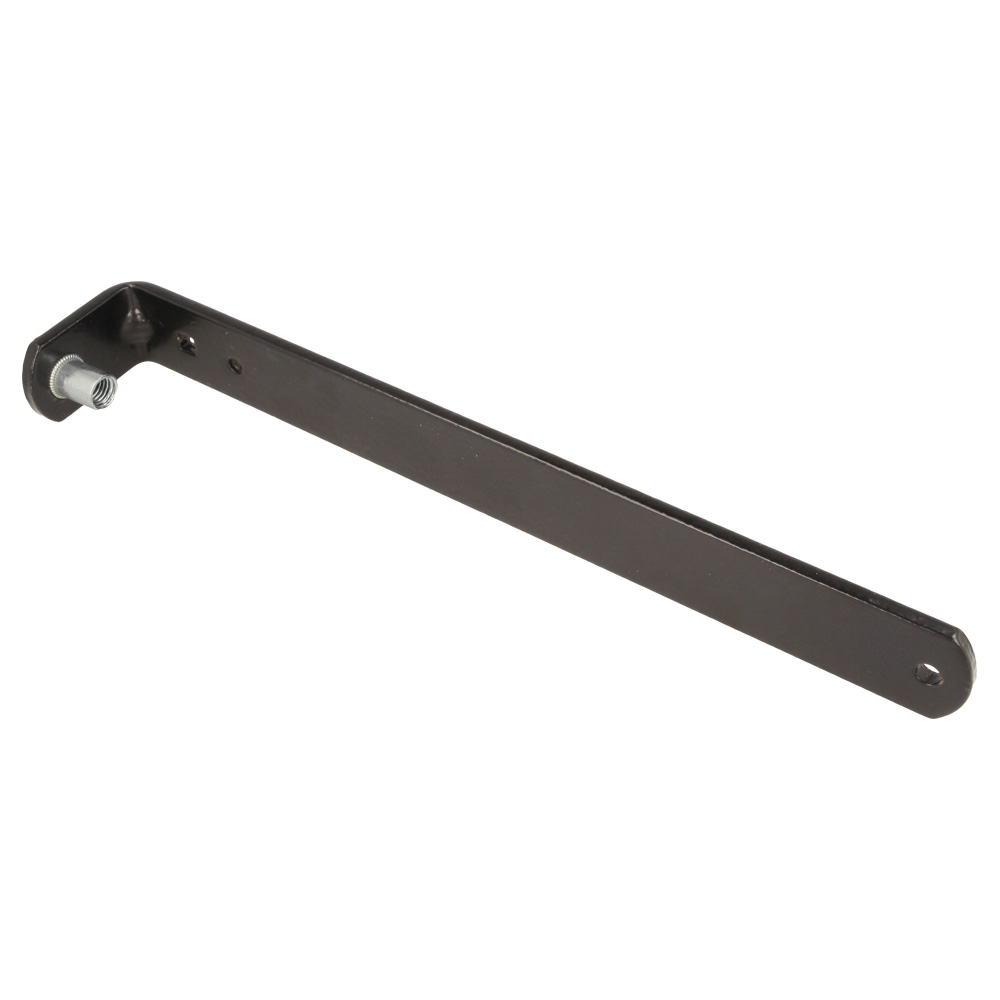

201	HA111-8373 Available to backorder	Black Lower Lifting Bar	£25.01 £20.84
202	HA111-8388 Available to backorder	Black Middle Lifting Bar	£25.01 £20.84
203	HA111-7526 Available to backorder	Side Protection	£200.04 £166.70
204	HA111-4617 Available to backorder	Axle	£54.60 £45.50
205	HA111-8372 Available to backorder	Black Lifting Axle Bar	£200.04 £166.70
206	HA111-4631 Available to backorder	Left Handle Support	£14.81 £12.34
207	HA111-4632 Available to backorder	Right Handle Support	£14.81 £12.34
208	HA111-8371 Available to backorder	Black Stop Height Adjustement	£9.40 £7.83
209	HA111-8387 Available to backorder	Height Setting Sticker	£200.04 £166.70
211	HA111-4616 Available to backorder	Axle Bushing	£6.35 £5.29

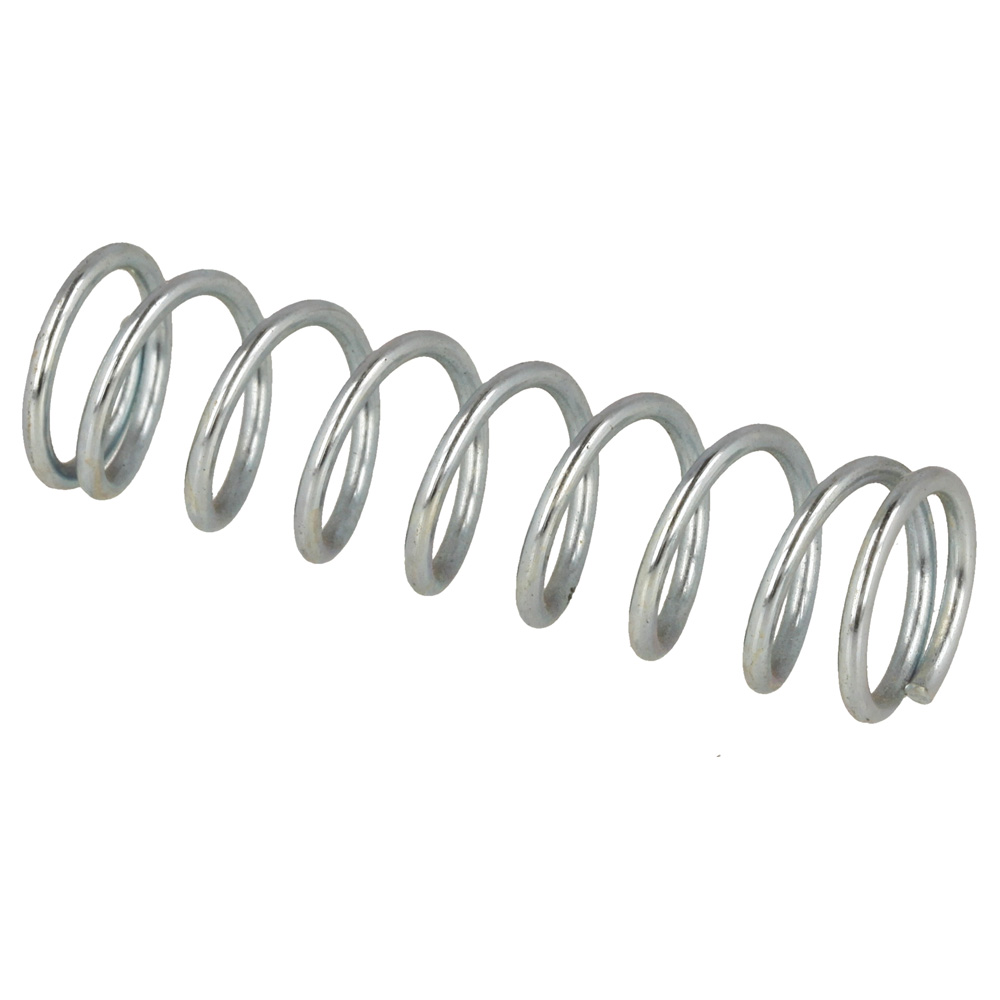

212	HA111-8375 Available to backorder	Height Adjust Spring	£3.86 £3.22

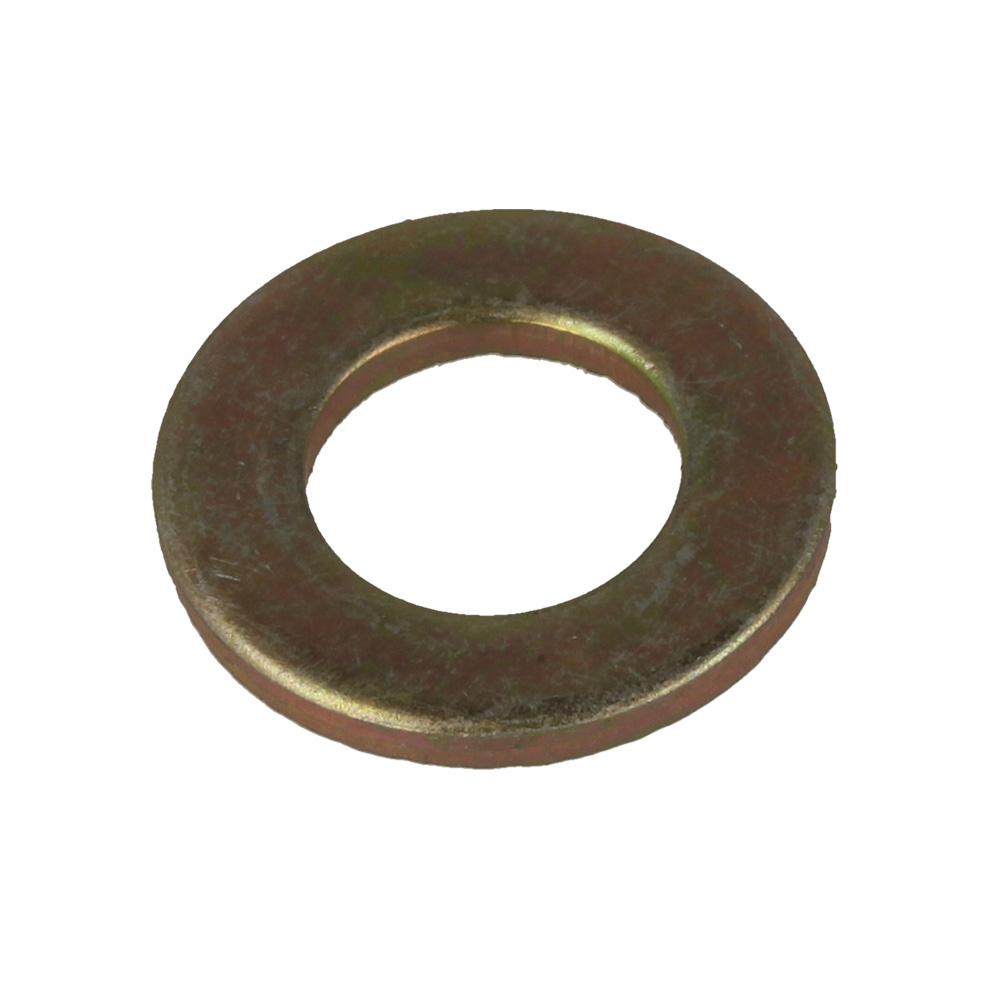

213	HA33095-00 Available to backorder	Washer-Flat	£0.43 £0.36
214	HA111-4592 Available to backorder	Plane Washer	£1.80 £1.50
215	HA09741 Available to backorder	Nut Flange	£1.46 £1.22
216	HA111-8384 Available to backorder	Screw Trcc 6 x 16	£0.85 £0.71
217	HA111-4646 Available to backorder	Screw M6x20 Uni5933	£1.66 £1.38
219	HA111-4615 Available to backorder	Screw M6x16 Uni 5739	£6.56 £5.47

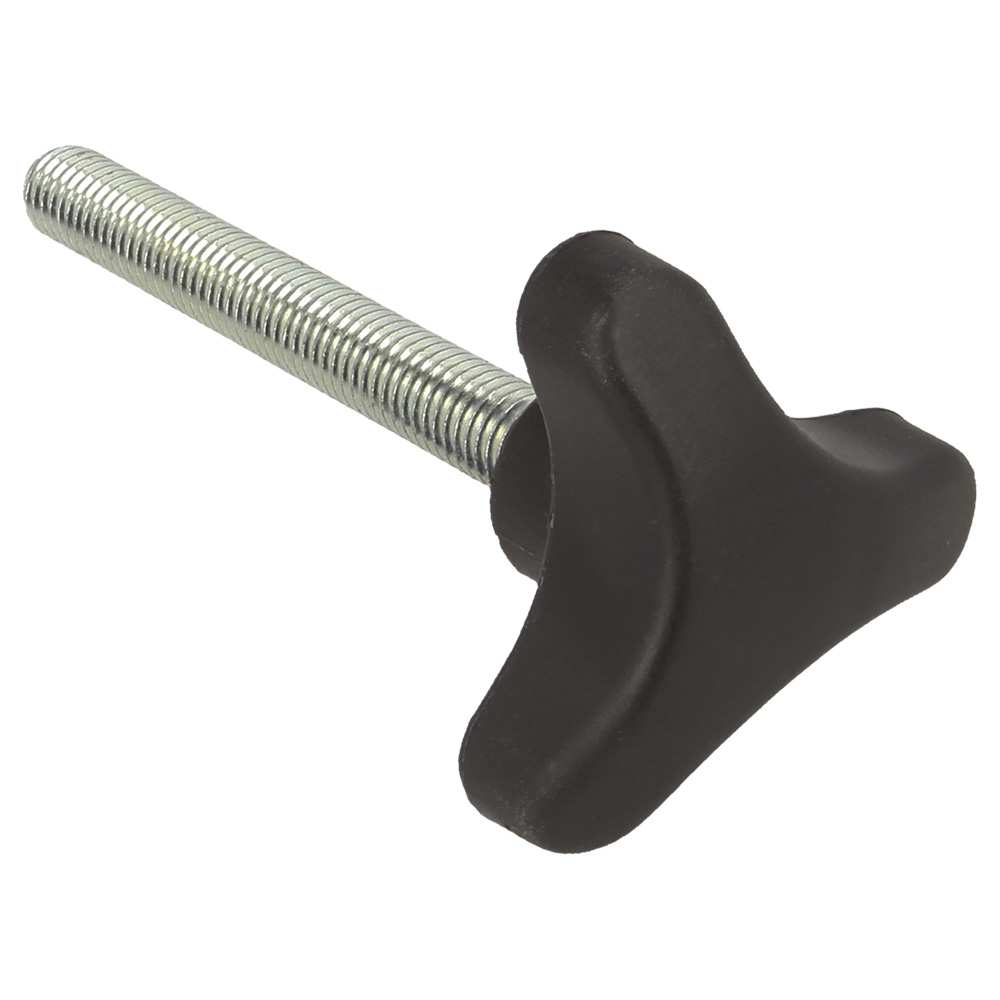

220	HA111-8374 Available to backorder	Height Level Adjustement M10	£7.55 £6.29
221	HA111-8385 Available to backorder	Knob M6	£6.97 £5.81

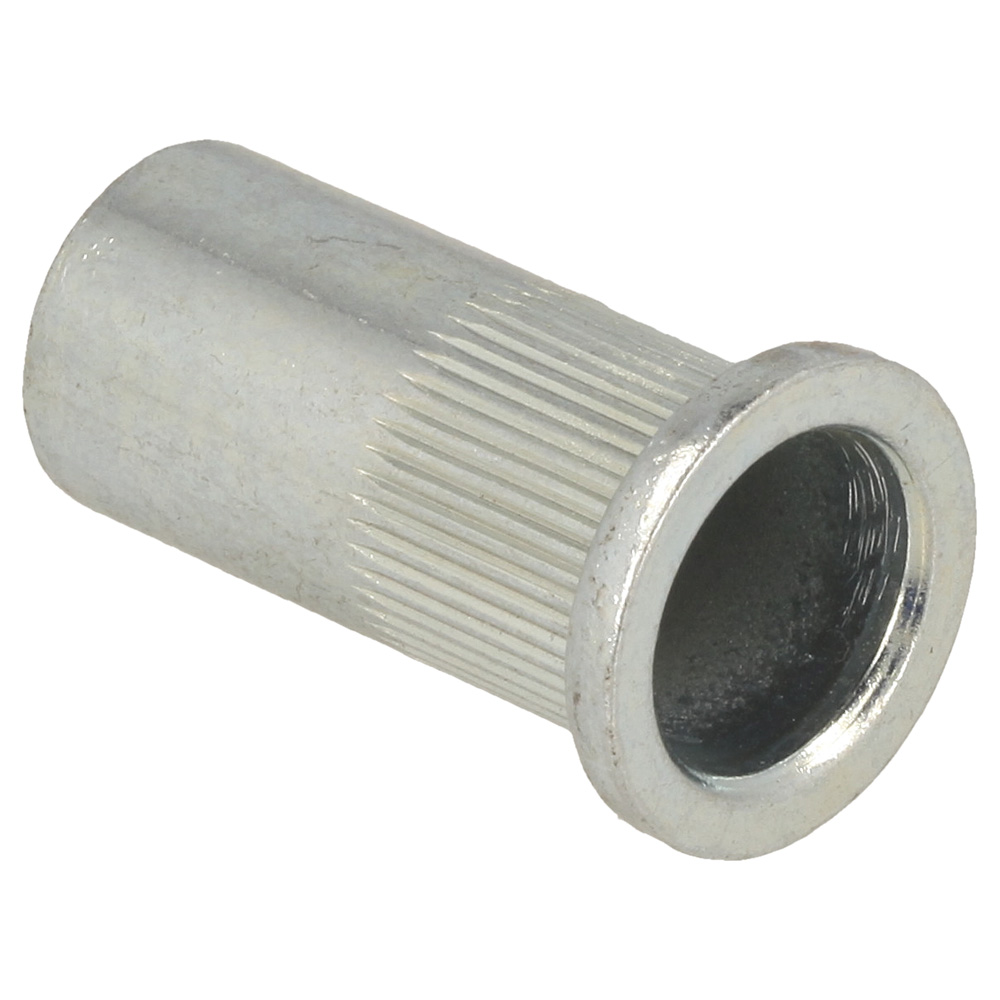

222	HA111-8376 Available to backorder	Insert M10	£3.31 £2.76
223	HA111-8386 Available to backorder	Tooth Lockwasher 6Z	£0.46 £0.38
224	HA111-7647 Available to backorder	Nut Flange	£200.04 £166.70
226	HA100.021.963 Available to backorder	Screw Flange	£200.04 £166.70
227	HA111-7646 Available to backorder	Screw Flange	£200.04 £166.70
300	HA111-8378 Available to backorder	Black Upper Handle	£58.72 £48.93
301	HAH290239 Available to backorder	Arm-Bail	£42.14 £35.12
302	HA111-8379 Available to backorder	Black Superior Lifting Bar	£28.80 £24.00
303	HA111-8389 Available to backorder	Black Lower Handle	£55.16 £45.97
304	HAH295159 Available to backorder	Decal-Stop	£1.06 £0.88
305	HA111-8381 Available to backorder	Handle Lift Height	£6.97 £5.81
306	HA111-8380 Available to backorder	Level Support	£5.21 £4.34
307	HA111-1816 Available to backorder	Box-Switch. Lh	£9.52 £7.93
308	HA111-2054 Available to backorder	Opc Wire Loom Asm	£42.85 £35.71
309	HA111-0308 Available to backorder	4mm Pre Ins. Socket	£2.38 £1.98
310	HA111-1773 Available to backorder	Spring-Return	£1.32 £1.10
311	HAHY3966 Available to backorder	Tie-Cable	£1.66 £1.38
312	HA111-4638 Available to backorder	Guard For Hand Hold	£1.69 £1.41

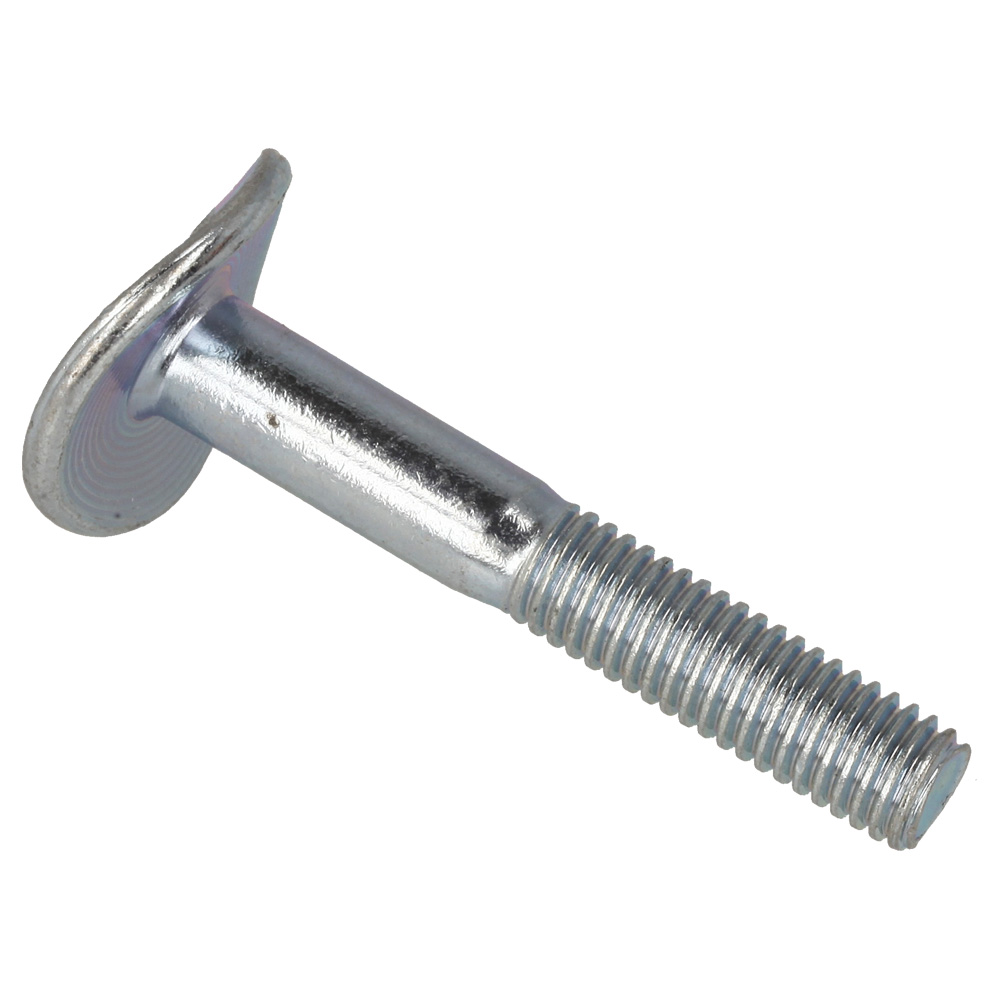

313	HA111-7644 Available to backorder	Screw Saddle	£4.39 £3.66
315	HA111-7645 Available to backorder	"Screw. Flange"	£1.72 £1.43
316	HAZDH1F050U Available to backorder	Setscrew	£200.04 £166.70
317	HA111-8382 Available to backorder	Cotter Pin 6 x 18	£2.05 £1.71
318	HA111-4637 Available to backorder	Knob	£5.03 £4.19
319	HA111-4597 In stock	Pr. Torque Hex. Nutm6	£3.68 £3.07
320	HA111-0100 Available to backorder	Screw	£1.55 £1.29
