Hayter Scarifier - 110J (315000001 - 315999999) - Blades Assembly

Name: Hayter Scarifier - 110J (315000001 - 315999999) - Blades Assembly
SKU: scarifier 110j03 blades assembly-group
Price: 1.38 GBP
Availability: InStock

Part No. scarifier 110j03 blades assembly-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter Scarifier - 110J (315000001 - 315999999) - Blades Assembly

Description

Hayter Scarifier - 110J

Serial No: 315000001 - 315999999

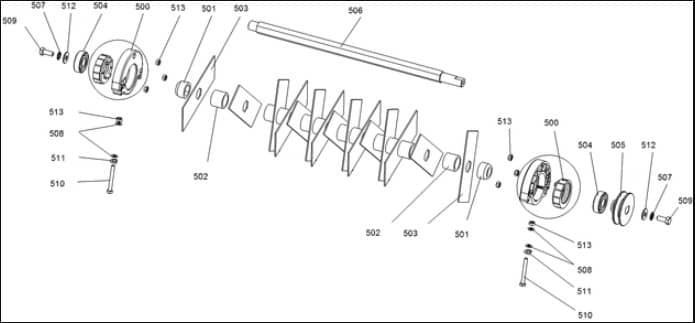

Blades Assembly - Parts Diagram

	Part No.	Details
500	HA111-7513 Available to backorder	Bushing For Blade Shaft+Bearing Housing	£21.11 £17.59
501	HA111-4602 Available to backorder	Blade-Bearing Stand Off	£2.83 £2.36
502	HA111-4605 Available to backorder	Blades Stand Off	£3.34 £2.78
503	HA111-4604 Available to backorder	Blade	£7.26 £6.05
504	HA111-4590 Available to backorder	Bearing	£27.40 £22.83
505	HA111-4599 Available to backorder	Blade Shaft Pulley	£60.48 £50.40
506	HA111-4603 Available to backorder	Blade Holder Shaft	£70.32 £58.60
507	HA111-4643 Available to backorder	Star Washer	£1.66 £1.38
508	HA111-4607 In stock	Washer M6 Uni 6592	£1.69 £1.41
510	HAZDH1F050U Available to backorder	Setscrew	£200.04 £166.70
511	HA09474 In stock	Washer-Spring	£1.72 £1.43
512	HA111-4601 Available to backorder	Washer	£1.66 £1.38
513	HA111-4597 In stock	Pr. Torque Hex. Nutm6	£3.68 £3.07
