Hayter RT380H - 135E (135E290000001 - 135E290999999) - Starter Assy B&S 31E777-0130-E1

Name: Hayter RT380H - 135E (135E290000001 - 135E290999999) - Starter Assy B&S 31E777-0130-E1
SKU: RT380H 135E starter assy bs 31e777 0130 e1-group
Price: 2.77 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter RT380H - 135E (135E290000001 - 135E290999999) - Starter Assy B&S 31E777-0130-E1

Description

Hayter RT380H - 135E

Serial No: 135E290000001 - 135E290999999

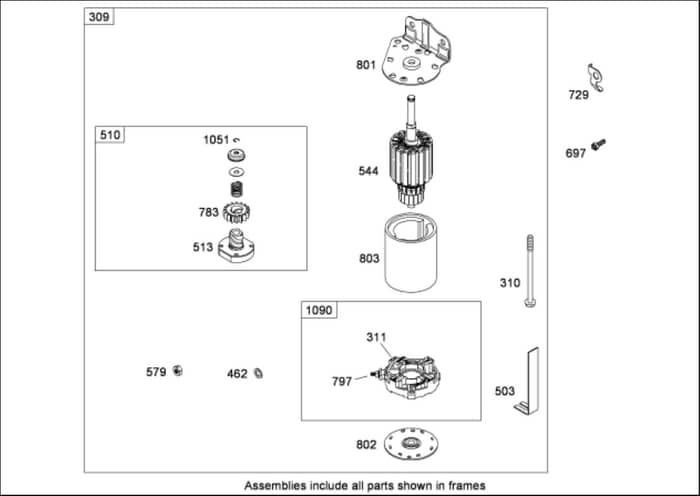

Starter Assy Briggs & Stratton 31E777-0130-E1 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
309	BP593934 Available to backorder	Motor-Starter	£174.48 £145.40
310	BP690323 Available to backorder	Bolt (Starter Motor)	£6.90 £5.75
311	BP497608 Available to backorder	Brush Set	£27.34 £22.78
462	BP691261 Available to backorder	Washer (Brush Retainer)	£4.42 £3.68
503	BP691532 Available to backorder	Strap-Starter	£8.58 £7.15
513	BP692024 Available to backorder	Clutch-Drive	£41.08 £34.23
579	BP691029 Available to backorder	Nut (Brush Retainer)	£3.32 £2.77
697	BP791680 Available to backorder	Screw (Drive Cap)	£5.40 £4.50
783	BP593935 Available to backorder	Gear-Pinion	£32.90 £27.42
801	BP691283 Available to backorder	Cap-Drive	£59.94 £49.95
802	BP691286 Available to backorder	Cap-End	£23.20 £19.33
1051	BP691265 Available to backorder	Ring-Retaining	£4.52 £3.77
1090	BP691293 Available to backorder	Retainer-Brush	£29.86 £24.88
