Hayter RT380H - 135E (135E290000001 - 135E290999999) - Hood - Tower Assy

Name: Hayter RT380H - 135E (135E290000001 - 135E290999999) - Hood - Tower Assy
SKU: RT380H 135E hood tower assy-group
Price: 0.4 GBP
Availability: InStock

Part No. RT380H 135E hood tower assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter RT380H - 135E (135E290000001 - 135E290999999) - Hood - Tower Assy

Description

Hayter RT380H - 135E

Serial No: 135E290000001 - 135E290999999

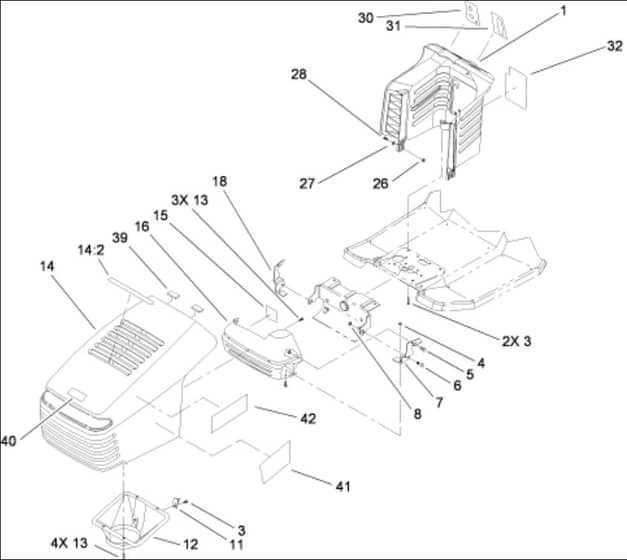

Hood - Tower Assy - Parts Diagram

	Part No.	Details
3	HA46-8091 Available to backorder	Screw-Hwh	£4.44 £3.70
4	HA3296-42 Available to backorder	Nut-Lock. Ni	£0.48 £0.40
5	HA321-2 Available to backorder	Screw-HH	£4.78 £3.98
6	HA28-0540 Available to backorder	Bolt-Shoulder	£14.83 £12.36
7	HA88-6050-03 Available to backorder	Bracket-Pivot. Lh Hood	£11.88 £9.90
8	HA3290-496 Available to backorder	Nut-Retainer	£7.40 £6.17
11	HA94-1984 Available to backorder	Latch-Pin	£10.14 £8.45
12	HA93-3891 Available to backorder	Duct-Air. Hood	£47.51 £39.59
16	HA93-3864-03 Available to backorder	Shield-Heat	£170.64 £142.20
18	HA88-6040-03 Available to backorder	Bracket-Pivot. Rh Hood	£18.31 £15.26
26	HA3296-29 Available to backorder	Nut-Lock. Ni	£2.59 £2.16
27	HA3256-23 Available to backorder	Washer-Plain	£0.48 £0.40
28	HA322-3 Available to backorder	Screw-HH	£0.97 £0.81
30	HA99-8141 Available to backorder	Decal-Ignition/Lights	£9.91 £8.26
31	HA92-5730 Available to backorder	Decal-Throttle/Choke	£16.97 £14.14
32	HA107-4922 Available to backorder	Decal-Danger	£27.94 £23.28
39	HA94-1980 Available to backorder	Foam-Hood	£5.32 £4.43
40	HA410087 In stock	Decal	£6.24 £5.20
142	HA114-3223 Available to backorder	Decal-Air Duct	£59.89 £49.91
