Hayter RT380H - 135E (135E290000001 - 135E290999999) - Governor Assy B&S 31E777-0130-E1

Name: Hayter RT380H - 135E (135E290000001 - 135E290999999) - Governor Assy B&S 31E777-0130-E1
SKU: RT380H 135E governor assy bs 31e777 0130 e1-group
Price: 3.4 GBP
Availability: InStock

Part No. RT380H 135E governor assy bs 31e777 0130 e1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter RT380H - 135E (135E290000001 - 135E290999999) - Governor Assy B&S 31E777-0130-E1

Description

Hayter RT380H - 135E

Serial No: 135E290000001 - 135E290999999

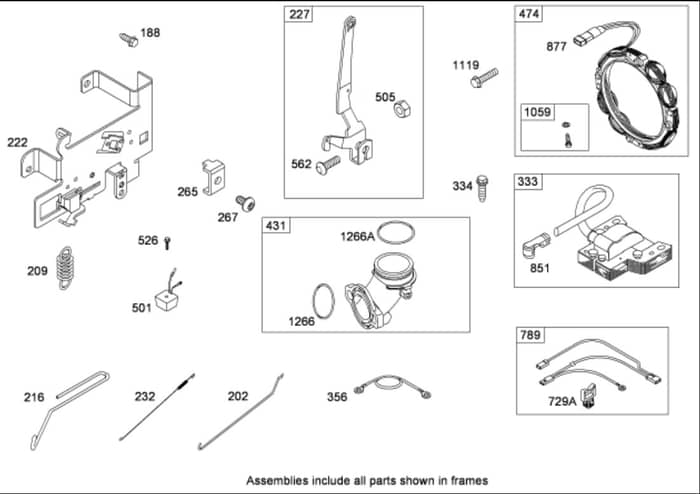

Governor Assy Briggs & Stratton 31E777-0130-E1 - Parts Diagram

	Part No.	Details
188	BP691693 Available to backorder	Screw (Control Bracket)	£4.99 £4.16
202	BP691841 Available to backorder	Link-Governor. Mechanical	£11.98 £9.98
209	BP796260 Available to backorder	Spring-Governor	£7.22 £6.02
216	BP691840 Available to backorder	Link-Choke	£6.72 £5.60
222	BP597209 In stock	Bracket-Control	£49.66 £41.38
227	BP691374 Available to backorder	Lever-Control. Governor	£25.69 £21.41
232	BP691842 In stock	Spring-Link. Governor	£11.22 £9.35
265	BP691024 Available to backorder	Clamp-Casing	£4.99 £4.16
333	BP591459 In stock	Armature-Magneto	£45.26 £37.72
334	BP691061 Available to backorder	Screw (Magneto Armature)	£4.84 £4.03
474	BP84012661 In stock	Alternator	£61.78 £51.48
501	BP794360 Available to backorder	Regulator	£50.75 £42.29
505	BP691251 Available to backorder	Nut (Governor Control Lever)	£5.16 £4.30
562	BP691119 Available to backorder	Bolt (Governor Control Lever)	£5.44 £4.53
789	BP692037 Available to backorder	Wiring-Harness	£21.94 £18.28
851	BP493880S In stock	Terminal-Spark Plug	£4.08 £3.40
1119	BP691183 Available to backorder	Screw (Alternator)	£4.84 £4.03
1266	BP692138 In stock	Seal-O Ring (Intake Elbow)	£8.58 £7.15
1266	BP691917 In stock	Seal-O Ring (Intake Elbow)	£5.57 £4.64
