Hayter RT380H - 135E (135E290000001 - 135E290999999) - Front Wheel - Steering Assy

Description

Hayter RT380H - 135E

Serial No: 135E290000001 - 135E290999999

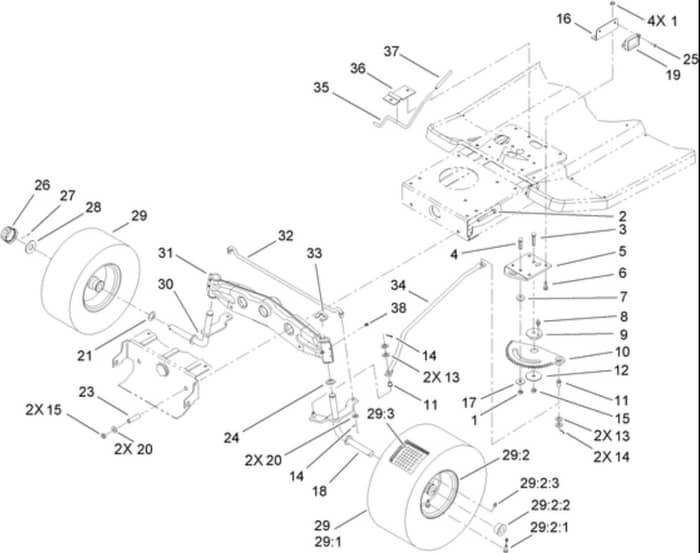

Front Wheel - Steering Assy - Parts Diagram

	Part No.	Details
1	HA3296-29 Available to backorder	Nut-Lock. Ni	£2.59 £2.16
2	HA323-13 In stock	Screw-HH	£2.06 £1.72
3	HA3231-4 Available to backorder	Screw-Carr	£4.45 £3.71
4	HA3230-3 Available to backorder	Screw-Carr	£0.91 £0.76
5	HA88-5130-03 Available to backorder	Bracket-Rack. Steering	£75.60 £63.00
6	HA3230-2 Available to backorder	Bolt-Carr	£0.80 £0.67
7	HA88-5010 Available to backorder	Spacer-Rack. Steering	£4.97 £4.14
8	HA302-26 Available to backorder	Fitting-Grease	£9.97 £8.31
9	HA88-4670 Available to backorder	Bushing-Eccentric	£34.94 £29.12
10	HA88-5200 Available to backorder	Rack-Steering	£128.76 £107.30
11	HA52-2891 Available to backorder	Bushing-Flanged. Nylon	£3.95 £3.29
12	HA111419 Available to backorder	Washer-Bearing	£45.19 £37.66
13	HA3256-25 Available to backorder	Washer-Flat	£0.43 £0.36
14	HA3272-10 Available to backorder	Pin-Cotter	£0.43 £0.36
15	HA3296-39 Available to backorder	Nut-Lock. Ni	£2.83 £2.36
16	HA99-2956-03 Available to backorder	Bracket-Module	£18.31 £15.26
17	HA5-4460 Available to backorder	Washer-Pivot	£10.63 £8.86
18	HA92-7890-03 Available to backorder	Lh Spindle Asm	£273.72 £228.10
19	HA99-3701 Available to backorder	Module-Clutch	£201.00 £167.50
20	HA3256-24 Available to backorder	Washer-Flat	£0.48 £0.40
23	HA88-5470 Available to backorder	Spacer	£21.62 £18.02
24	HA3-6498 Available to backorder	Washer-Thrust	£7.84 £6.53
25	HA9266714 Available to backorder	Screw-Hwh	£1.22 £1.02

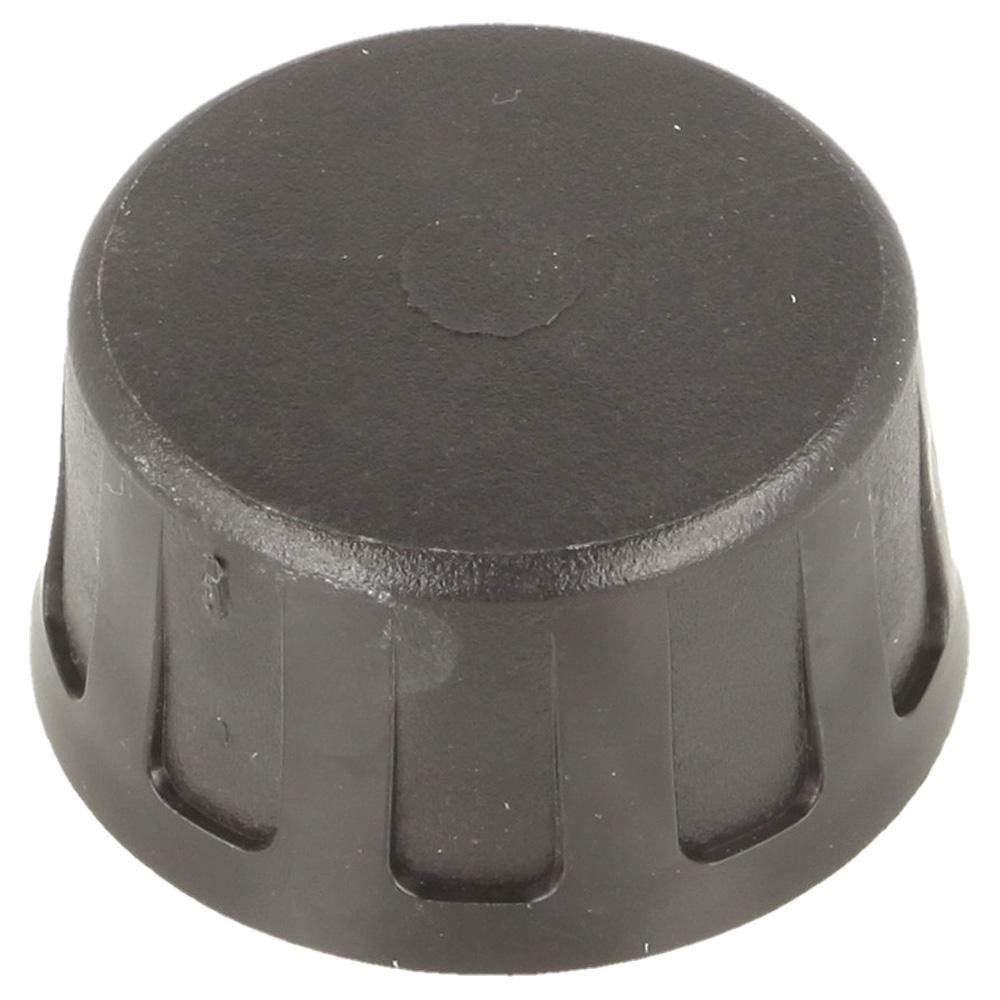

26	HA61-9780 Available to backorder	Cap-Hub	£12.14 £10.12
27	HA3272-12 Available to backorder	Pin-Cotter	£0.43 £0.36
28	HA28-2480 Available to backorder	Washer-Plain	£6.80 £5.67
30	HA92-7889-03 Available to backorder	Rh Spindle Asm	£204.12 £170.10
31	HA99-6844-03 Available to backorder	Axle-Front	£418.75 £348.96
32	HA88-5380 Available to backorder	Tie Rod-Steering	£51.17 £42.64
33	HA32151-48 Available to backorder	E-Ring	£1.74 £1.45
34	HA88-4830 Available to backorder	Link-Drag	£93.36 £77.80
35	HA88-5510 Available to backorder	Rod-Brake. Parking	£18.54 £15.45
36	HA88-5520-03 Available to backorder	Bracket-Parking Brake	£9.06 £7.55
37	HA88-0890 Available to backorder	Grip-Brake. Parking	£4.72 £3.93
38	HA302-5 Available to backorder	Fitting-Grease	£1.01 £0.84
291	HA99-2988 Available to backorder	Tire	£208.92 £174.10
292	HA99-6829 Available to backorder	Rim	£310.45 £258.71
293	HA232-39 Available to backorder	Tube-Inner	£36.77 £30.64
290201	HA5108 Available to backorder	Stem-Valve	£10.80 £9.00
290202	HA110513 In stock	Bearing-Wheel	£25.99 £21.66
