Hayter RT380H - 135E (135E290000001 - 135E290999999) - Cylinder Assy B&S 31E777-0130-E1

Name: Hayter RT380H - 135E (135E290000001 - 135E290999999) - Cylinder Assy B&S 31E777-0130-E1
SKU: RT380H 135E cylinder assy bs 31e777 0130 e1-group
Price: 3.52 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter RT380H - 135E (135E290000001 - 135E290999999) - Cylinder Assy B&S 31E777-0130-E1

Description

Hayter RT380H - 135E

Serial No: 135E290000001 - 135E290999999

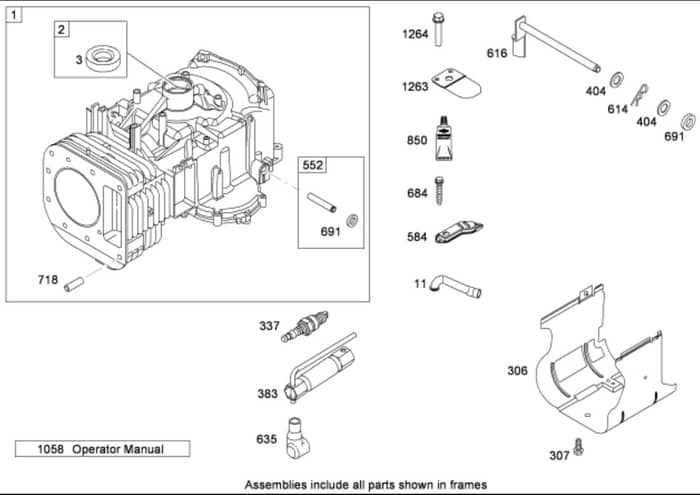

Cylinder Assy Briggs & Stratton 31E777-0130-E1 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details

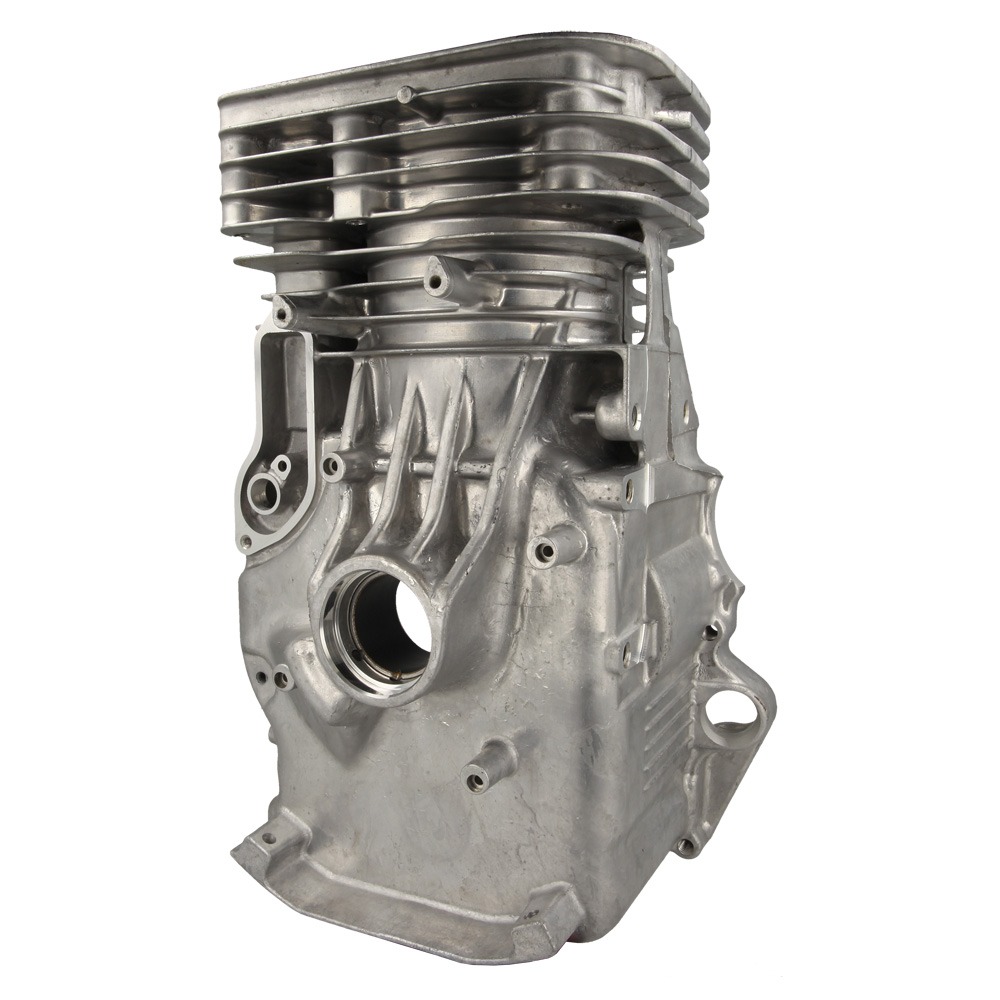

1	BP796010 Available to backorder	Cylinder Asm	£374.40 £312.00
2	BP797673 Available to backorder	Bushing And Seal Kit (Magneto Side)	£27.44 £22.87
3	BP391086S Available to backorder	Seal-Oil (Magneto Side)	£5.00 £4.17
11	BP794683 In stock	Tube-Breather	£11.06 £9.22
307	BP691003 Available to backorder	Screw (Cylinder Shield)	£4.68 £3.90
337	BP691043 In stock	Spark Plug	£7.16 £5.97
383	BP89838S Available to backorder	Wrench-Spark Plug	£8.50 £7.08
404	BP691691 Available to backorder	Washer (Governor Crank)	£4.22 £3.52
552	BP697144 Available to backorder	Bushing-Crank. Governor	£11.58 £9.65
584	BP794682 Available to backorder	Cover-Passage. Breather	£7.34 £6.12
614	BP691620 Available to backorder	Pin-Cotter	£4.82 £4.02
616	BP692012 Available to backorder	Crank-Governor	£14.76 £12.30
635	BP691909 Available to backorder	Boot-Spark Plug	£5.66 £4.72
691	BP692407 Available to backorder	Seal-Shaft. Governor	£8.78 £7.32
718	BP690959 Available to backorder	Pin-Locating	£5.26 £4.38
1263	BP697124 In stock	Reed-Breather	£6.18 £5.15
