Hayter RT380H - 135E (135E290000001 - 135E290999999) - Crankshaft Assy B&S 31E777-0130-E1

Name: Hayter RT380H - 135E (135E290000001 - 135E290999999) - Crankshaft Assy B&S 31E777-0130-E1
SKU: RT380H 135E crankshaft assy bs 31e777 0130 e1-group
Price: 3 GBP
Availability: InStock

Part No. RT380H 135E crankshaft assy bs 31e777 0130 e1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hayter RT380H - 135E (135E290000001 - 135E290999999) - Crankshaft Assy B&S 31E777-0130-E1

Description

Hayter RT380H - 135E

Serial No: 135E290000001 - 135E290999999

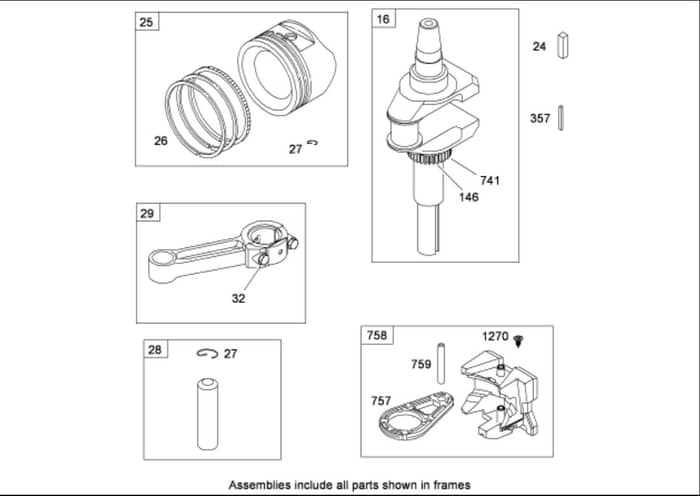

Crankshaft Assy Briggs & Stratton 31E777-0130-E1 - Parts Diagram

	Part No.	Details

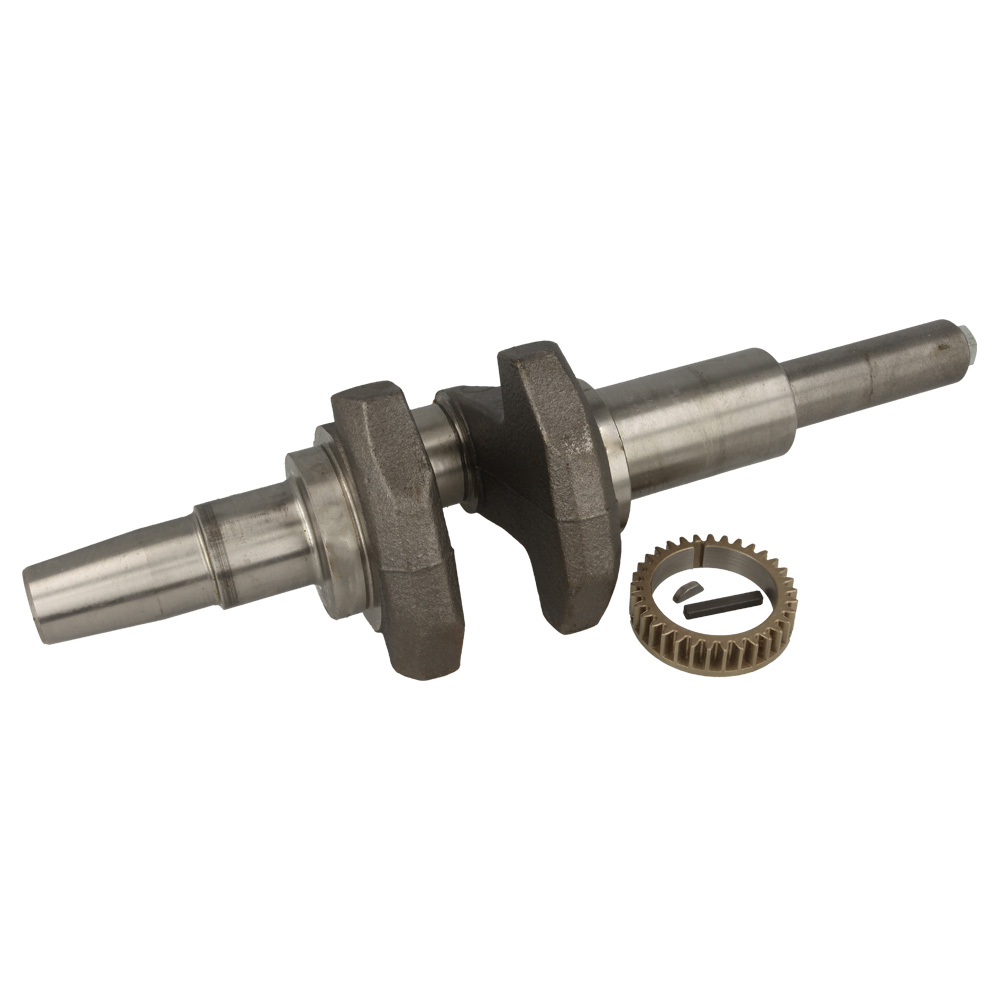

16	BP596006 Available to backorder	Crankshaft	£163.80 £136.50
24	BP222698S In stock	Key-Flywheel	£3.60 £3.00
25	BP84011097 Available to backorder	Piston Asm (Standard)	£58.31 £48.59
25	BP594540 Available to backorder	Piston Asm (.020 Oversize)	£94.44 £78.70
27	BP698469 Available to backorder	Lock-Pin. Piston	£6.94 £5.78
29	BP794122 Available to backorder	Rod-Connecting (Standard)	£73.44 £61.20
32	BP791118 Available to backorder	Screw (Connecting Rod)	£5.38 £4.48
146	BP691639 Available to backorder	Key-Timing	£5.17 £4.31
357	BP691483 Available to backorder	Key–Pulley. Drive	£6.60 £5.50
741	BP697128 Available to backorder	Gear-Timing	£21.40 £17.83

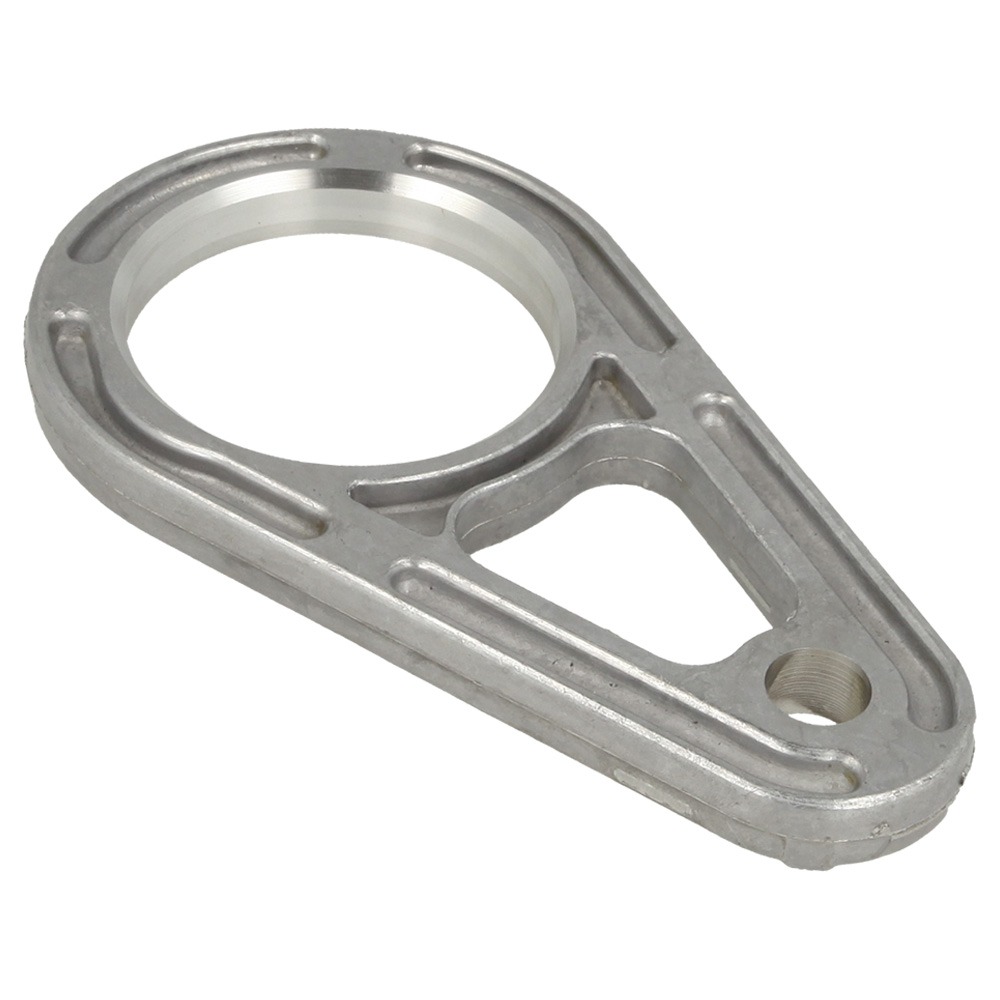

757	BP793242 Available to backorder	Link-Counterweight	£27.71 £23.09
1270	BP793243 Available to backorder	Plug-Counterweight. A V S	£7.06 £5.88
