Hayter RT380H - 135E (135E280000001 - 135E280999999) - Hydro Transaxle Control Assy

Hayter RT380H - 135E (135E280000001 - 135E280999999) - Hydro Transaxle Control Assy
Hayter RT380H - 135E (135E280000001 - 135E280999999) - Hydro Transaxle Control Assy

Description

Hayter RT380H - 135E

Serial No: 135E280000001 - 135E280999999

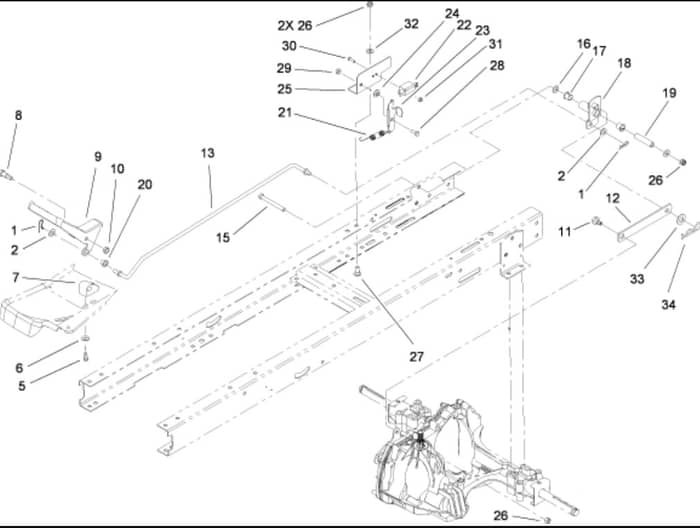

Hydro Transaxle Control Assy - Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Pin-Cotter HA1-806003
Pin-Cotter
 Out of stock
£1.22 £1.02

  2 Washer-Flat HA3256-38
Washer-Flat
 Out of stock
£0.61 £0.51

  6 Washer-Flat HA3256-22
Washer-Flat
 Out of stock
£0.48 £0.40

  7 Block-Pivot HA88-4690
Block-Pivot
 Out of stock
£15.58 £12.98

  8 Screw-Shoulder. HH HA23-0310
Screw-Shoulder. HH
 Out of stock
£24.88 £20.73

  9 Pedal-Control. Speed HA99-6120-05
Pedal-Control. Speed
 Out of stock
£27.88 £23.23

  10 Nut-Lock. Ni HA121-4600
Nut-Lock. Ni
 Out of stock
£1.18 £0.98

  11 Bolt-Shoulder HA37-8770
Bolt-Shoulder
 Out of stock
£22.44 £18.70

  12 Link-Control. Speed HA99-6833
Link-Control. Speed
 Out of stock
£24.02 £20.02

  13 Rod-Control. Speed HA99-6839
Rod-Control. Speed
 Out of stock
£69.24 £57.70

  15 Screw-HH HA322-14
Screw-HH
 Out of stock
£2.93 £2.44

  16 Washer-Flat HA3256-2
Washer-Flat
 Out of stock
£0.50 £0.42

  17 Bushing-Nyliner HA256-257
Bushing-Nyliner
 Out of stock
£4.15 £3.46

  18 Pivot Asm HA99-6835-03
Pivot Asm
 Out of stock
£61.44 £51.20

  19 Spacer-Pivot HA99-6832
Spacer-Pivot
 Out of stock
£17.51 £14.59

  20 Bushing-Flanged HA99-6121
Bushing-Flanged
 Out of stock
£3.91 £3.26

  21 Spring-Extension HA99-6805
Spring-Extension
 Out of stock
£19.38 £16.15

  24 Washer-Stepped HA99-6808
Washer-Stepped
 Out of stock
£1.63 £1.36

  26 Nut-Lock. Ni HA3296-29
Nut-Lock. Ni
 Out of stock
£2.58 £2.15

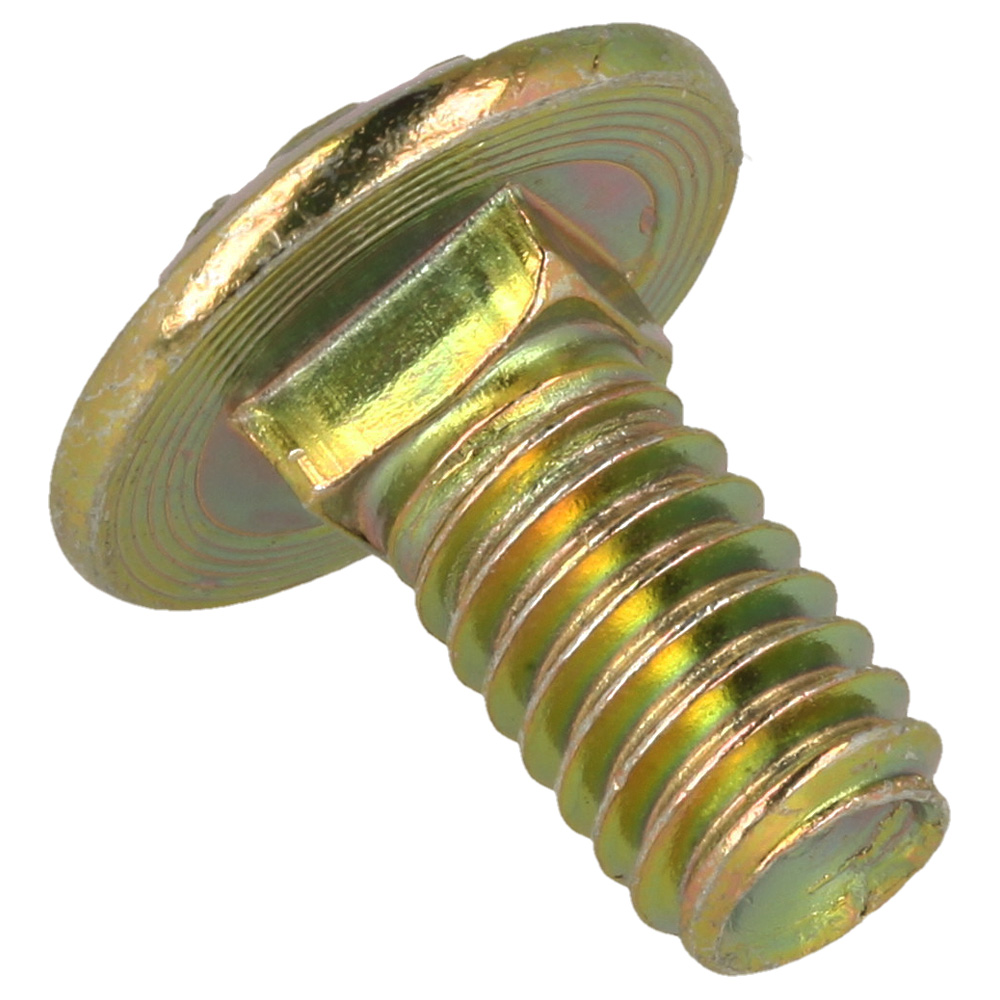

  27 Screw-Carr HA3230-18
Screw-Carr
 Out of stock
£4.80 £4.00

  28 Screw-HHf HA99-6810
Screw-HHf
 Out of stock
£3.49 £2.91

  29 Nut-Lock. Ni HA3296-42
Nut-Lock. Ni
 Out of stock
£0.46 £0.38

  30 Screw-Shh HA3290-392
Screw-Shh
 Out of stock
£1.37 £1.14

  31 Nut-Lock HA3296-1
Nut-Lock
 Out of stock
£1.74 £1.45

  32 Washer-Plain HA3256-23
Washer-Plain
 Out of stock
£2.46 £2.05

  33 Washer-Flat HA3256-26
Washer-Flat
 Out of stock
£0.50 £0.42

  34 Pin-Hair HA9335054
Pin-Hair
 Out of stock
£1.69 £1.41


Description

Hayter RT380H - 135E

Serial No: 135E280000001 - 135E280999999

Hydro Transaxle Control Assy - Parts Diagram
