Hayter RT380H - 135E (135E280000001 - 135E280999999) - Frame - Body Assy

Part No. RT380H 135E01 frame body assy-group
Hayter RT380H - 135E (135E280000001 - 135E280999999) - Frame - Body Assy
Hayter RT380H - 135E (135E280000001 - 135E280999999) - Frame - Body Assy

Description

Hayter RT380H - 135E

Serial No: 135E280000001 - 135E280999999

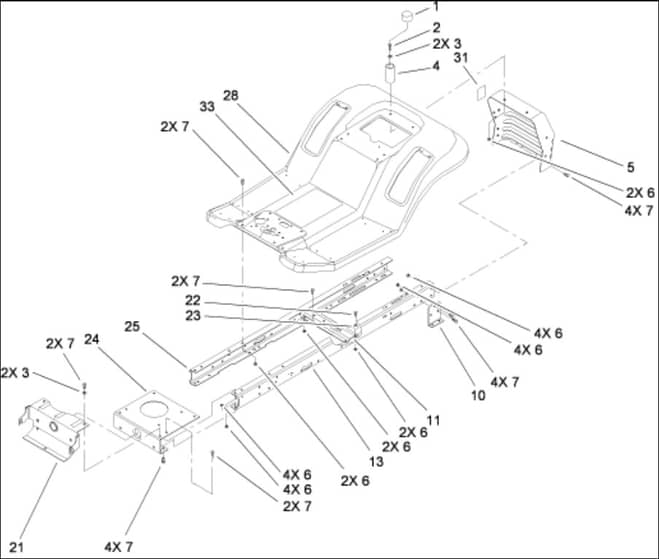

Frame - Body Assy - Parts Diagram

Ref. Img. Part No. Details
  1 Cap-Protector
Cap-Protector
HA701178
Available to backorder
Cap-Protector
£2.96 £2.47

  2 Screw-HH
Screw-HH
HA322-5
Available to backorder
Screw-HH
£0.58 £0.48

  3 Washer-Plain
Washer-Plain
HA3256-23
Available to backorder
Washer-Plain
£0.48 £0.40

  4 Spring-Compression
Spring-Compression
HA88-6220
Available to backorder
Spring-Compression
£49.92 £41.60

  5 Support-Seat/Rear Hitch
Support-Seat/Rear Hitch
HA99-2957-03
Available to backorder
Support-Seat/Rear Hitch
£254.76 £212.30

  6 Nut-Lock. Ni
Nut-Lock. Ni
HA3296-29
Available to backorder
Nut-Lock. Ni
£2.59 £2.16

  7 Screw-HH
Screw-HH
HA322-3
Available to backorder
Screw-HH
£0.97 £0.81

  10 Bracket-Transaxle. Mounting
Bracket-Transaxle. Mounting
HA88-5260-03
Available to backorder
Bracket-Transaxle. Mounting
£19.97 £16.64

  11 Bracket-Idler Pivot
Bracket-Idler Pivot
HA88-4620-03
Available to backorder
Bracket-Idler Pivot
£26.54 £22.12

  13 Rail-Frame. Lh
Rail-Frame. Lh
HA99-2958-03
Available to backorder
Rail-Frame. Lh
£164.16 £136.80

  21 Support-Axle. Front
Support-Axle. Front
HA110-8636-03
Available to backorder
Support-Axle. Front
£94.92 £79.10

  22 Screw-HH
Screw-HH
HA322-12
Available to backorder
Screw-HH
£1.54 £1.28

  23 Spacer
Spacer
HA88-5470
Available to backorder
Spacer
£21.62 £18.02

  24 Plate-Mounting. Engine
Plate-Mounting. Engine
HA88-4630-03
Available to backorder
Plate-Mounting. Engine
£69.60 £58.00

  25 Rail-Frame. Rh
Rail-Frame. Rh
HA99-2959-03
Available to backorder
Rail-Frame. Rh
£164.16 £136.80

  31 Decal-Valve. Dump
Decal-Valve. Dump
HA100-7449
Available to backorder
Decal-Valve. Dump
£25.54 £21.28

  33 Decal-Instruction. Safety
Decal-Instruction. Safety
HA114-3236
Available to backorder
Decal-Instruction. Safety
£200.04 £166.70


Description

Hayter RT380H - 135E

Serial No: 135E280000001 - 135E280999999

Frame - Body Assy - Parts Diagram
